5. Handling and Operation
5-4

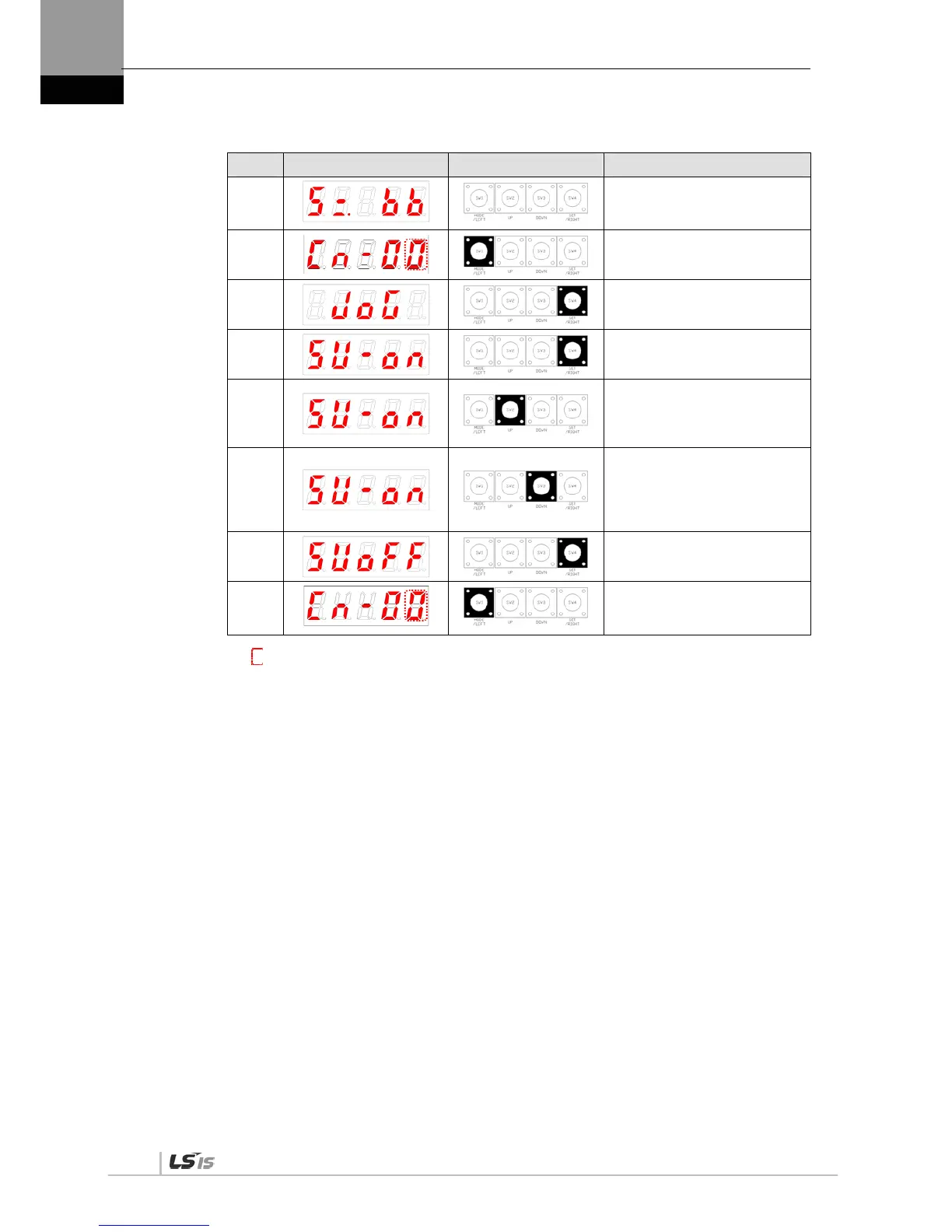

[Example of handling manual JOG operation]
Order Loader Displays Keys to Use What to Do
1
Displays the speed control mode
with main power and control
power permitted.
2
Press [MODE] to move to [Cn-
00].
3
Press [SET] to enter manual
JOG operation.
4
Press [SET] to turn on the servo.
5
Press and hold [UP] when the
servo is on and the motor turns
forward (CCW). Lift your hand
off the key and the motor stops.
6
Press and hold [DOWN] when
the servo is on and the motor
turns reverse (CW). Lift your
hand off the key and the motor
stops.
7
Press [SET] and the servo
changes to OFF.
8
Press [MODE] for a second and
you return to the parameter
screen [Cn-00].
※ “ ” indicates flickering.
