7. Product Specifications
7-42
FC06A,FC05D 154.5(195) 114.5(155) 79(78.5) 19 -0.021 6 6 3.5 2.18(3.22)
FC08A,FC06D 172.5(213) 132.5(173) 97(96.5) 19 -0.021 6 6 3.5 2.72(3.76)
FC10A,FC07D 190.5(231) 150.5(191) 115(114.5) 19 -0.021 6 6 3.5 3.30(4.34)
NOTE 3) Use DC power (24V) to operate the brake.
NOTE 4) The sizes in parentheses apply when attached to the brakes.

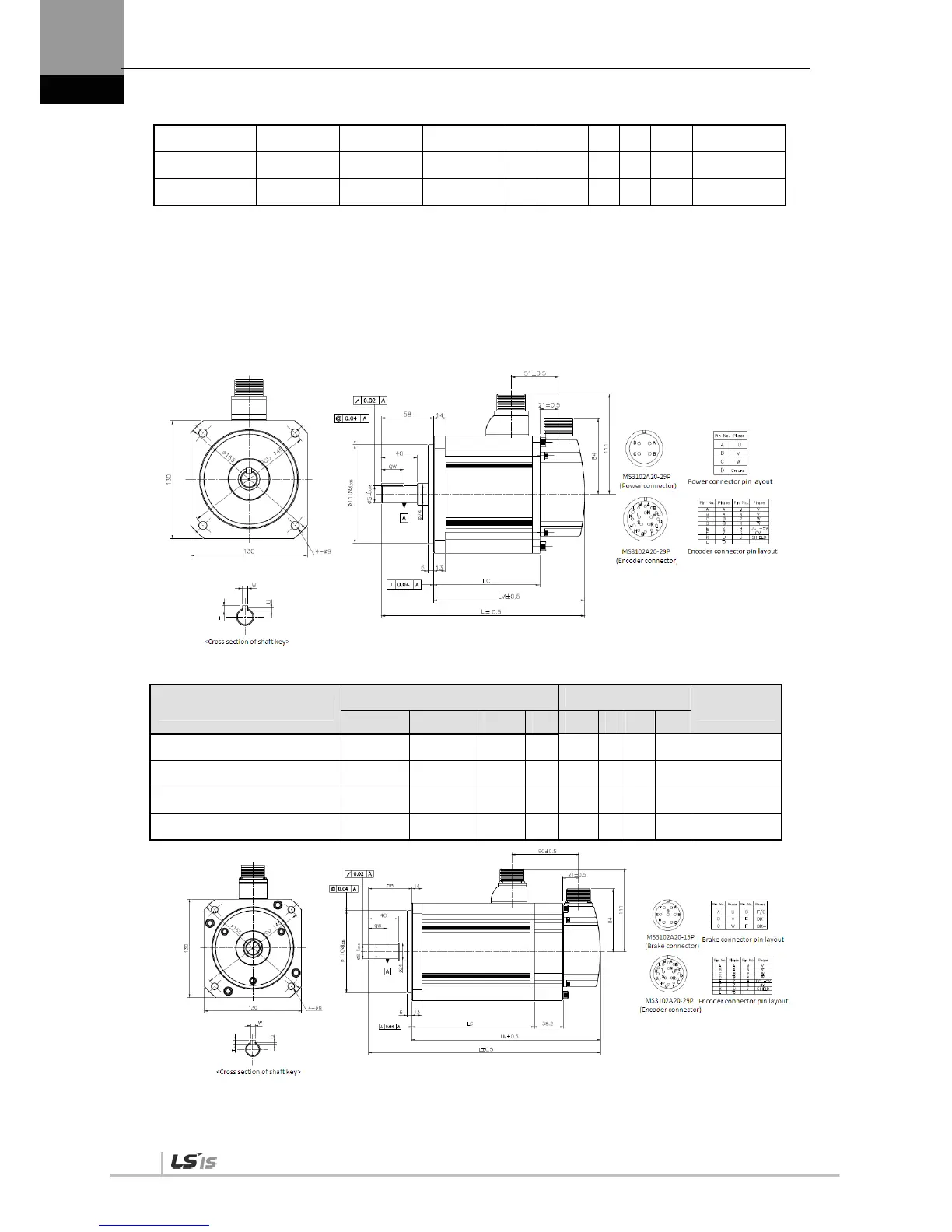

FE Series | XML-FE09A, FE15A, FE22A, FE30A, FE06D, FE11D,
FE16D, FE22D, FE03M, FE06M, FE09M, FE12M, FE05G, FE09G,
FE13G, FE17G
<Standard>
Name
External Dimensions
Key Dimensions
Weight(kg)
L LM LC S QW T W U
FE09A,FE06D,FE05G,FE03M 197.3 139.3 89.8 19 25 5 5 3 5.04
FE15A,FE11D,FE09G,FE06M 217.3 159.3 109.8 19 25 5 5 3 6.74
FE22A,FE16D,FE13G,FE09M 237.3 179.3 129.8 22 25 6 6 3.5 8.48
FE30A,FE22D,FE17G,FE12M 255.3 197.3 147.8 24 36 7 8 4 10.05
