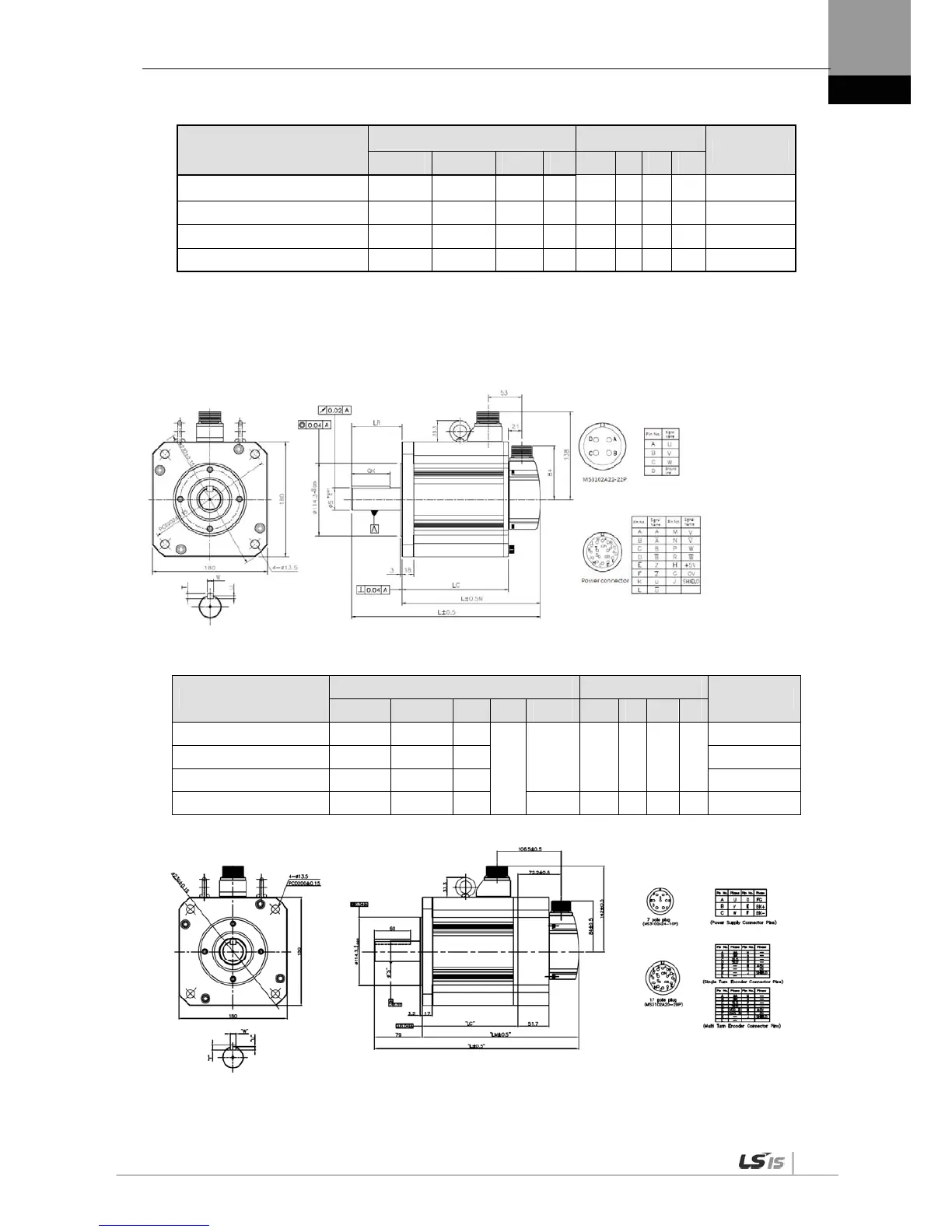

7. Product Specifications
7-43
Name
External Dimensions
Key Dimensions
Weight(kg)
L LM LC S QW T W U
FE09A,FE06D,FE05G,FE03M 235.3 177.3 89.6 19 25 5 5 3 6.58
FE15A,FE11D,FE09G,FE06M 255.3 197.3 109.6 19 25 5 5 3 8.28
FE22A,FE16D,FE13G,FE09M 275.3 217.3 129.6 22 25 6 6 3.5 10.02
FE30A,FE22D,FE17G,FE12M 293.3 235.3 147.6 24 36 7 8 4 11.59
NOTE 1) Use DC power (24V) to operate the brake.
 FF Series | XML-FF30A, FF50A, FF22D, FF35D, FF20G, FF30G,
FF44G, FF12M, FF20M, FF30M, FF44M
<Standard>
Name
External Dimensions Key Dimensions
Weight(kg)
L LM LC LR S QK T W U
FF30A,22D,20G,12M 257.5 178.5 129
79
35 60 8 10 5
12.5
FF50A,35D,30G,20M 287.5 208.5 159 17.4
44G,30M 331.5 252.5 203 25.2
44M 384.5 305.5 256 42 60 8 12 5 33.8
<Brake>
