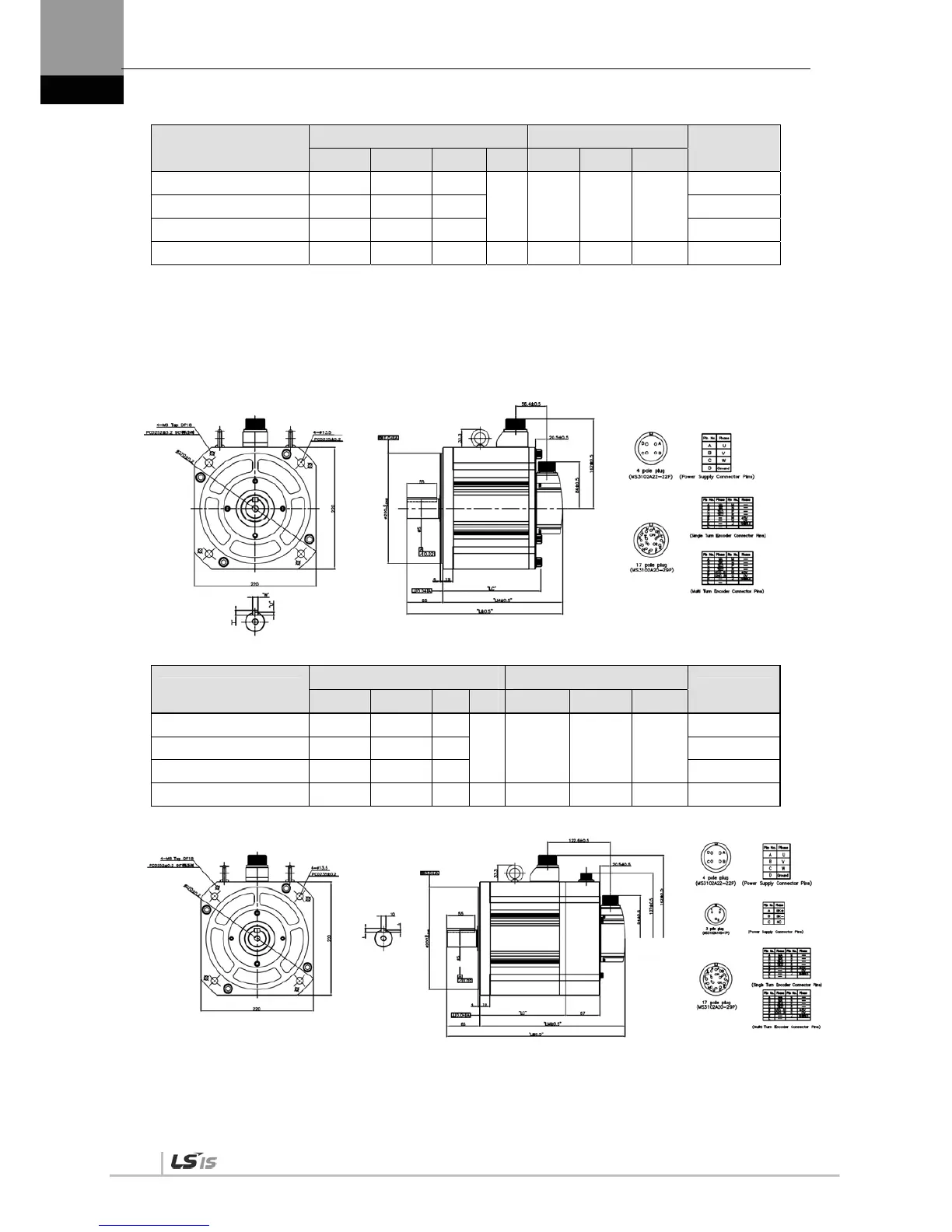

7. Product Specifications
7-44
Name
External Dimensions Key Dimensions
Weight(kg)
L LM LC LR T W U
FF30A,22D,20G,12M 308.9 229.9 128.7
35 8 10 5
19.7
FF50A,35D,30G,20M 338.9 259.9 158.7 24.6
44G,30M 382.9 303.9 202.7 32.4
44M 435.9 356.9 234.7 42 8 12 5 41.0
NOTE 1) Eye bolts apply to FF30M or higher models.
NOTE 2) Use DC power (24V) to operate the brake.
 FG Series | XML-FG22D FG35D FG20G, FG30G, FG44G, FG12M,
FG20M, FG30M, FG44M
<Standard>
Name
External Dimensions Key Dimensions
Weight(kg)
L LM LC S T W U
FG22D,FG20G,FG12M 229.5 164.5 115
35 8 10 5
15.42
FG35D,FG30G,FG20M 250.5 185.5 135 20.22
FG44G,FG30M 282.5 217.5 168 28.02
FG44M 304.5 239.5 190 42 8 12 5 33.45
<Brake>
