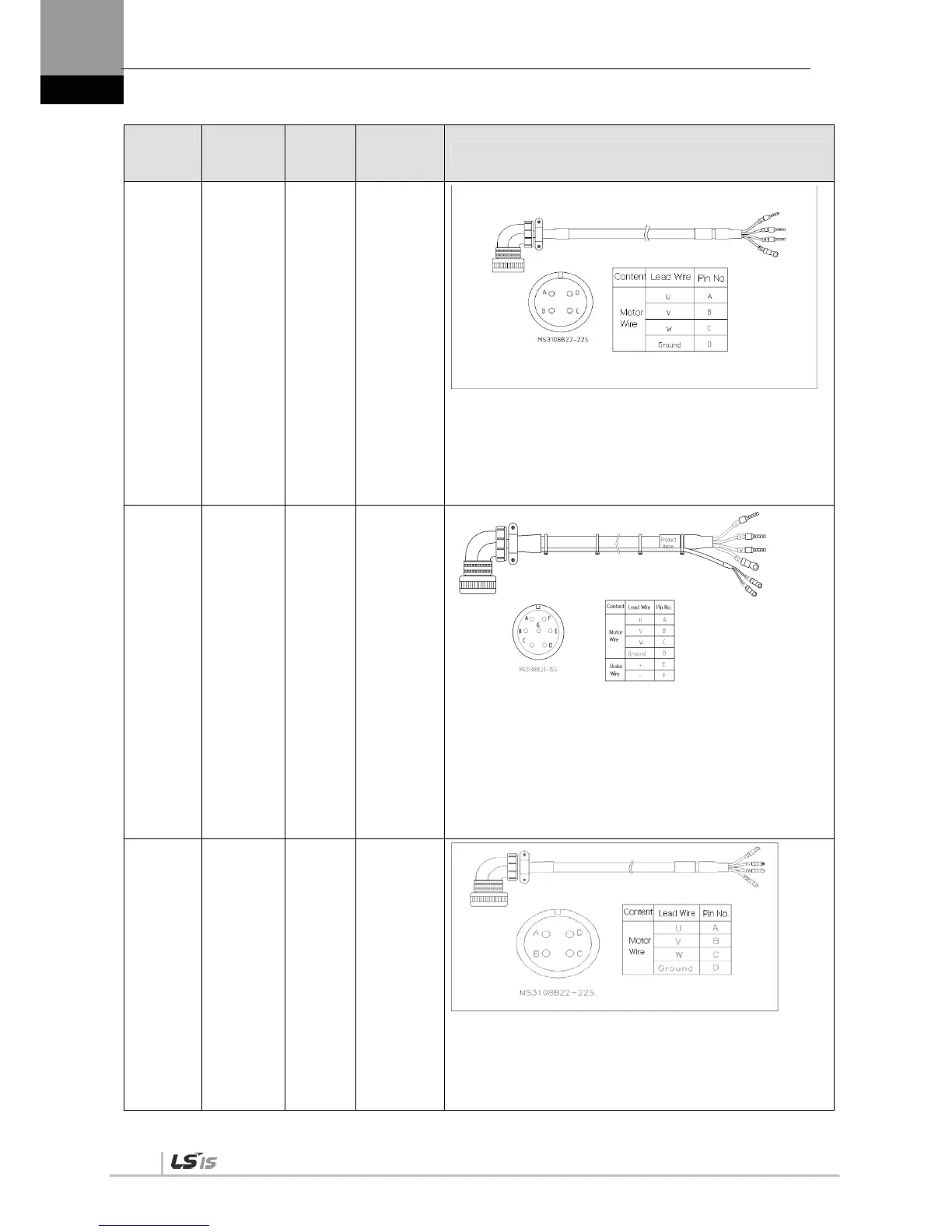

7. Product Specifications
7-60
Category
Product
Name
Type
Name
(Note 1)
Applicable
Motors Specifications
For power
Standard
type
Power
cable
XLCS-
PIS
XML-SF
XML-SG
XML-FF
XML-FG
SERIES
Below
3.5KW
1. Motor connection (MS: Military Standard)
a. Plug specifications: MS3108B (MS3106B) 22-22S
2. Drive connection (U, V, W, and FG)
a. U, V and W pin specifications: UA-F4012 (SEOIL)
b. FG pin specifications: 2.5 X 4 (ring terminal)
3. Cable specifications: 4Cx2.5SQ (AWG14)
For power
Power
Cable
(brake
type)
XLCS-
PPB
XML-SF
XML-LF
XML-FF
SERIES
Below
3.5KW
1. Motor connection
a. Plug specifications:: MS3108B24-10S(MS)
2. Drive connection
a. Cable specifications: 4C x 2.5SQ or 4C x 14AWG
b. FG pin specifications: 2.5 x 4(Ring Terminal)
3. Brake power connection
a. BK pin specifications : 1.5 x 3(Ring Terminal)
b. Cable specifications: 2C x 0.75SQ or 2C x 18AW
For power
Standard
type
Power
cable
XLCS-
PJS
(new)
XML-SF
XML-SG
XML-FF
XML-FG
SERIES
Over
3.5KW
Below
5KW
1. Motor connection (MS: Military Standard)
a. Plug specifications: MS3108B (MS3106B) 22-22S
2. Drive connection (U, V, W, and FG)
a. U, V and W pin specifications: 6012
b. FG pin specifications: 6.0 x 5 (Ring Terminal)
Motor connection Drive connection
