7. Product Specifications
7-61
Category
Product
Name
Type
Name
(Note 1)
Applicable
Motors Specifications
For power
Power
Cable
(Brake
type)
XLCS-
PLB
(new)
All models
of
XML-SF
XML-LF
XML-FF
SERIES
Over
3.5KW
Below
5KW
1. Motor connection
a. Plug specification: MS3108B24-10S(MS)
2. Drive connection
a. Cable specifications: 4C x 2.5SQ or 4C x 14AWG
b. Pin specifications: 2.5 x 4(Ring Terminal)
3. Brake power connection:
a. BK pin connection: 1.5 x 3(Ring Terminal)
b. Cable specifications: 2C x 0.75SQ or 2C x 18AW
For power
Power
cable for
flat type
motor(small
capacity)
XLCS-
PFS-

*Front :
XLCS-
PFS
* Rear :
XLCS-
PFS-
R
All models
of
XML-FB
and
XML-FC
Series
1. Motor connection
a. Plug specification: KN5FT04SJ1(JAE)
b. Plug specification: ST-KN-S-C1B-3500 (JAE)
2. Drive connection (U,V,W,FG)
a. U,V,W pin connection: F1512
b. FG pin connection: 1.5x4 (Ring Terminal)
3. Cable specifications: 4Cx0.75SQ or 4Cx18AWG
For power
Brake
cable for
flat type
motor(small
capacity)
XLCS-
BQS
*Front :
XLCS-
BQS
* Rear :
XLCS-
BQS-
R
All models
of
XML-FB
and
XML-FC
Series
1. Motor connection
a. Plug specifications: : KN5FT02SJ1 (JAE)
b. Socket specifications: ST-KN-S-C1B-3500 (JAE)
2. Drive connection
a. Connection terminal specifications: 1.5x3(KET GP110012)
3. Cable specifications: 2Cx0.75SQ or 2Cx18AWG18

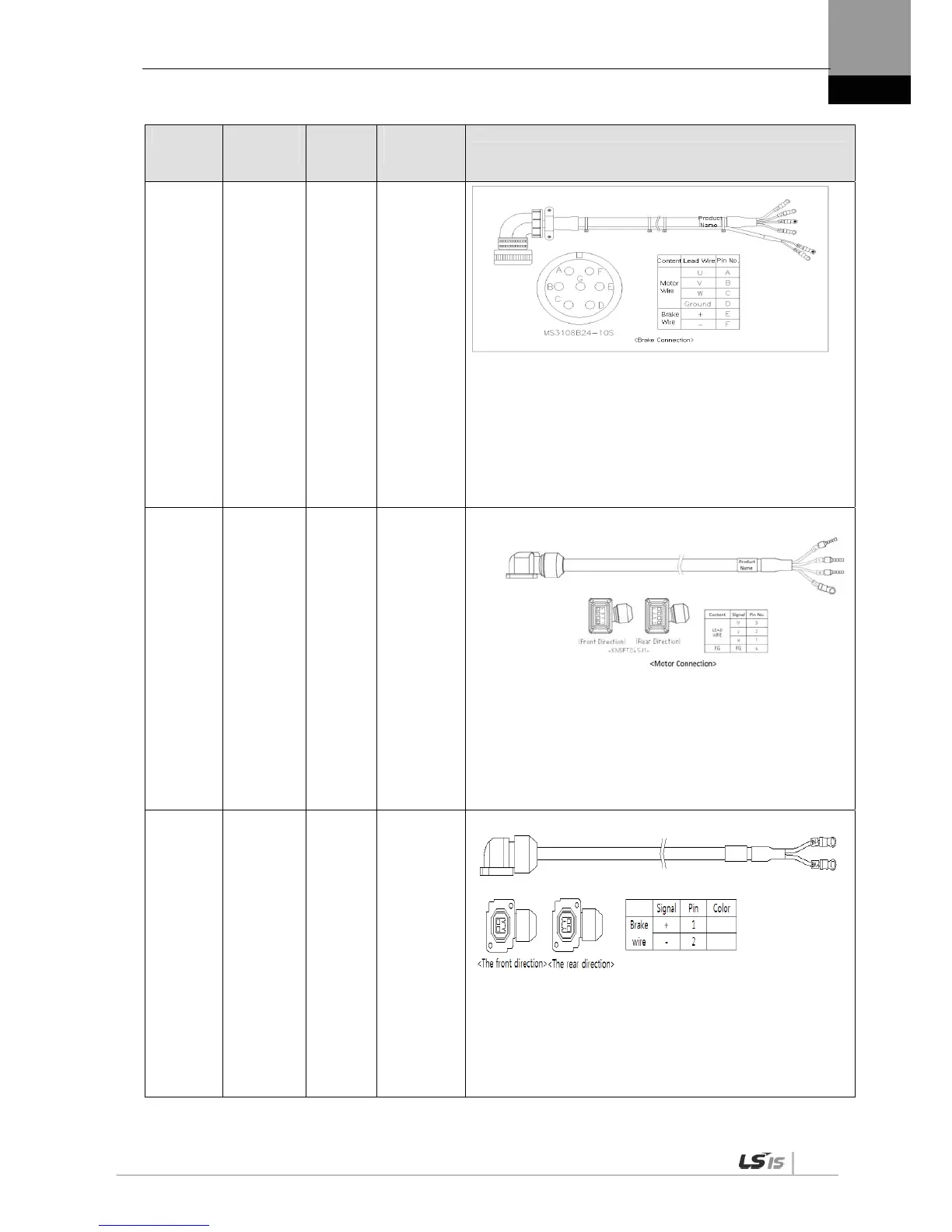

Motor connection
