7. Product Specifications
7-62
Category
Product
Name
Type
Name
(Note 1)
Applicable
Motors Specifications

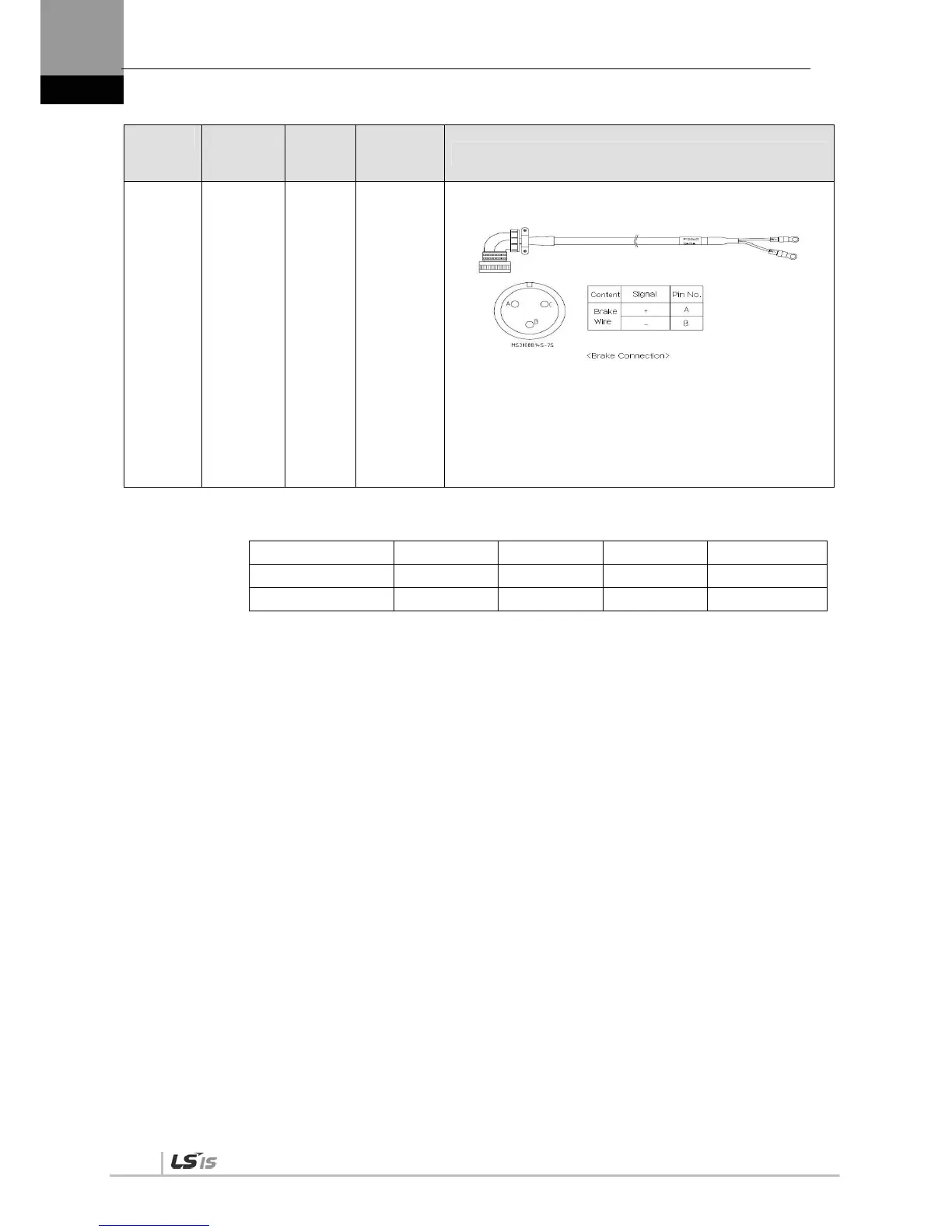

For power
Brake
cable
XLCS-
PSB
(new
model)
All models
of
XML-SG
XML-LG
XML-FG
Series
1. Motor side connector
a. PLUG : MS3108B14-7S
2. Power side Connector(+,-)
a. Connection terminals : 1.5x3(KET GP110012)
3. Cable
a. 2Cx0.75SQ or 2Cx19AWG
NOTE 1) The  in Type Name indicates the type and length of each cable. Refer to the table below for
how to display them.
Cable length (m) 3 5 10 20
Robotic cable F03 F05 F10 F20
General cable N03 N05 N10 N20
Brake Connection
Drive Connection
