7. Product Specifications
7-63

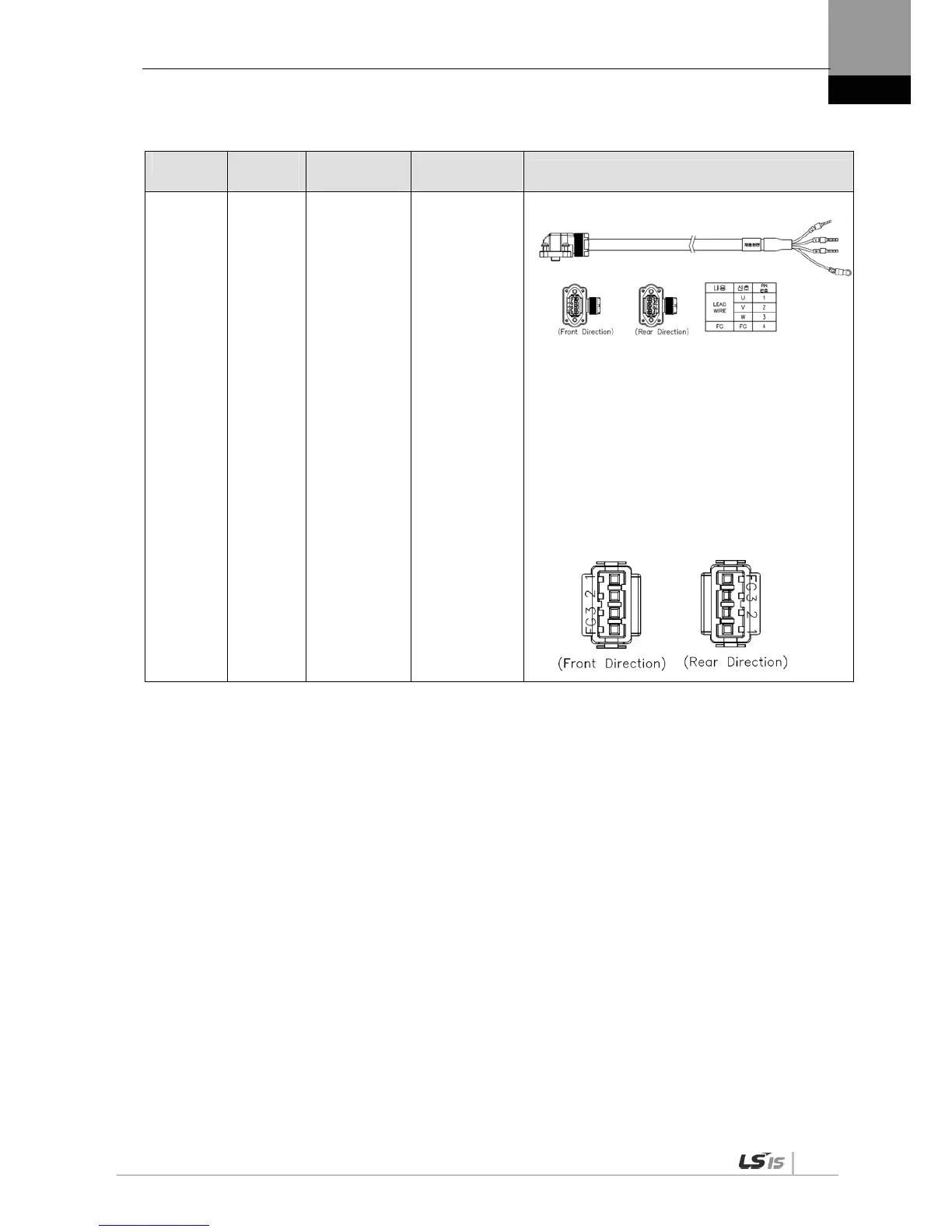

■ Option (cable)
Category
Product
Name
Type Name
(Note 1)
Applicable
Drive
Specifications
For power
Power
cable for L
series
(small
capacitor)
XLCS-
PLS(Front
Direction)/
XLCS-
PLS-
R(Rear
Direction)
All models of
XML-
FAL/FBL/FCL
Series
1. Motor side connector
a. PLUG : SM-JN8FT04 (Suntone사)
b. Socket : SMS-201 (Suntone사)
2. Drive side connector (U,V,W,FG)
a. U,V,W pin connection:1512
b. FG pin: 1.5x4 (Ring Terminal)
3. Cable : 4Cx0.75SQ or 4Cx18AWG
4. Remark: For FAL motor, after connect power cable
first, connect Encoder cable
M
oto
r
S
i
de
Co
nn
ector
Driv
e
S
i
de
Co
nn
ector
