7. Product Specifications
7-64

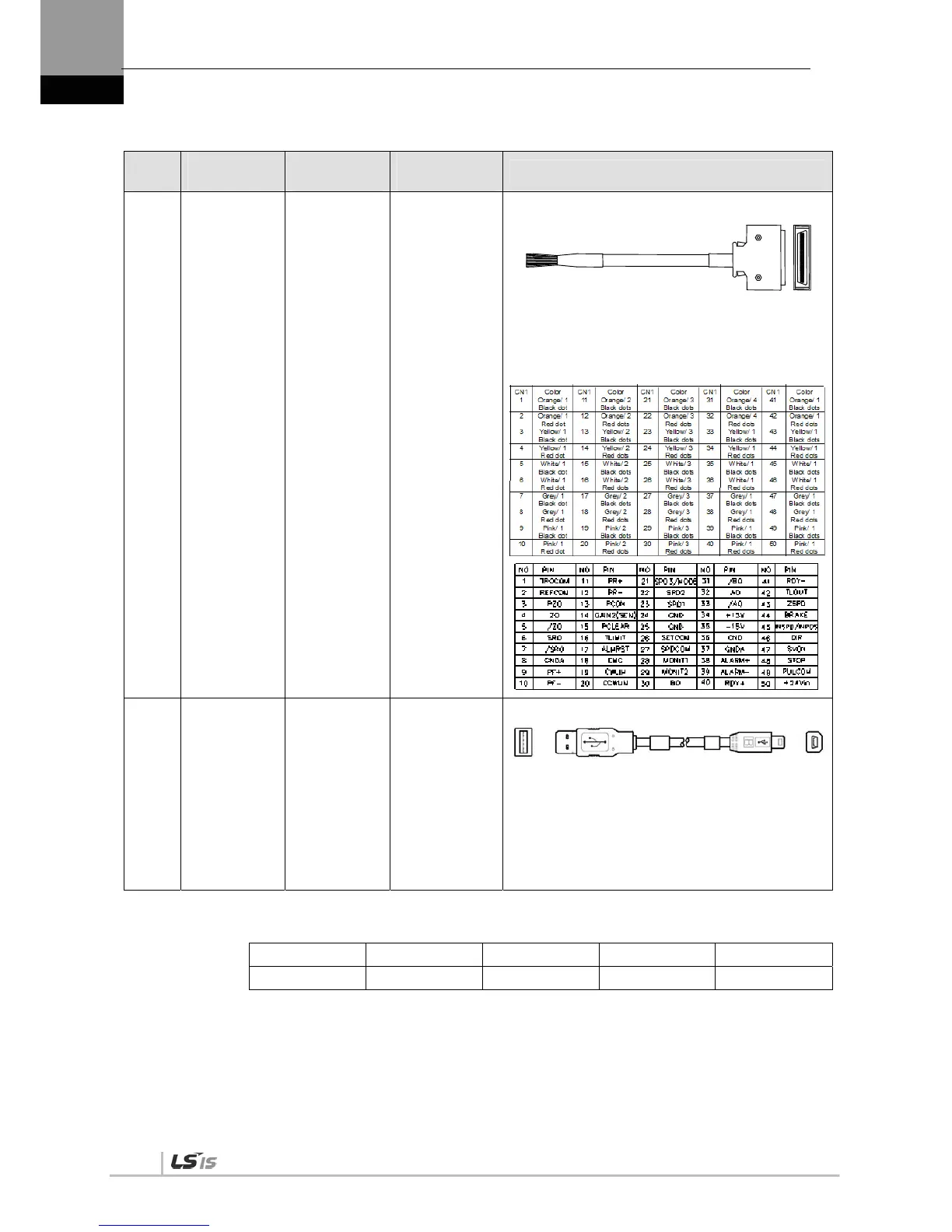

■ Option (cable)
Categ
ory
Product
Name
Type Name
(Note 1)
Applicable
Drive
Specifications
For
signali
ng
CN1 Cable
XLC-CN1A
XDL-L7 SERIES
1. Drive connection (CN1)
a. Case specifications: 10350-52A0-008 (3M)
b. Connector specifications: 10150-3000VE (3M)
c. Cable specifications:ROW-SB0.1Cx50C (AWG
28)
For
signali
ng
Communicatio
n cable
XLCS-
CM5L7U
XDL-L7 SERIES
[PC - USB port] [Servo drive – CN5]
1. PC connection: USB A plug
2. Drive connection (CN5): Mini USB 5P plug
3. Electrical requirements:
Double shielding, twisted pair, EMI filter
installation
(similar product: KU-AMB518 by SANWA)
NOTE 1) The in Type Name indicates the length of each cable. Refer to the table below for how to display
them.
Cable length (m) 1 2 3 5
Written as 01 02 03 05
[Upper level controller]
[Drive connection CN1]
Pin number display
