7. Product Specifications
7-59

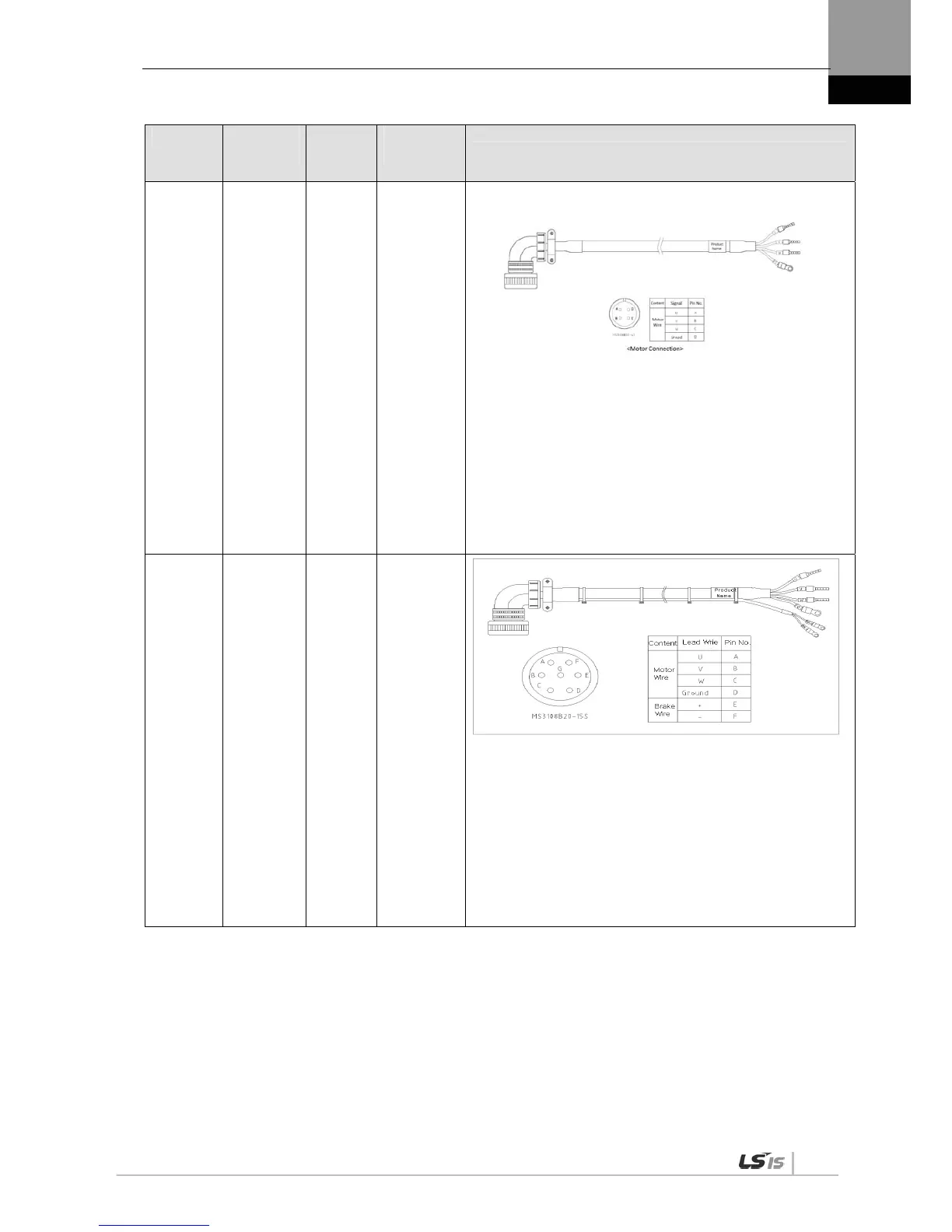

Category
Product
Name
Type
Name
(Note 1)
Applicable
Motors Specifications
For power
Standard
type
Power
cable
XLCS-
PHS
All models
of
XML-SE
and
XML-HE
Series
1. Motor connection (MS: Military Standard)
a. Plug specifications: MS3108B (MS3106B) 20-4S
2. Drive connection (U, V, W, and FG)
a. U, V and W pin specifications: UA-F2512
b. FG pin specifications: 2.5x4 (ring terminal)
3. Cable specifications: 4Cx2.0SQ (AWG14)
Note: The drive end connection of the XML-SE03M Series cable
uses the UA-F1512 pin.
For power
Power
cable
(Brake
type)
XLCS-
PNB
All models
of
XML-SE
XML-FE
SERIES
1. Motor connection
a. Plug specifications: MS3108B20-15S (MS)
2. Drive connection
a. U, V and W pin specifications:2012
b. Cable specifications: 4C x 2.5SQ or 4C x 12AWG
c. FG pin specifications: 2.5 x 4(Ring Terminal)
3. Brake power connection
a. BK pin specifications : 1.5 x 3(Ring Terminal)
b. Cable specifications: 2C x 0.75SQ or 2C x 18AWAG
Motor connection
Drive connection
