7. Product Specifications
7-58

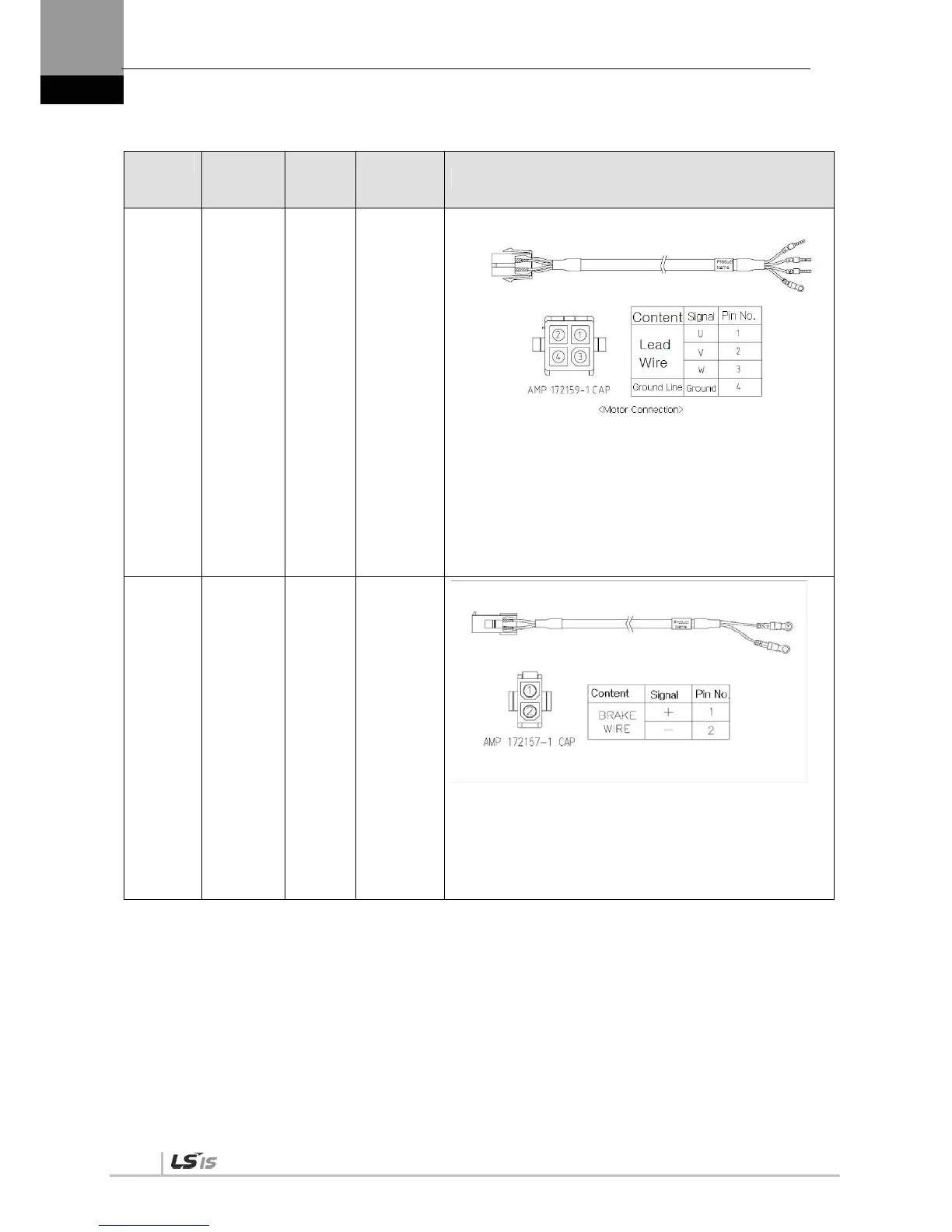

■ Option (power cable)
Category
Product
Name
Type
Name
(Note 1)
Applicable
Motors Specifications
For power
Standard
type
Power
cable
XLCS-
PGS
All models
of
XML-SA,
XML-SB,
XML-SC
and
XML-HB
Series
1. Motor connection
a. Cap specifications (4 positions): 172159-1 (AMP)
b. Socket specifications: 170362-1 (AMP)
2. Drive connection (U, V, W, and FG)
a. U,V and W pin specifications: UA-F1512 (SEOIL)
b. FG pin specifications: 1.5x4 (ring terminal)
3. Cable specifications: 4Cx0.75SQ (AWG18)
(XML-SAR3A, SAR5A, and SA01A use 0.5SQ)
For power
Brake
type
Power
cable
XLCS-
PKB
(new)
All models
of
XML-SA,
XML-SB
and
XML-SC
Series
1. Motor connection
a. Cap specifications (6 positions): 172157-1 (AMP)
b. Socket specifications: 170362-1 (AMP)
2. For brake power
a. Connection terminal specifications: 1.5x3 (KET GP110012)
b. Cable specifications: 2Cx0.75SQ (AWG18)
Motor connection
Drive connection
Power Supply (DC24V)
Motor connection
