3. Wiring Method
3-9

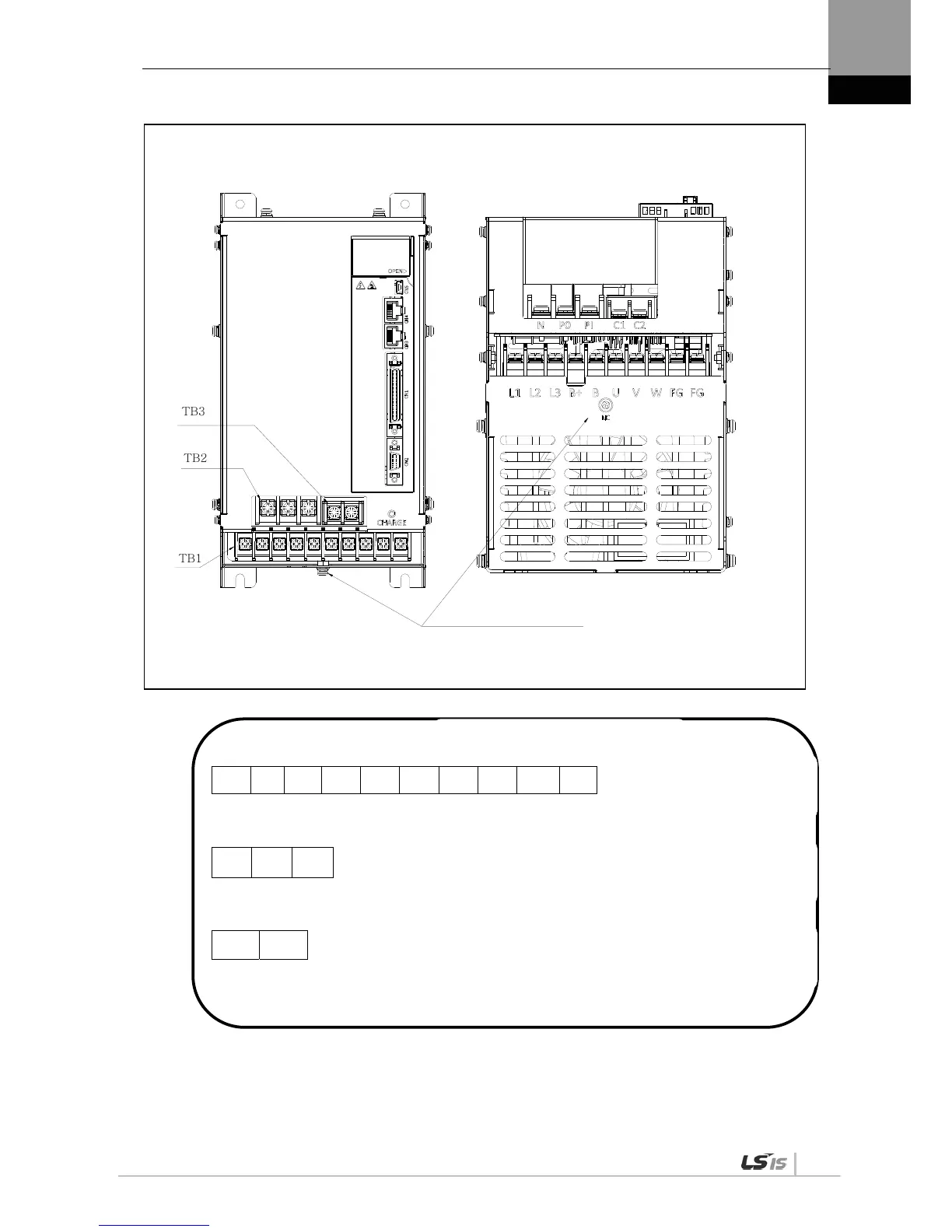

(XDL-L7SA050)
1) Cut by vibration, malfunction or fire by contact could be occurred if torque of screwing was not enough.
TB1
L1 L2 L3 B+ B U V W FG FG
TB2
N PO P1
TB3
C1 C2
Screw : M4
Screwing torque : 1.2[N·m]
Terminal Block Signals
Screw : M4
Screwing torque : 1.2[N·m]
Screw : M4
Screwing torque : 1.2[N·m]
T
B
1
T
B
2
T
B
3
NC : 내부 회생저항기
리드 단자 고정용 나사
NC : Internal regenerative resistor
Screw for holding lead terminal
To Next Page
