(2) Servo Operation Status Summary Display List
The following list explains the operation status summary display of different modes of the
servo.

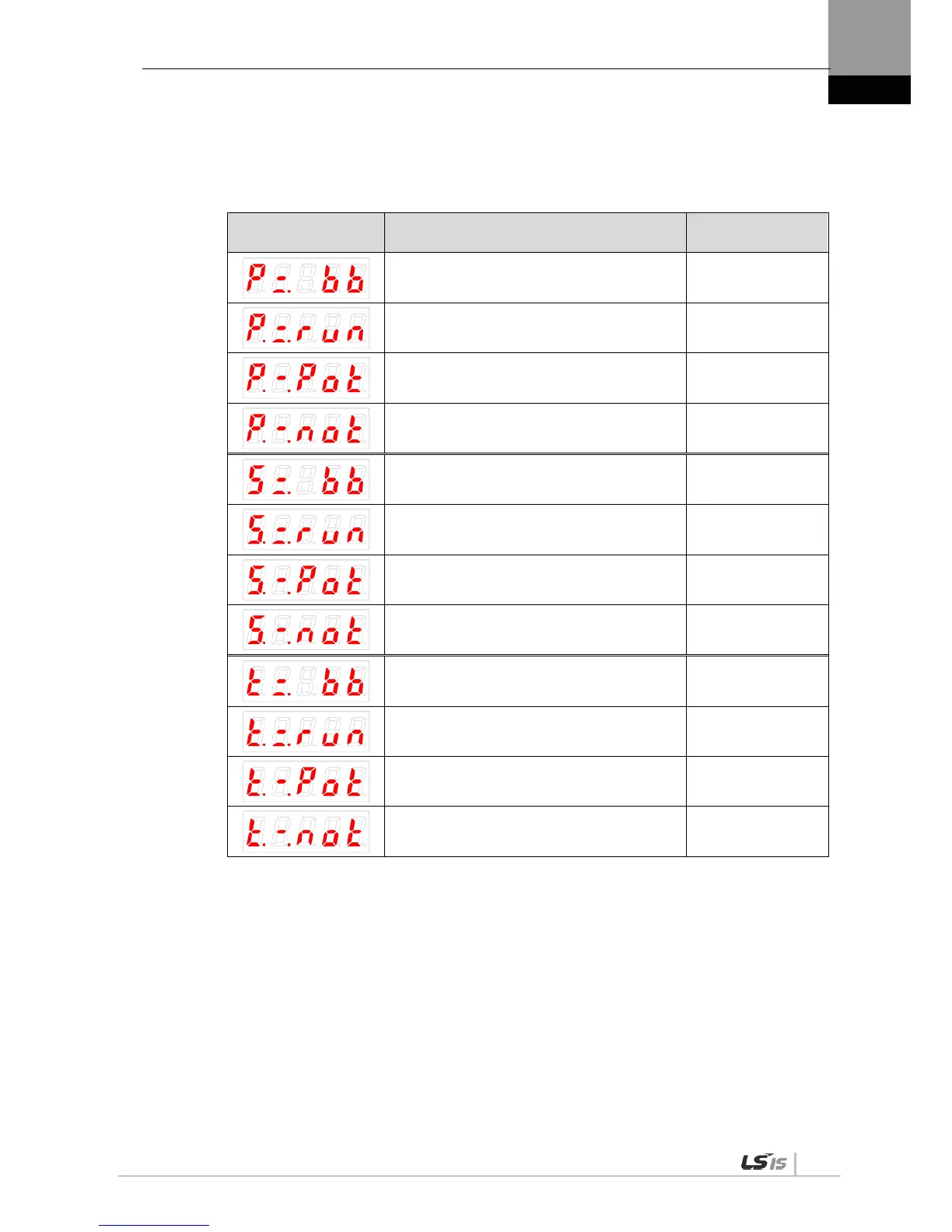

Operation Status
Screen
Function Notes
Displays the servo's OFF status when in the
position mode.
Displays the servo's ON status when in position
mode.
Displays CCW status when in position mode.
Displays CW status when in position mode.
Displays the servo's OFF status when in speed
mode.
Displays the servo's ON status when in speed
mode.
Displays CCW status when in speed mode.
Displays CW status when in speed mode.
Displays the servo's OFF status when in torque
mode.
Displays the servo's ON status when in torque
mode.
Displays CCW status when in torque mode.
Displays CW status when in torque mode.
