Mini-Crawler Crane M A E D A Section 4 – REMOTE CONTROL SYSTEM COMPONENTS
1/2019 MC405C-3 4-93

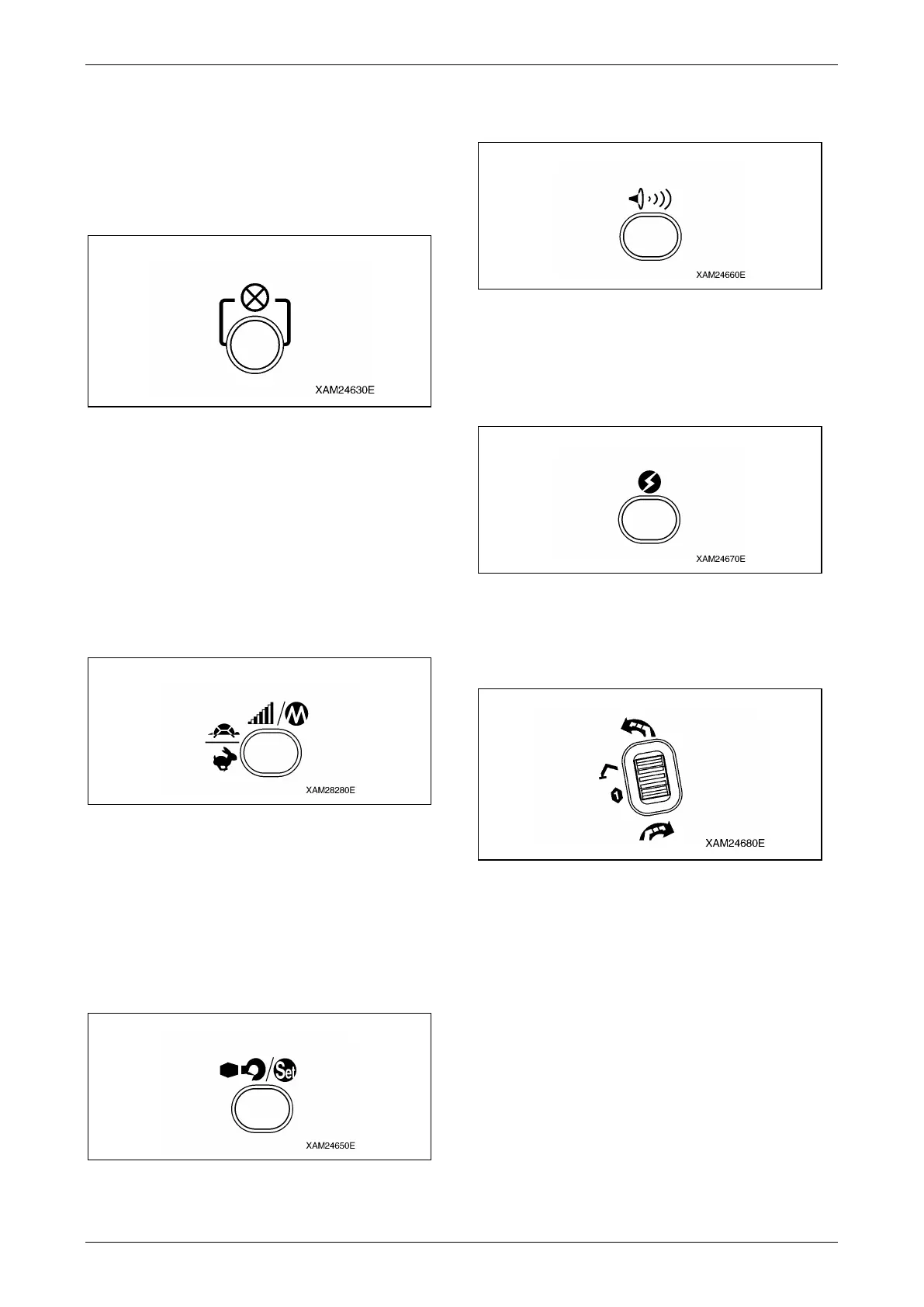

Stop/EMO Button
This button also has two usages as below:
• To push this button stops the engine.
• In an emergency event where the Crane does
not stop by normal operations, or such, this
button provides the forced stop function.
Fig. 4-236
Speed/Mode Button
This button also provides two usages as below:
• During crane operations, to push this button
decelerates the operation speed.
• During the crane operation is in a pause, this
button provides the selection of the Transmitter
operation modes.
The current active mode will be displayed in the
LCD screen.
Fig. 4-237
Hook Stow/Setting Button
This button also serves two usages as below:
• To push this button automatically stows the
hook.
• For each of the setting of the modes, use this
button to fix to one of the choice from the menu
in the LCD screen.
Fig. 4-238
Horn Button
Push this button to toot the horn.
Fig. 4-239
Power Switch
To push this button switches ON and OFF the
power of the Transmitter. Each push will turn ON
or OFF alternately.
Fig. 4-240
Slewing/No.1 Outrigger Operation Lever
This operation lever functions in two ways as
below:
Fig. 4-241
1. In the CRANE MODE, this lever controls
slew of the Crane structure:
• Counterclockwise (left):
Push the upper end
of the lever.
• Neutral: Release your finger
from the lever.
• Clockwise (right): Push the lower end of
the lever.
To Next Page
