Section 4 – REMOTE CONTROL SYSTEM VERIFICATIONS Mini-Crawler Crane M A E D A
4-108 1/2019 MC405C-3

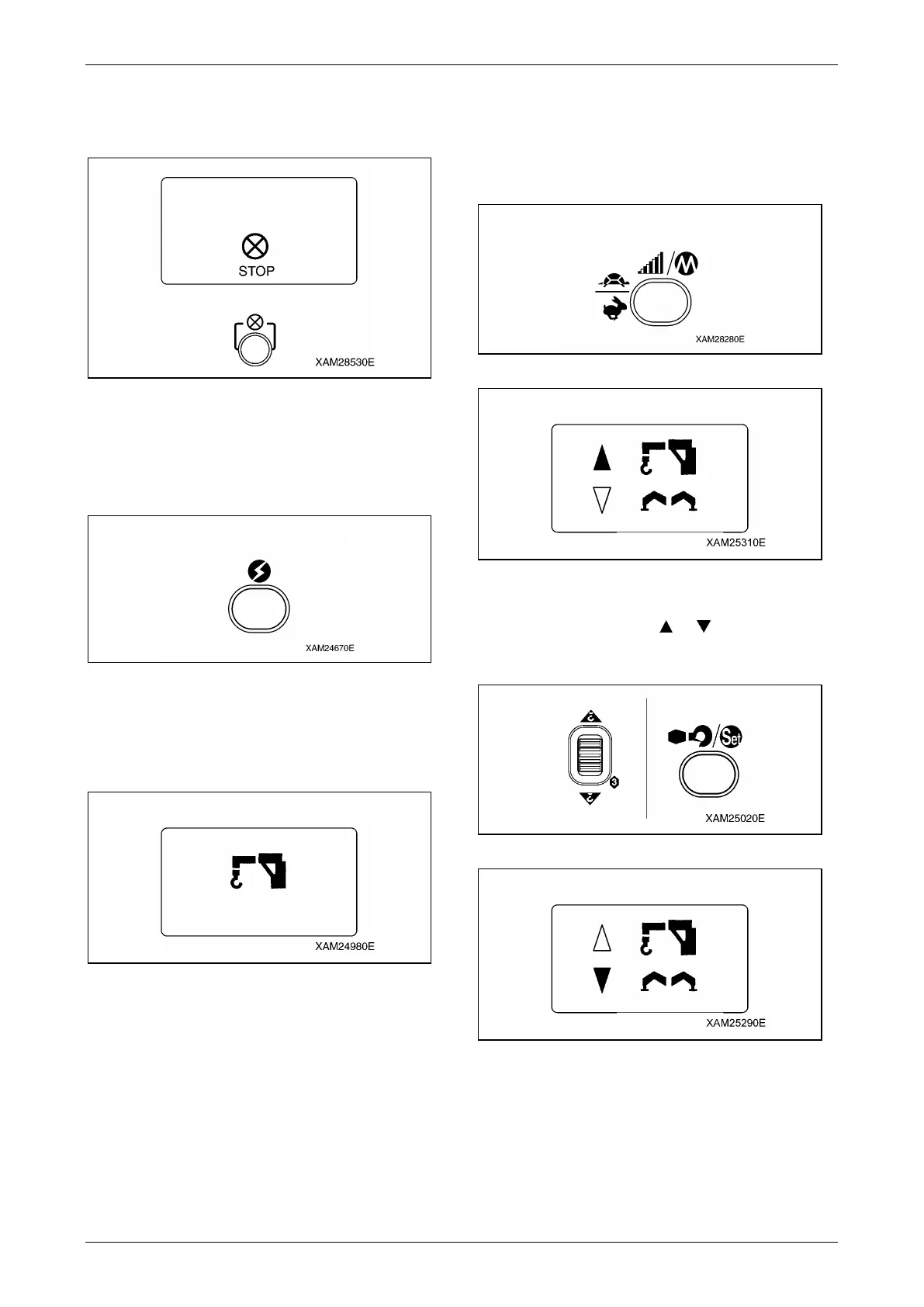

4. Also, verify that "STOP" is correctly
displayed in the LCD screen when the
Stop/EMO button is pushed.
Fig. 4-291
Verification of the LCD Screen Sign at the
"Outrigger Mode"
1. Push the Power switch to once turn OFF the
Transmitter.
Fig. 4-292
2. Push the Power switch again to turn ON the
Transmitter.
The "Crane mark" is displayed in the LCD
screen for 2 seconds around.
Fig. 4-293
3. While the "Crane mark" is shown in the LCD
screen (for approx. 2 seconds), push the
Speed/Mode button for 2 seconds.
The LCD provides the screen for selecting
"CRANE MODE" or "OUTRIGGER MODE".
Fig. 4-294
Fig. 4-295
4. Use the Hook raising and lowering Lever
and shift the cursor ( or ), and push the
Setting button when the cursor points out the
"OUTRIGGER".
Fig. 4-296
Fig. 4-297
To Next Page
