Section 4 – FLY-JIB INSTALLATION AND STOWAGE Mini-Crawler Crane M A E D A
4-166 1/2019 MC405C-3
WARNING! Always insert position pin (19)
from upper side. If you insert position pin (19)
from under side, it will drop out resulting in a
serious hazard.
17. Slide No.1 Fly-jib (4) and storage bar (16) to
the head of No.1 Fly-jib (4), then put the hole
on stopper (30) of storage bar (16) and No.1
Fly-jib (4) together.
18. Insert position pin (18) into the hole on the
stopper (30) of storage bar (16), then fix
position pin (18) securely with the lynch-pin
(29).

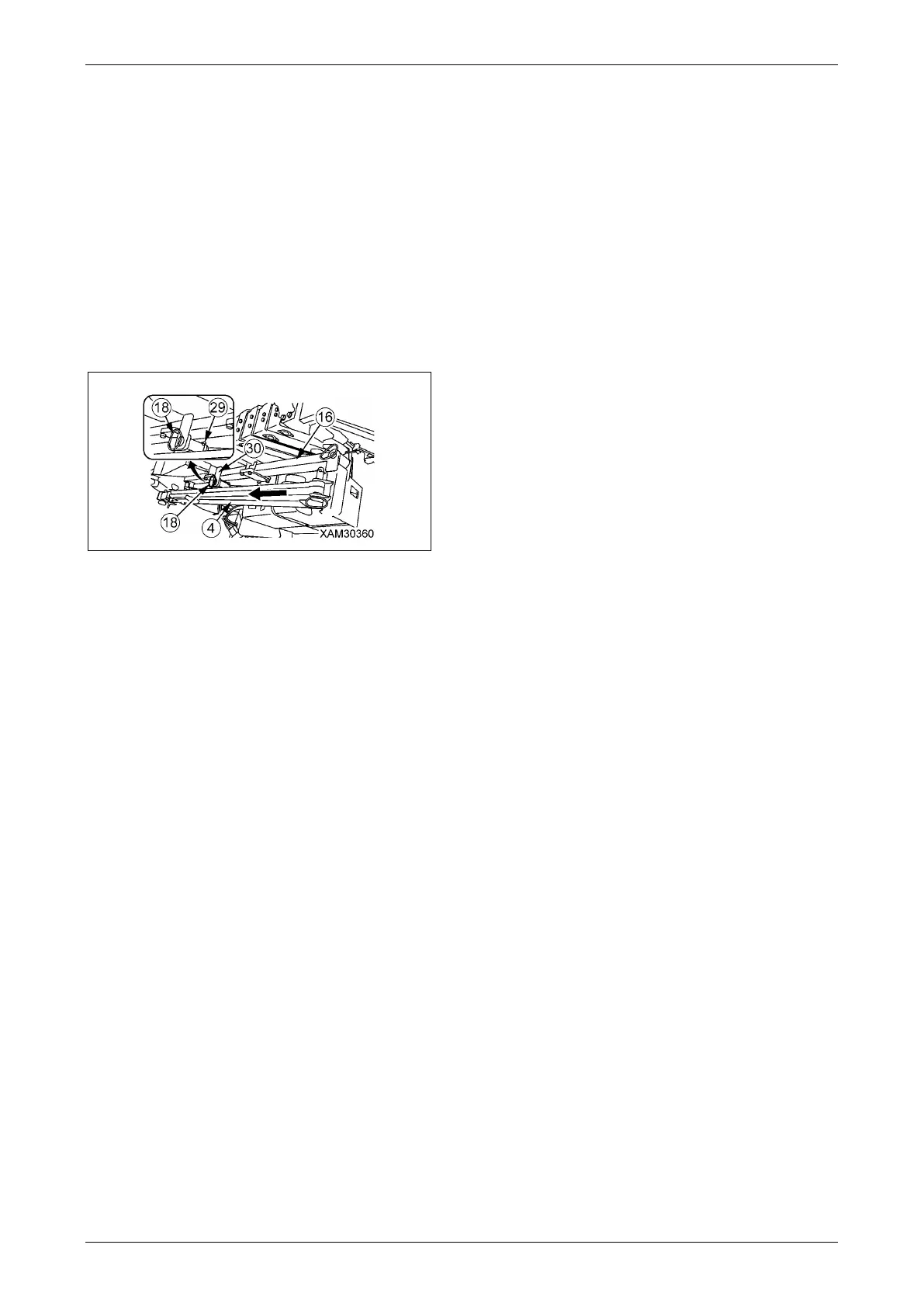

Fig. 4-501
WARNING! Always insert position pin (18)
from upper side. If you insert position pin (18)
from under side, it will drop out resulting in a
serious hazard.
