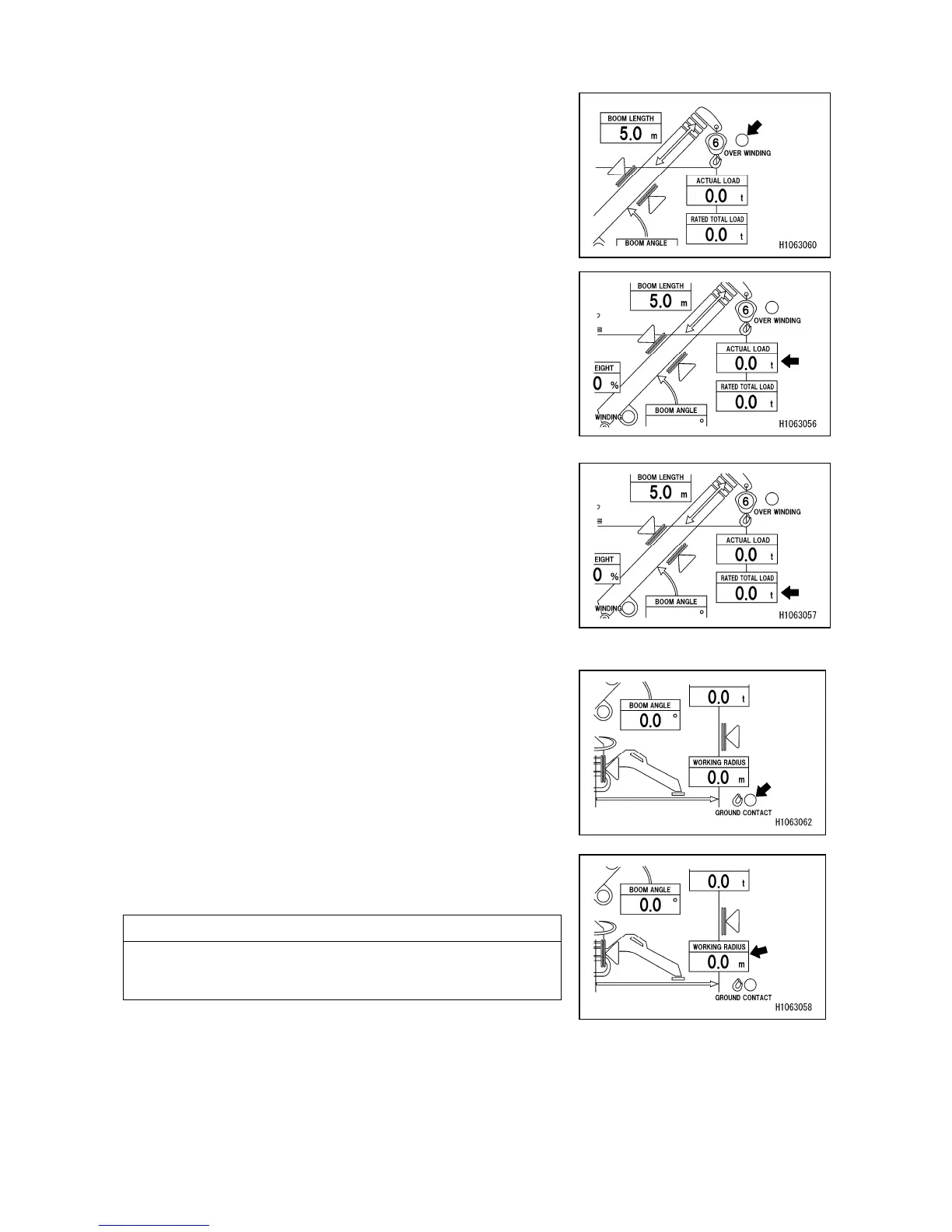

[13] Over winding indication (OVER WINDING)
Lights up when the hook is hoisted too high due to over
winding of the wire rope during crane operation.
[14] Actual load indication (ACTUAL LOAD)
Continually displays the actual load of the hoisted load
during crane operations.
[15] Rated total load indication (RATED TOTAL LOAD)
Indicates the currently applicable rated total load (the total
weight of the hook, slings, and hoisting load).
[16] Hook grounding indication (GROUND CONTACT)
Lights up when the hook touches the ground.
[17] Working radius indication (WORKING RADIUS)
Continually displays the current working radius during
crane operations.
NOTES
The working radius refers to the horizontal distance from
the center of the crane swing to the center of the hook.
