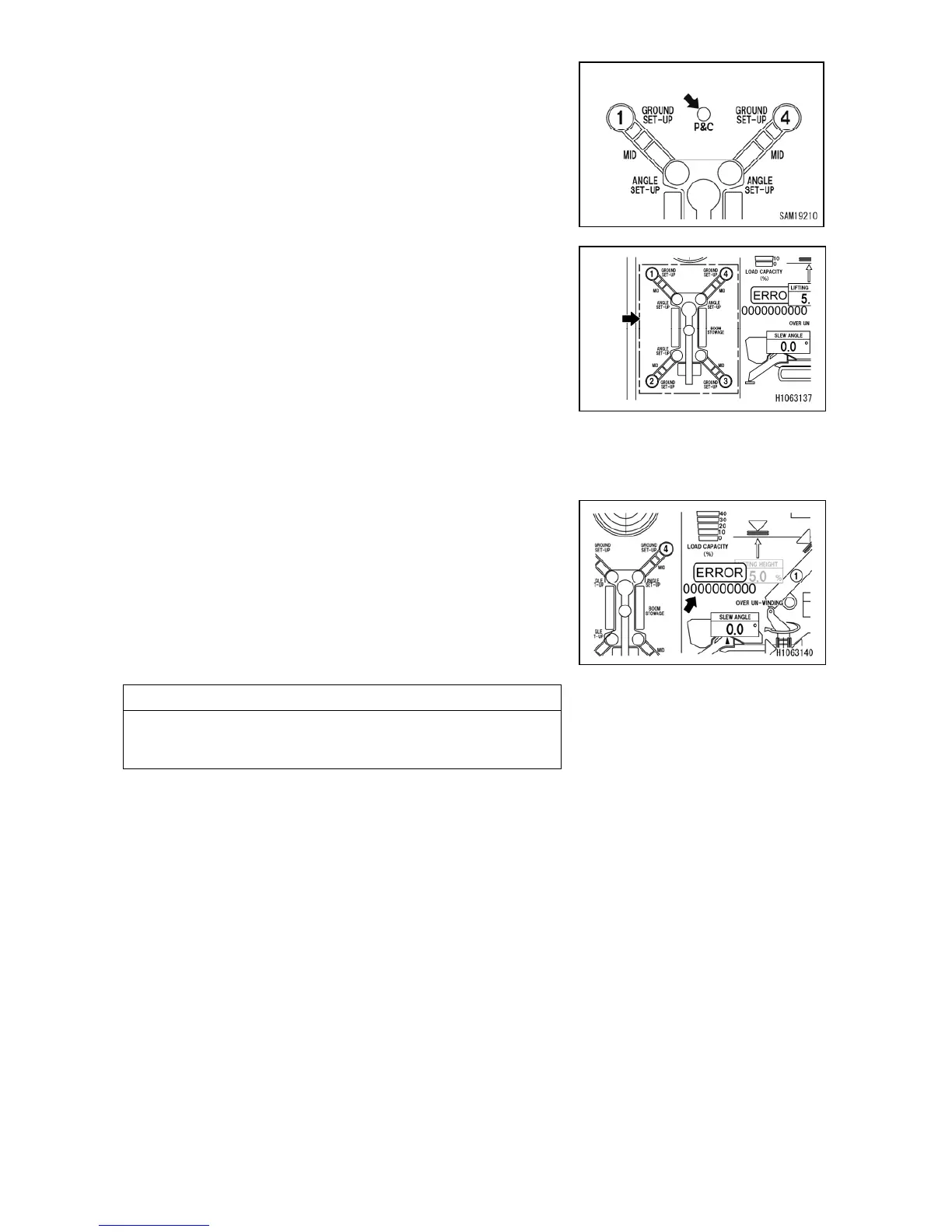

[23] Pick & Carry position
Illuminates in yellow when the machine is in Pick & Carry
posture.
When this light illuminates in yellow, outrigger can be
operated even the crane is not stowed.
For conditions of Pick & Carry posture, read the section
“OPERATION 2.26 PICK & CARRY OPERATION”.
[24] Outrigger related indication
For the following outrigger related indications, refer to
1.2.1, “DESCRIPTION OF MONITOR, [3] MONITOR
DISPLAY (OUTRIGGER MODE)”.
• Crane stow position indication
• Outrigger (1) to (4) Extension (ANGLE SET-UP)
• Outrigger (1) to (4) Minimum (MIN)
• Outrigger (1) to (4) Medium (MID)
• Outrigger (1) to (4) Maximum (MAX)
• Outrigger (1) to (4) Ground (GROUND SET-UP)
[25] Error code
When a fault occurs in the machine, the panel lets
you know by displaying an error code on the
display area.
If an error code is displayed, please contact our
company or our company’s sales servicing shop.
For details of the error code, refer to “OPERATION
11.7 LIST OF ERROR CODES” section.
NOTES
In the event outriggers are not set, if you switch to crane
mode, error code “EOR00” comes up, but this is not a
failure.
