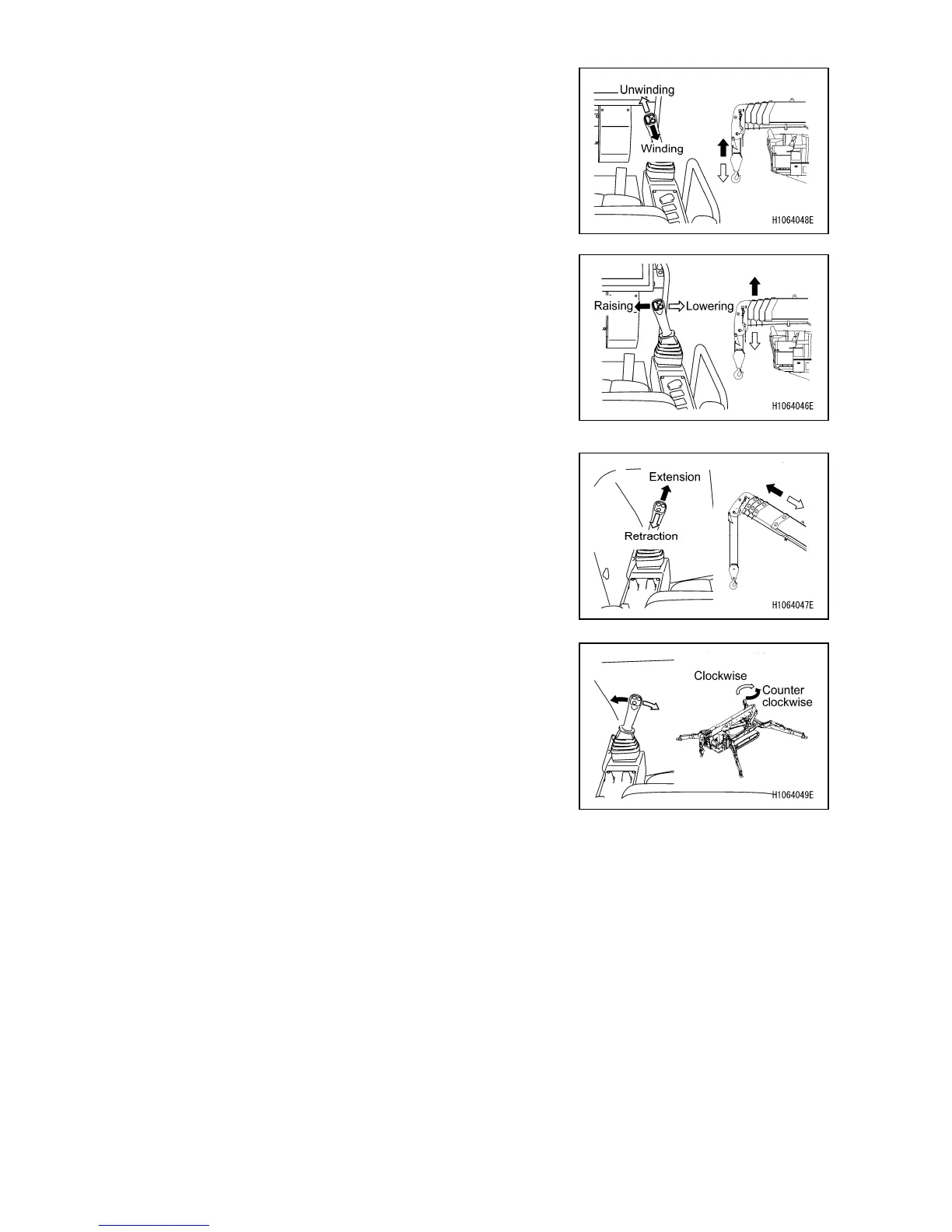

[7] Unwinding
Unwinds the wire rope while the lever is pushed forward.
[8] Winding
Winds the wire rope while the lever is pulled toward you.
[9] Boom lowering
Lowers the boom while the lever is pushed towards the
right side.
[10] Boom raising
Raises the boom while the lever is pushed towards the left
side.
[11] Boom extension
Extends the boom while the lever is pushed forwards.
[12] Boom retraction
Retracts the boom while the lever is pulled towards you.
[13] Boom clockwise slewing
Slews the boom in the clockwise direction while the lever is
pushed toward the right side.
[14] Boom counter-clockwise slewing
Slews the boom in the counter-clockwise direction while
the lever is pushed toward the left side.
