Maeda MC815C - OPERATION BY REMOTE CONTROL; PRE-OPERATION CAUTIONS AND POWERING ON

172

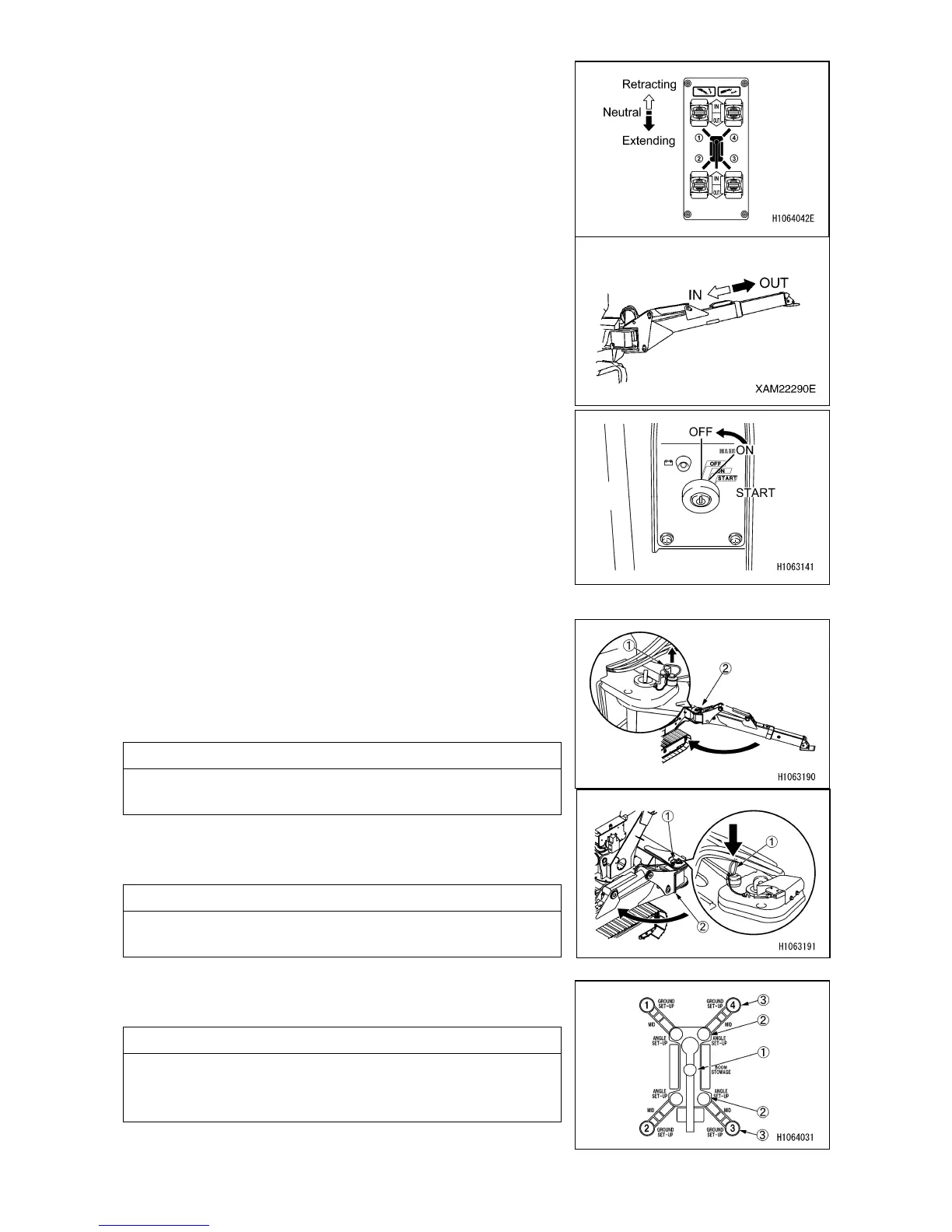

13. Set the two outrigger switches individually or at the
same time to the “Retraction” position.
When the extension cylinder is completely retracted
and the inner box reaches the shortest position, and set
the switch to the “NEUTRAL” position.
Repeat the above steps for other outriggers to bring the
outrigger inner boxes to the shortest position, and set
the switch to the “NEUTRAL” position.
14. Turn the starter switch to the “OFF” position.
The engine stops.
[2] PROCEDURES AFTER ENGINE SHUTOFF
1. Pull the positioning pin (1) out of the outrigger rotary
(2), and rotate the outrigger rotary inwards.
2. When the outrigger rotary (2) is aligned with the pin hole,
fully insert the positioning pin (1) into the hole.
NOTES
The positioning pin (1) is equipped with a wire to prevent
it from being lost.
3. Repeat the above steps to stow the other three
outriggers.
NOTES
After the outriggers have been stowed, make sure that
each positioning pin (1) is securely inserted.
4. Make sure that the four outrigger extension lamps (2) in
the outrigger indication are turned off.
NOTES
On the monitor, the crane stowage lamp (1) is lit in yellow,
and the four outrigger grounding lamps (3) and the four
outrigger extending lamps (2) are blinking in red.
