363

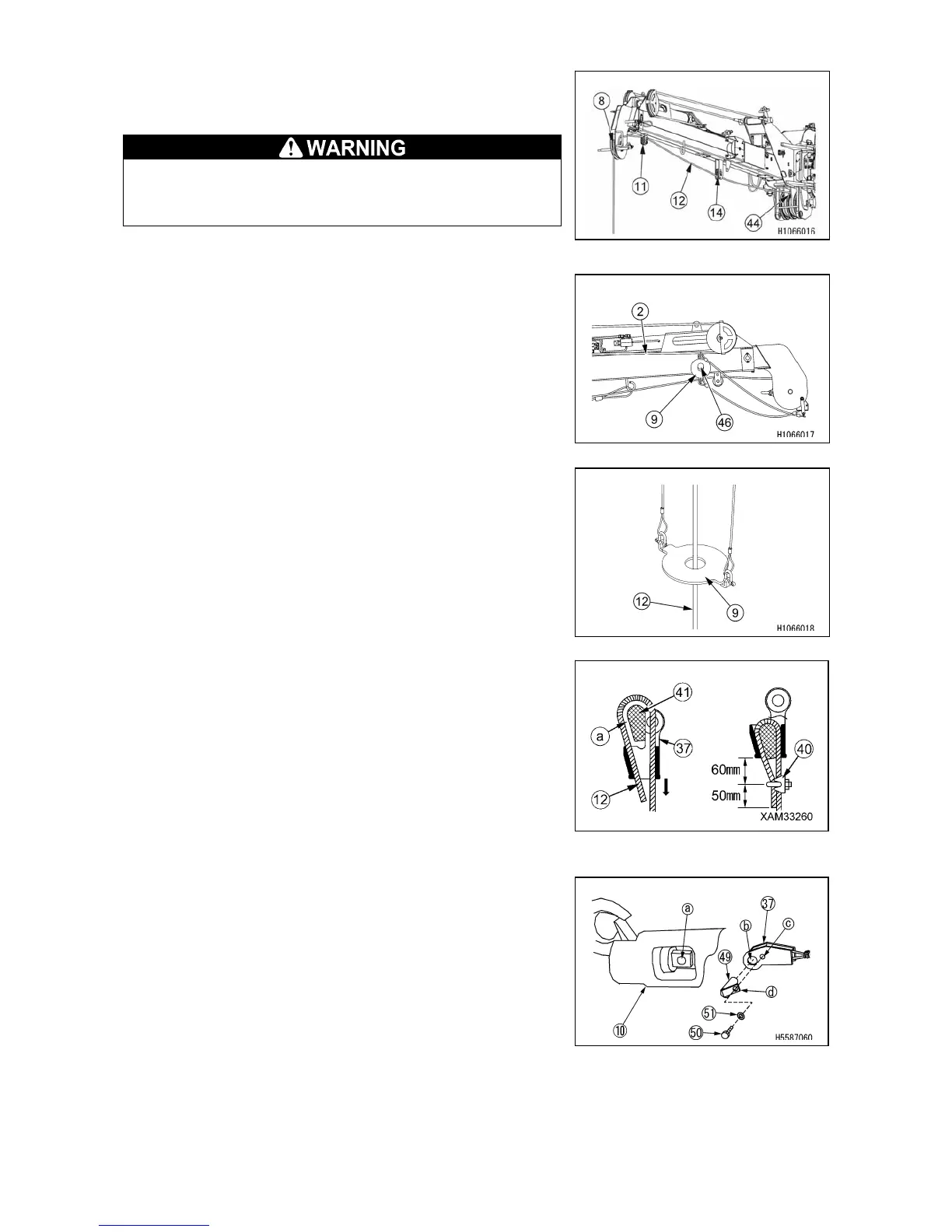

22. Draw the wire rope (12) you have just passed through the
sheave (44) through in the order of the guide sheave (14),
the snap sheave (11) and the sheave (8).
Attach the wire rope correctly. If the wire rope is threaded
through a wrong route, it might be damaged causing a
serious accident.
23. Remove the over hoist detector weight (9) from the weight
hanger (46) on the right side of the No. 1 fly jib (2).
24. Draw the wire rope (12) through the circle of the over-hoist
detector weight (9).
25. Pull the wire rope (12) through the wire socket (37)
removed in step 20 as shown in the figure on the right and
put the rope wedge (41) in the position (a), and yank the
wire rope (12) in the direction indicated by the arrow.
26. Attach the rope clip (40) to the wire rope (12).
See the figure on the right for the position to attach the
rope clip (40).
27. Hold the wire socket (37) and insert it so that the pin hole
(a) inside the hook block is aligned with the hole (b) of the
wire socket (37). Insert the wedge socket pin (49) into the
aligned hole and align the wedge socket pin (49) fixing
hole (d) with the wedge socket (37) fixing hole (c) and
fasten them with a spring washer (51) and bolt (50).
