The following explains the monitor items except those described in Section “1.2.1,
DESCRIPTION OF MONITOR, [1] MONITOR DISPLAY (COMMON TO ALL MODES)”.

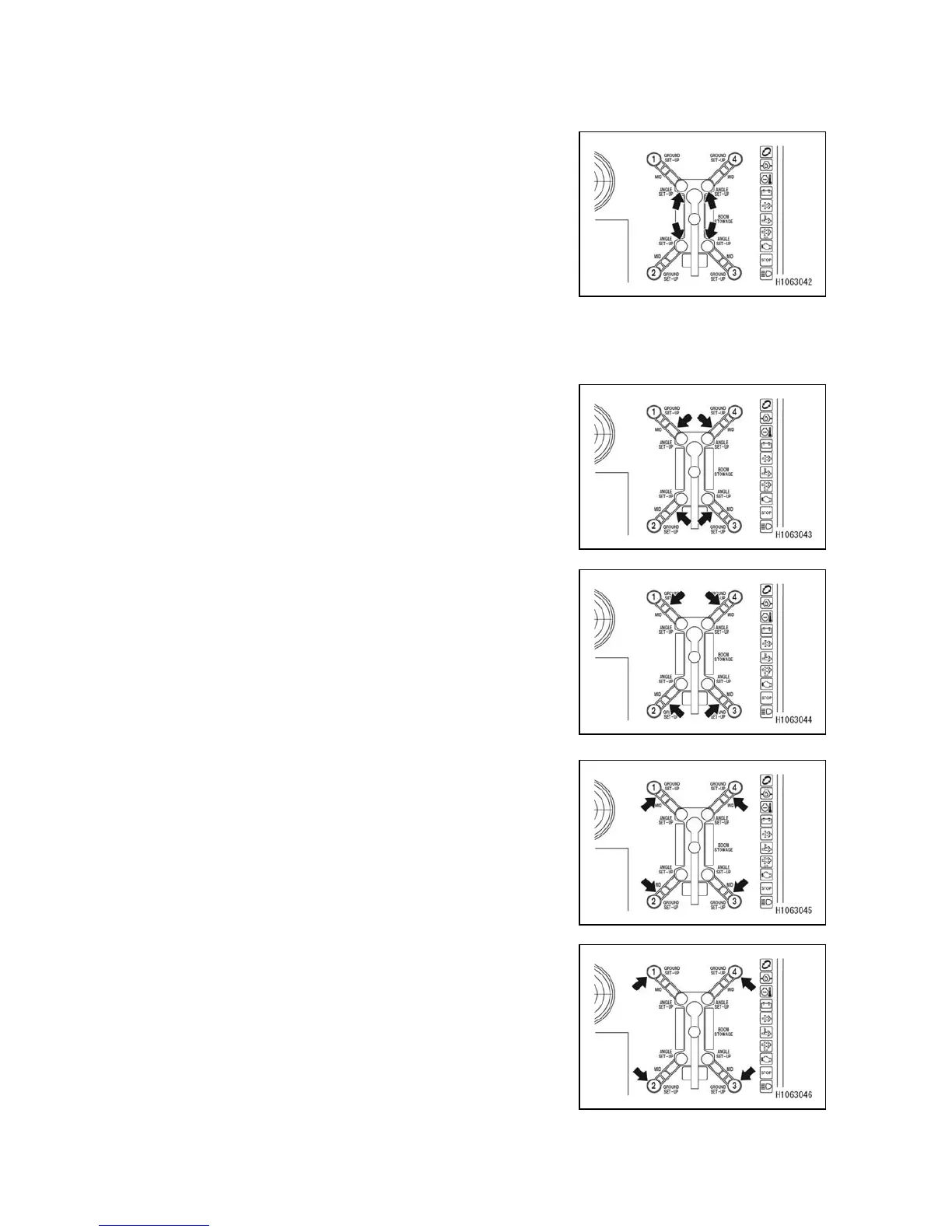

[1] Outrigger (1) Extension (ANGLE SET-UP)
[2] Outrigger (2) Extension (ANGLE SET-UP)
[3] Outrigger (3) Extension (ANGLE SET-UP)
[4] Outrigger (4) Extension (ANGLE SET-UP)
These lamps individually light up to indicate which
outrigger is currently extended.
The individual lamps illuminate in yellow when the
positioning pins are inserted (extended) to the pin holes of
their respective outrigger rotaries, and illuminate in red
when they are pulled out (stowed).
[5] Outrigger (1) minimum (MIN)
[6] Outrigger (2) minimum (MIN)
[7] Outrigger (3) minimum (MIN)
[8] Outrigger (4) minimum (MIN)
These lamps light up individually to indicate that the
corresponding outrigger is in the minimum extended state
(first stage).
[9] Outrigger (1) middle (MID)
[10] Outrigger (2) middle (MID)
[11] Outrigger (3) middle (MID)
[12] Outrigger (4) middle (MID)
These lamps light up individually to indicate that the
corresponding outrigger is in the medium extended state
(second stage).
[13] Outrigger (1) maximum (MAX)
[14] Outrigger (2) maximum (MAX)
[15] Outrigger (3) maximum (MAX)
[16] Outrigger (4) maximum (MAX)
These lamps light up individually to indicate that the
corresponding outrigger is fully extended (third stage).
[17] Outrigger (1) grounding (GROUND SET-UP)
[18] Outrigger (2) grounding (GROUND SET-UP)
[19] Outrigger (3) grounding (GROUND SET-UP)
[20] Outrigger (4) grounding (GROUND SET-UP)
This lamp turns on and indicates that the outriggers are
set.
These lamps individually illuminate in yellow when the
corresponding outrigger adapter touches the ground, and
illuminate in red when it leaves the ground (stowed).
