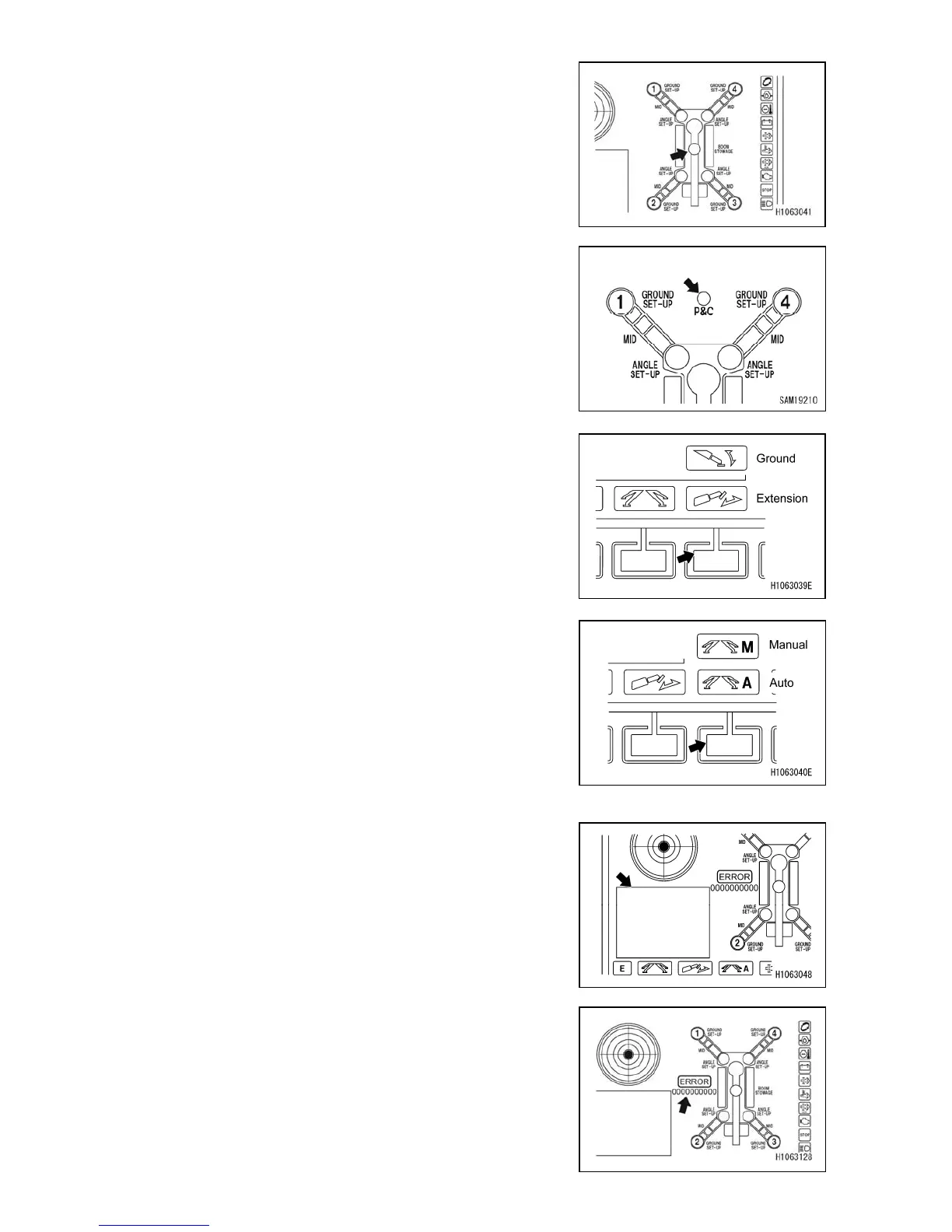

[21] Crane stow position
Illuminates in yellow when the boom has been completely
retracted with a boom angle being 0 to 3° and a slew angle
being 3 to 6°.
Otherwise, illuminates in red.
[22] Pick & Carry position
Illuminates in yellow when the machine is in Pick & Carry
posture.
When this light illuminates in yellow, outrigger can be
operated even the crane is not stowed.
For conditions of Pick & Carry posture, read the section
“OPERATION 2.26 PICK & CARRY OPERATION”.
[23] Mode selector switch (2) (Extension/Ground)
Use this switch to change the outrigger operation.
Push to display a pop-up screen. When the pop-up screen
appears, you can change the outrigger operation mode
between “Extension” and “Ground” with the pop-up select
switch (up/down) or touch screen operations.
[24] Mode selector switch (3) (Manual/Auto)
Use this switch to change the operation mode for setting
the outriggers on the ground between Manual (with the
outrigger operation panel) and Auto.
Push to display a pop-up screen. When the pop-up screen
appears, you can change the outrigger operation mode
between “Manual” and “Auto” with the pop-up select switch
(up/down) or touch screen operations.
[25] Left side-view camera monitor
Displays the left side-view of the machine.
[26] Error codes
If the machine encounters an error, an error code appears
in this area.
If an error code appears, contact us or our sales service
agent.
For details about the error codes, refer to “OPERATION
11.7 LIST OF ERROR CODES”.
