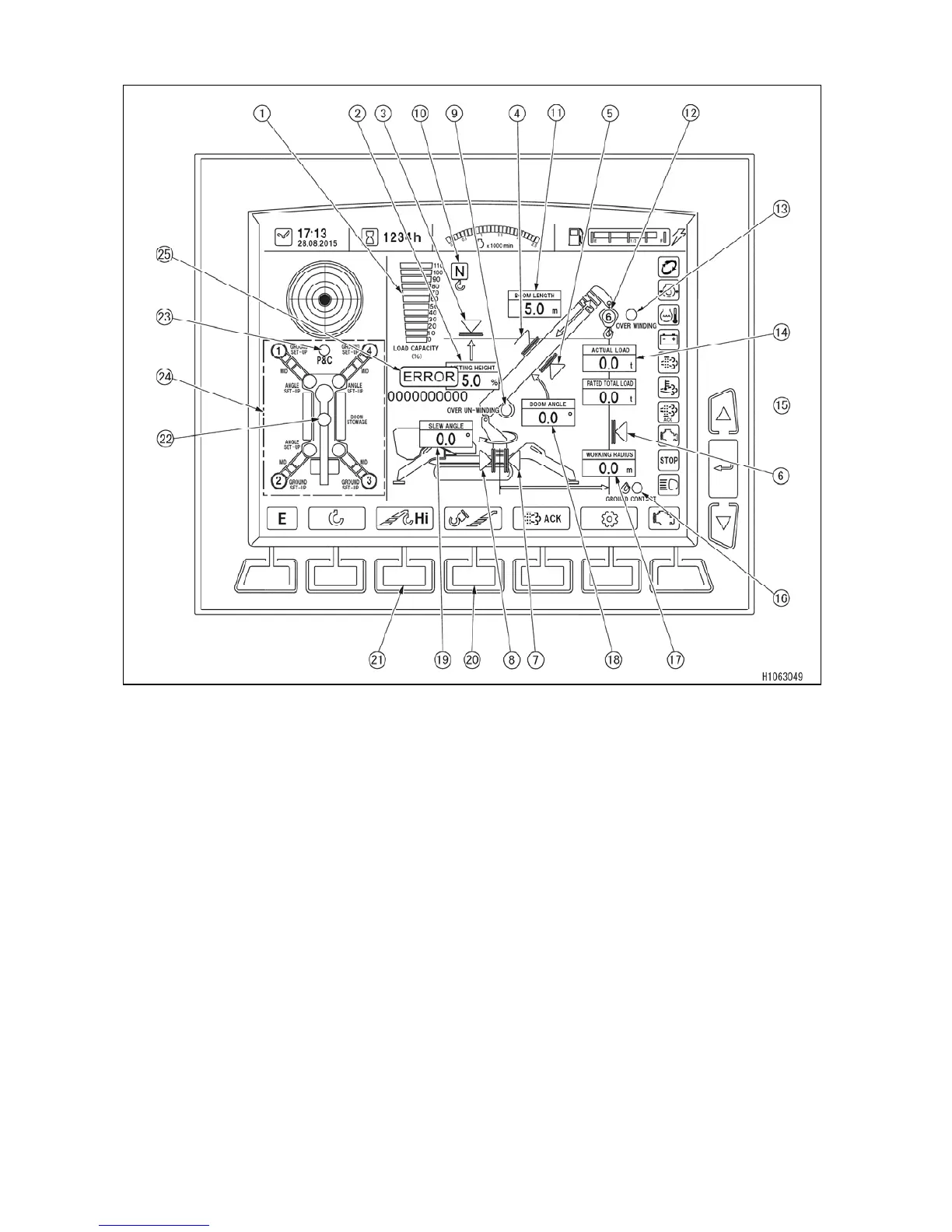

[4] MONITOR DISPLAY (CRANE MODE)
(1) Load capacity ratio indication
(2) Lifting height indication (LIFTING
HEIGHT)
(3) Lifting height limiter switch
(4) Boom angle upper limit switch
(5) Boom angle lower limit switch
(6) Working radius limiter switch
(7) Clockwise swing angle limiter switch
(8) Counter-clockwise swing angle limiter
switch
(9) Over unwinding indication (OVER
UNWINDING)
(10) Lifting mode display
(N mode, P mode, M mode)
(11) Boom length indication (BOOM
LENGTH)
(12) Indication of the number of wire falls
(13) Over winding indication (OVER
WINDING)
(14) Actual load indication (ACTUAL LOAD)
(15) Rated total load indication (RATED
TOTAL LOAD)
(16) Hook grounding indication (GROUND
CONTACT)
(17) Working radius indication (WORKING
RADIUS)
(18) Boom angle indication (BOOM
ANGLE)
(19) Slew angle indication
(20) Mode selector switch (3) (Hook
stowage/Fully automated stowage)
(21) Mode selector switch (2) (Crane
Hi/Low)
(22) Crane stowage position
(23) Pick & Carry position
(24) Outrigger related indication
(25) Error code
