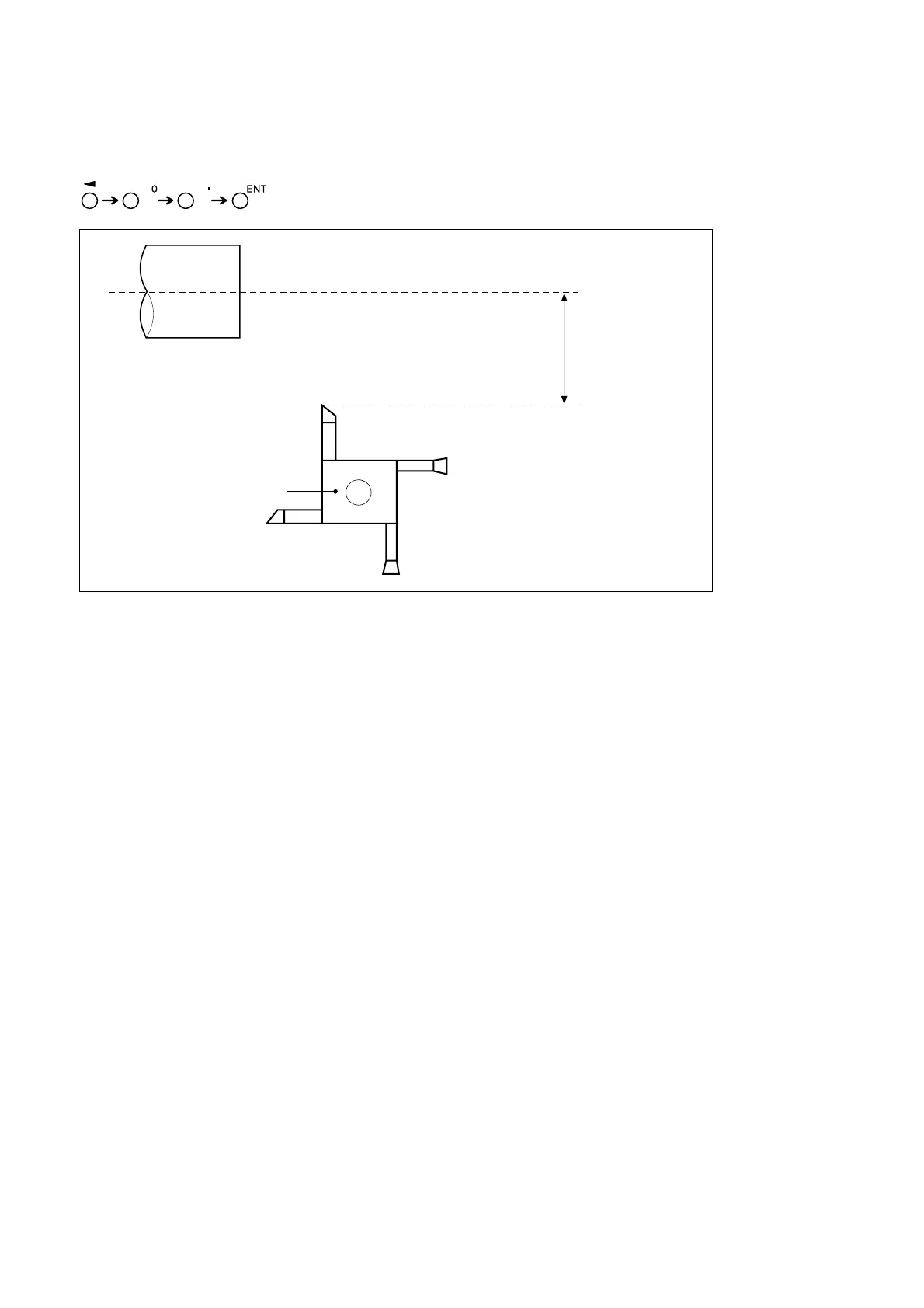

6 To designate the machined end surface as the Z-axis machining datum point, enter “0” on the Z-axis and
press the datum point setting key.
Workpiece
X-axis machining
datum point
Current position
Tool No. 1
Cutting tool holder
Tool No. 2
