9-3. Remote reset input circuit
• When using the remote reset, connect the remote reset input terminal to the (GND) common terminal for
at least 10 ms.
Before inputting the remote reset a second time, set the unit to OFF for at least 70 ms.
• Use SN75451or SN75452 for an electronic switch.
• Use a shielded cable for connection and connect the shield sheath to the shell of the supplied connector.
The common pin should be wired separately from the shield sheath.
(Prepare a proper switch and a shielded cable by yourself.)

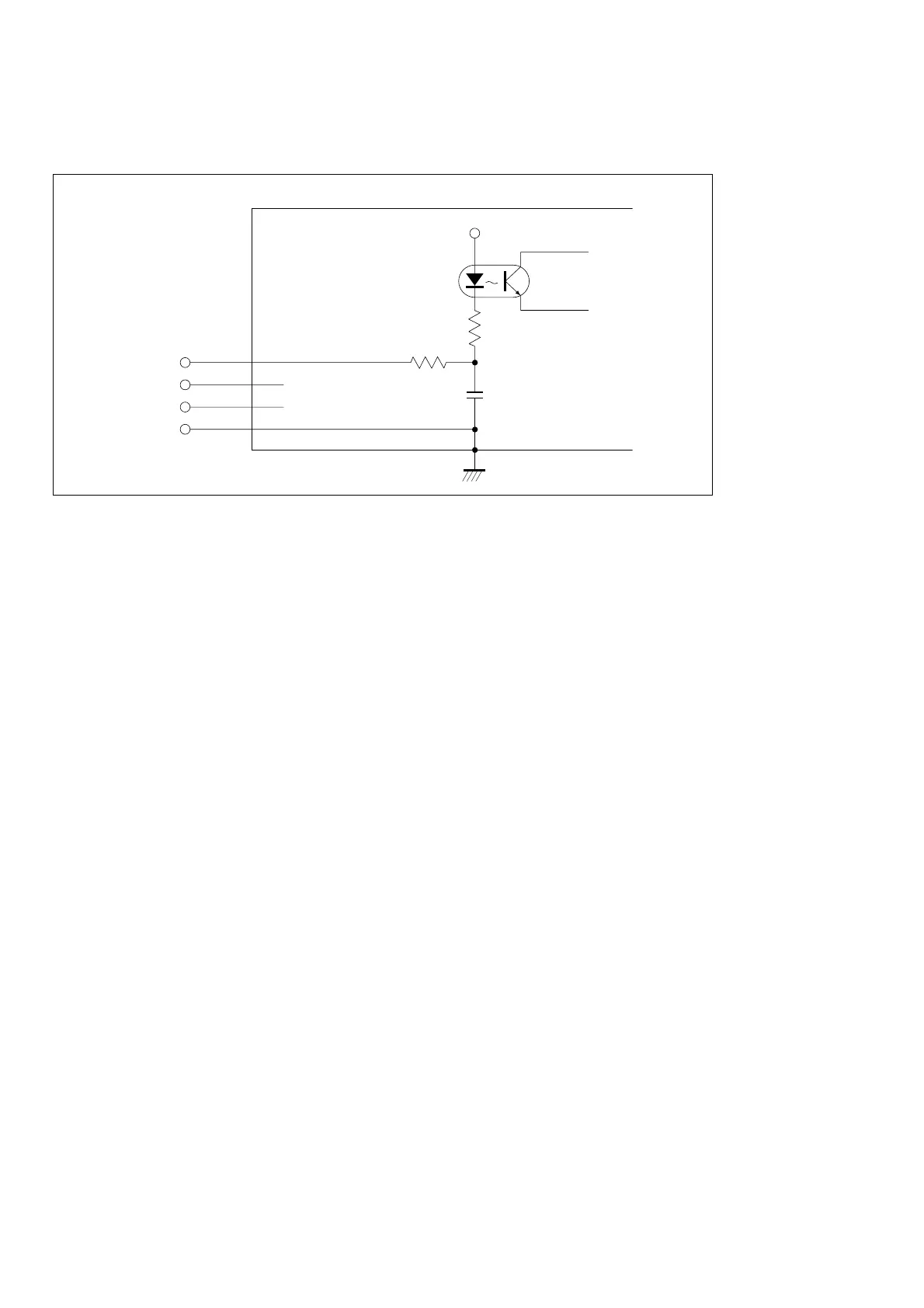

9. Remote Reset Input Connector
To internal circuit
Connector pin numbers
LH71A LH72
to X-axis, to X-axis
to Y-axis, to Z-axis
to Z-axis, —
Rear panel of counter unit
+5 V
390 Ω
220 Ω
4.7 µF/50 V
1
2
3
4
