Magnescale LH71A - 9 Remote Reset Input Connector; Pin Numbers of Remote Reset Input Connector; Interface Cable

(E) 9-1
LH71A / LH72
Connector plug (supplied) Hosiden Corporation TCP 1354-71-5011 (DIN Standard No. 41524)
LH71A
Cross section of the cable
Outer sheath
Shield
9. Remote Reset Input Connector
The display can be remote-reset to zero by connecting a mechanical or electronic (IC) switch to the remote
reset input connector.
The input circuit of each axis is as shown below.

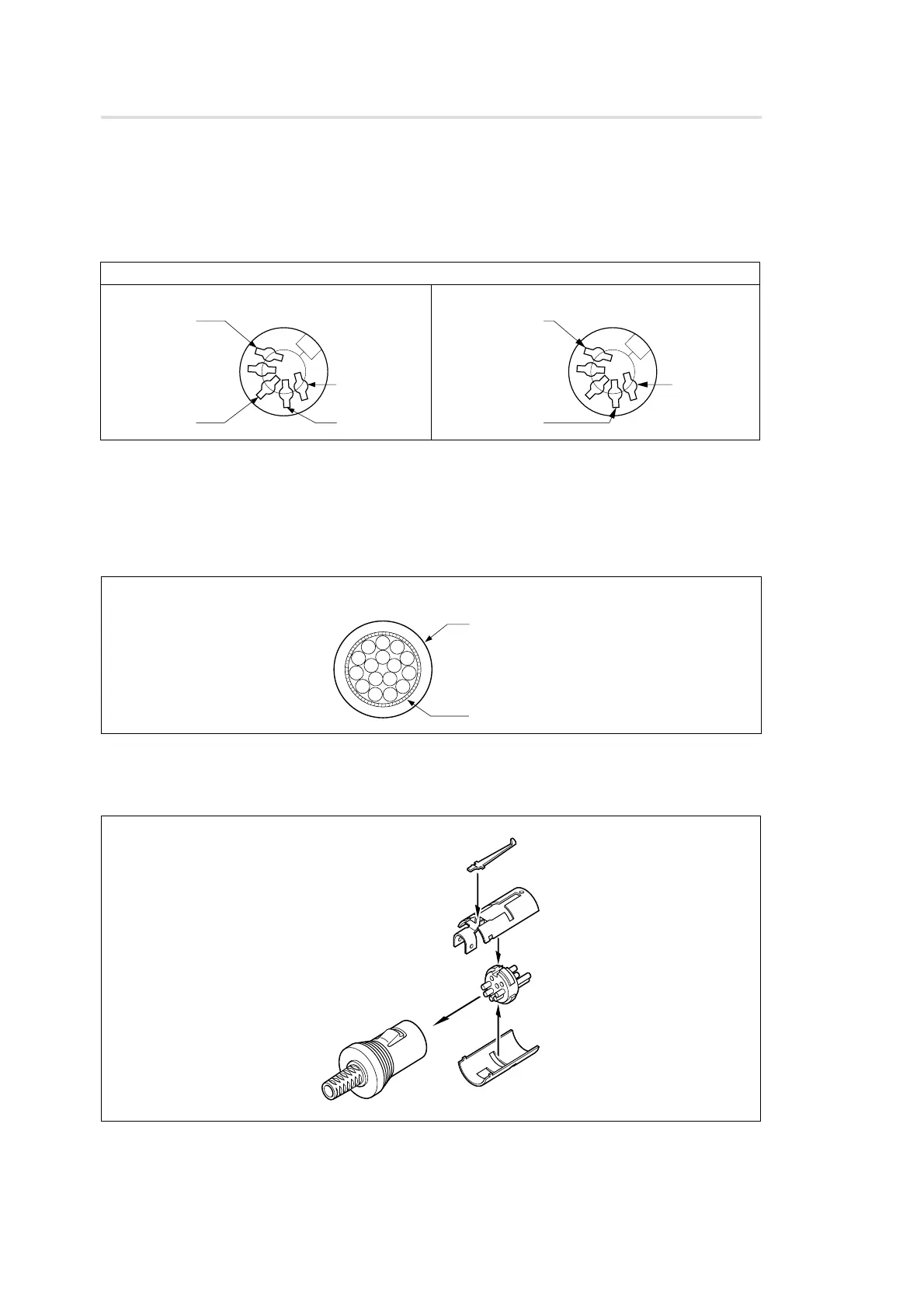

9-1. Pin numbers of remote reset input connector
9-2. Interface Cable
The interface cable to be connected to the remote reset input connector must be shielded as follows.
(The cable length should be no more than 30 m.)
Assembly of the external reset connector
Z-axis
Common
X-axis
Y-axis
1
4
2
5
3
LH72
Common
Z-axis
X-axis
1
4
2
5
3
