Manitowoc 2250 Service And Maintenance Manual

Reference Only
ELECTRIC SYSTEM 2250 SERVICE/MAINTENANCE MANUAL
3-6
Published 11-06-15, Control # 040-13
Circuit
Breaker
Amps Wire No. Description of Items Protected

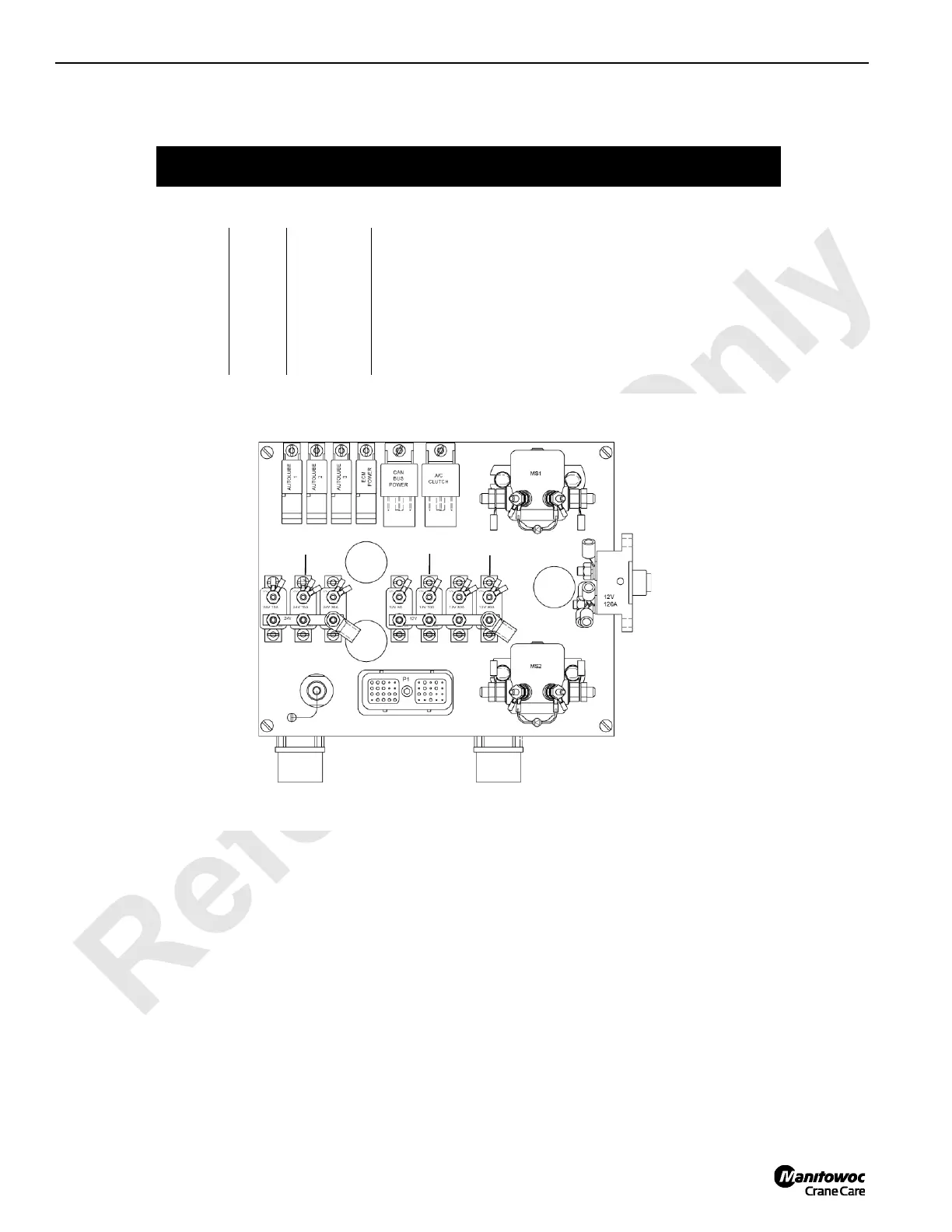

Engine Controller Module Breakers For Tier 4 Cummins QSX-15 Power Plant
CB Numbers are per the Electrical Schematic
CB-5 15 6A3 CAN Power
CB-6 15 6A4 Autolube
CB-7 30 6A1 Starter Solenoid
CB-2 8 5C3 Engine ECM
CB-3 10 5C2 Engine Diagnostics
CB-4 30 5C1 Engine ECM
CB-8 30 58 A/C Clutch
CB-5
CB-7
CB-8
CB-9
CB-10
CB-11
CB-7
81015878_1
FIGURE 3-5
