2250 SERVICE/MAINTENANCE MANUAL ELECTRIC SYSTEM
3
Circuit
Breaker
Amps Description of Items Protected
Cold Weather Package Circuit Breakers
1 50 Cold Weather Package Main Load Center Circuit Breaker
2 20 Engine Coolant Heater
3 15 Control Console and Treadle Valve Heaters
4 15 Hydraulic Reservoir, Engine Oil, and Battery Pad Heaters
5 15 Air Dryer
6 15 Moisture Ejector
7 25 Air Dryer and Moisture Ejector Junction Box Main Breaker
1
2
3
4

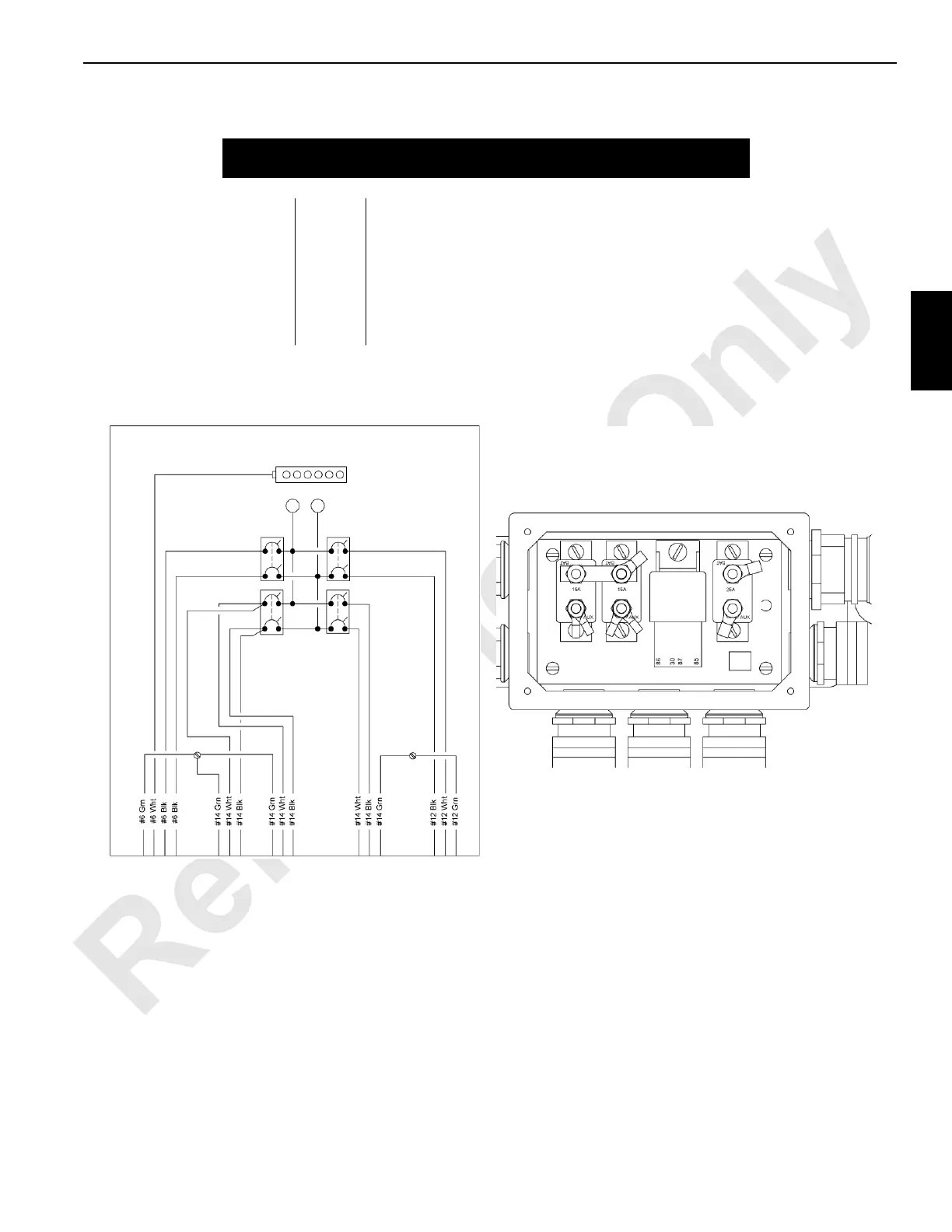

Circuit Breaker Load Center
5
6
7
Air Dryer and Moisture Ejector Junction Box
81004291_1
81004294
FIGURE 3-6
