Manitowoc 2250 Service And Maintenance Manual

Reference Only
INTRODUCTION 2250 SERVICE/MAINTENANCE MANUAL
1-16
Published 11-06-15, Control # 040-13
End View
19
24
26
28
30
32
34
36
25
27
29
31
33
35
37
20
Spares
A1088

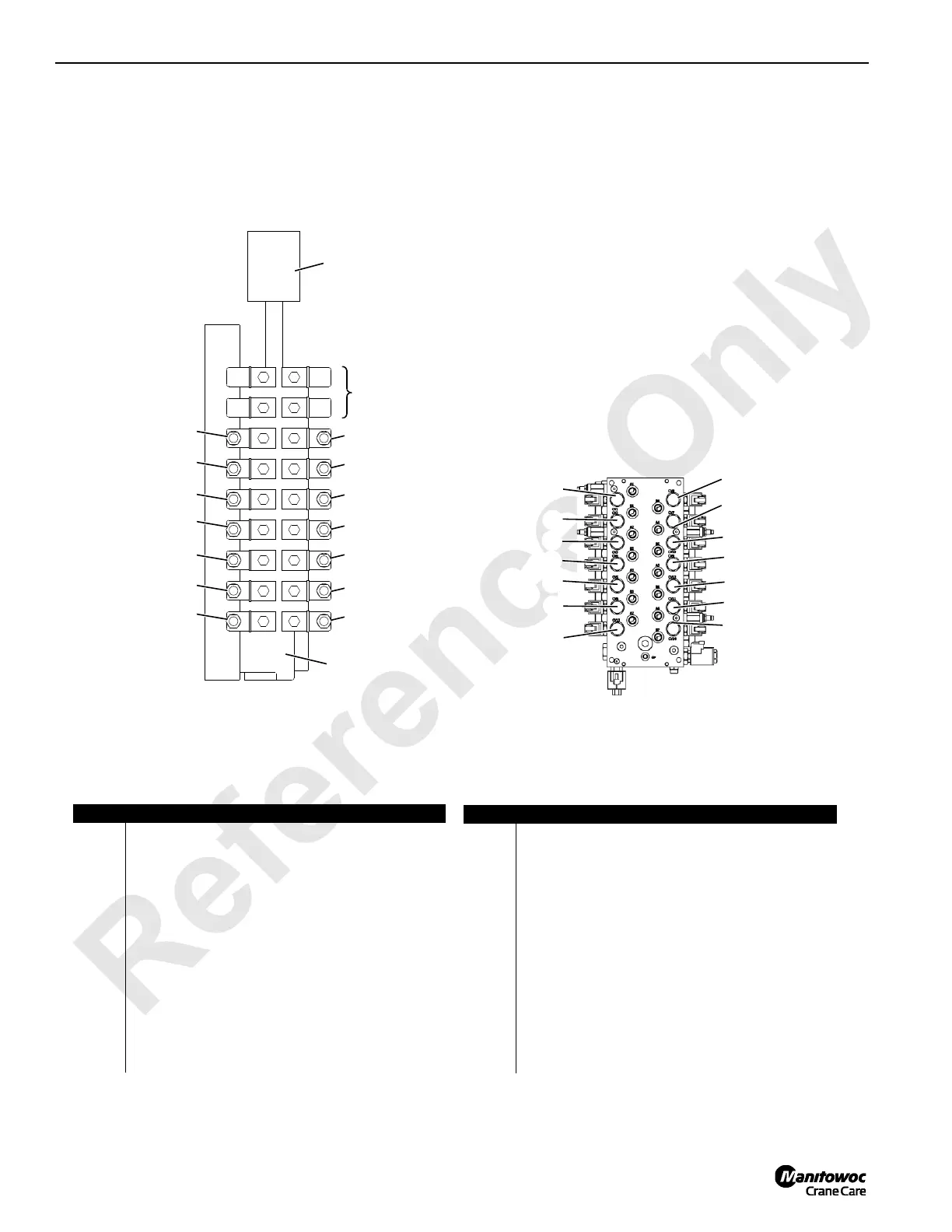

FIGURE 1-6 continued
Current Production
Past Production
Item Description
24 Right Front Jack Retract Solenoid Valve
25 Right Front Jack Extend Solenoid Valve
26 Right Rear Jack Retract Solenoid Valve
27 Right Rear Jack Extend Solenoid Valve
28 Left Rear Jack Retract Solenoid Valve
29 Left Rear Jack Extend Solenoid Valve
30 Left Front Jack Retract Solenoid Valve
31 Left Front Jack Extend Solenoid Valve
32 Front Frame Pins Retract Solenoid Valve
33 Front Frame Pins Extend Solenoid Valve
34 Rear Frame Pins Retract Solenoid Valve
35 Rear Frame Pins Extend Solenoid Valve
36 Gantry Cylinders Retract Solenoid Valve
37 Gantry Cylinders Extend Solenoid Valve
Item Description
24 Right Front Jack Retract Solenoid Valve
25 Right Rear Jack Extend Solenoid Valve
26 Right Front Jack Retract Solenoid Valve
27 Right Rear Jack Retract Solenoid Valve
28 From Frame Pins Retract Solenoid Valve
29 Left Rear Jack Extend Solenoid Valve
30 Front Frame Pins Extend Solenoid Valve
31 Left Rear Jack Retract Solenoid Valve
32 Left Front Jack Retract Solenoid Valve
33 Rear Frame Pins Extend Solenoid Valve
34 Left Front Jack Extend Solenoid Valve
35 Rear Frame Pins Retract Solenoid Valve
36 Gantry Cylinders Retract Solenoid Valve
37 Gantry Cylinders Extend Solenoid Valve
25
24
26
28
30
32
34
36
27
29
31
33
35
37
24
26
192115_3a
End View
