10 3 302 710 en Additional pages GMK4100L-1
Brakes

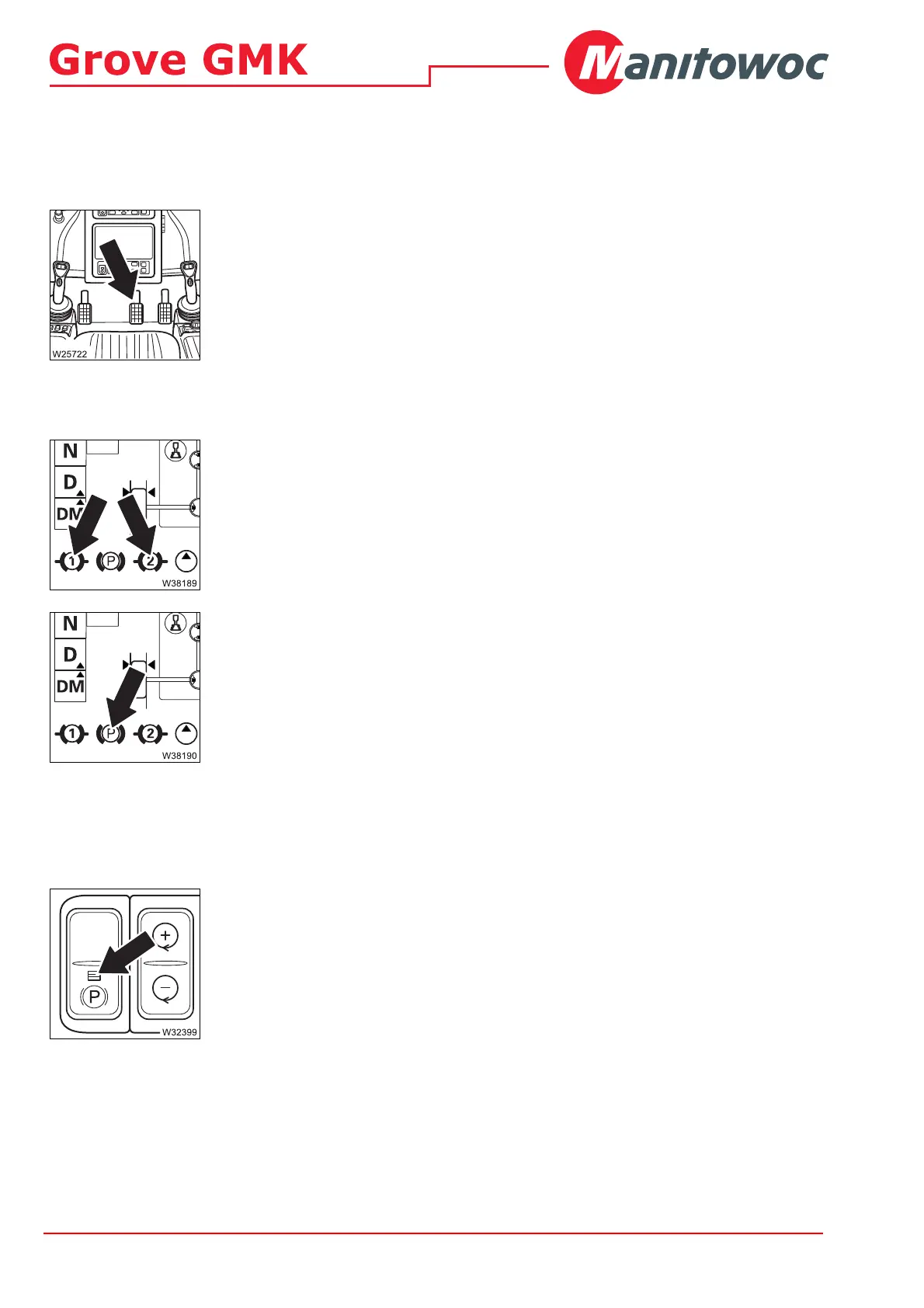

Service brake
The pedal acts on the carrier brakes – for continuously variable adjustment
of the braking force.
CCS display
Supply pressure brake circuits 1 and 2 display
Parking brake indicator lamp
Side panel from
above
Parking brake indicator lamp
–Red: Supply pressure less than approx. 5 bar
– Green: Supply pressure greater than 5.5 bar
–Red: Parking brake applied
– Grey: Parking brake released
–On: Parking brake applied
–Out: Parking brake released
