Operating elements for driving
3.1 Overview of the operating elements
Operating manual 3 302 690 en 3 - 27
GMK4100L-1
23.11.2017

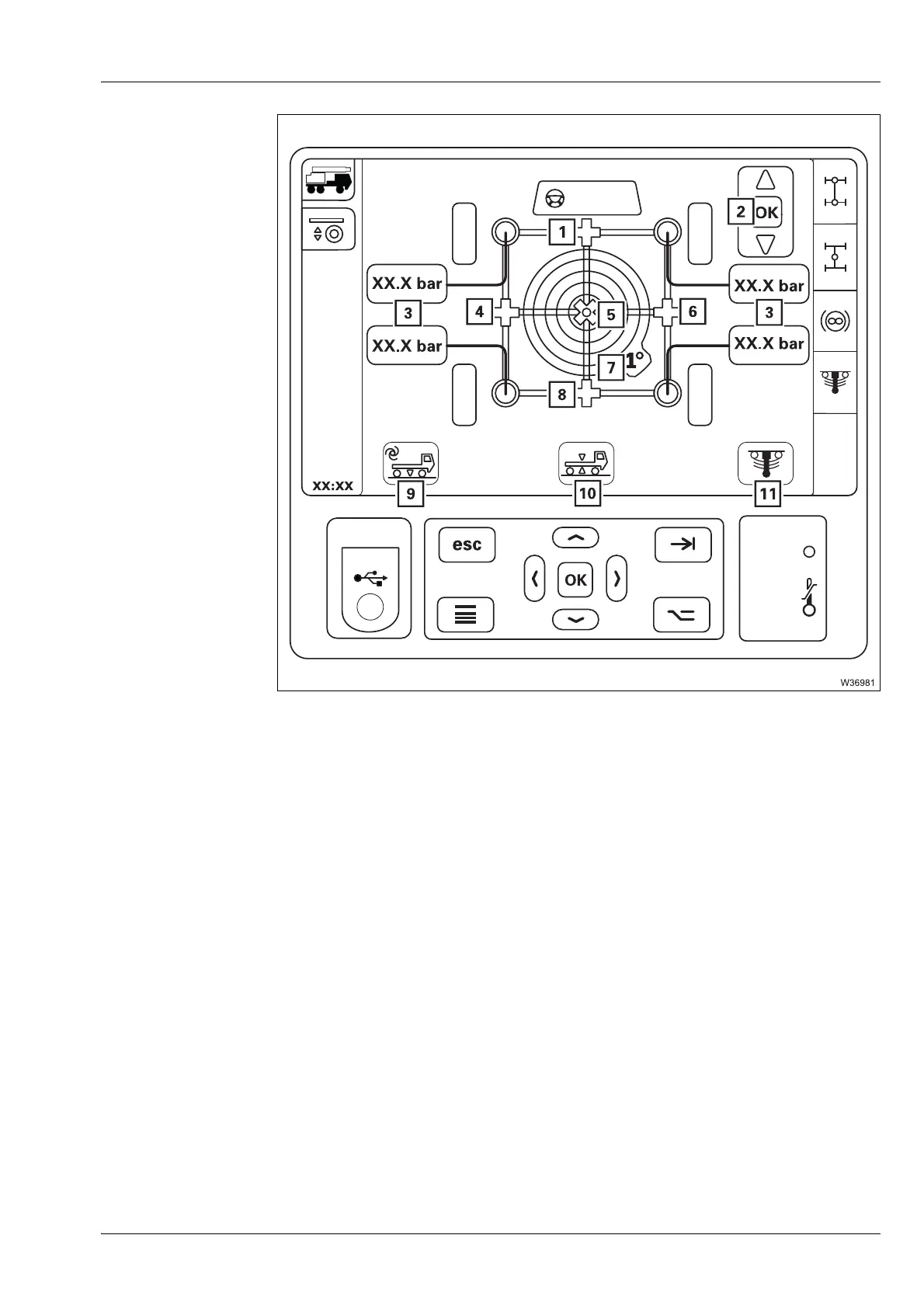

Suspension/ level
adjustment menu
s
1 Front level pre-selection à p. 3 - 68
2 Level adjustment system enabled display
à p. 3 - 68
3 Suspension operation pressure gauge
à p. 3 - 64
4 Left level pre-selection
à p. 3 - 68
5 Overall level pre-selection
à p. 3 - 68
6 Right level pre-selection
à p. 3 - 68
7 Display of current inclination
à p. 3 - 69
8 Rear level pre-selection
à p. 3 - 68
9 Setting the on-road level
à p. 3 - 69
10 Vehicle level display
à p. 3 - 69
11 Suspension on/off
à p. 3 - 64
