Manitowoc Grove GMK4100L-1

Operating elements for driving
3.1 Overview of the operating elements
3 - 28 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

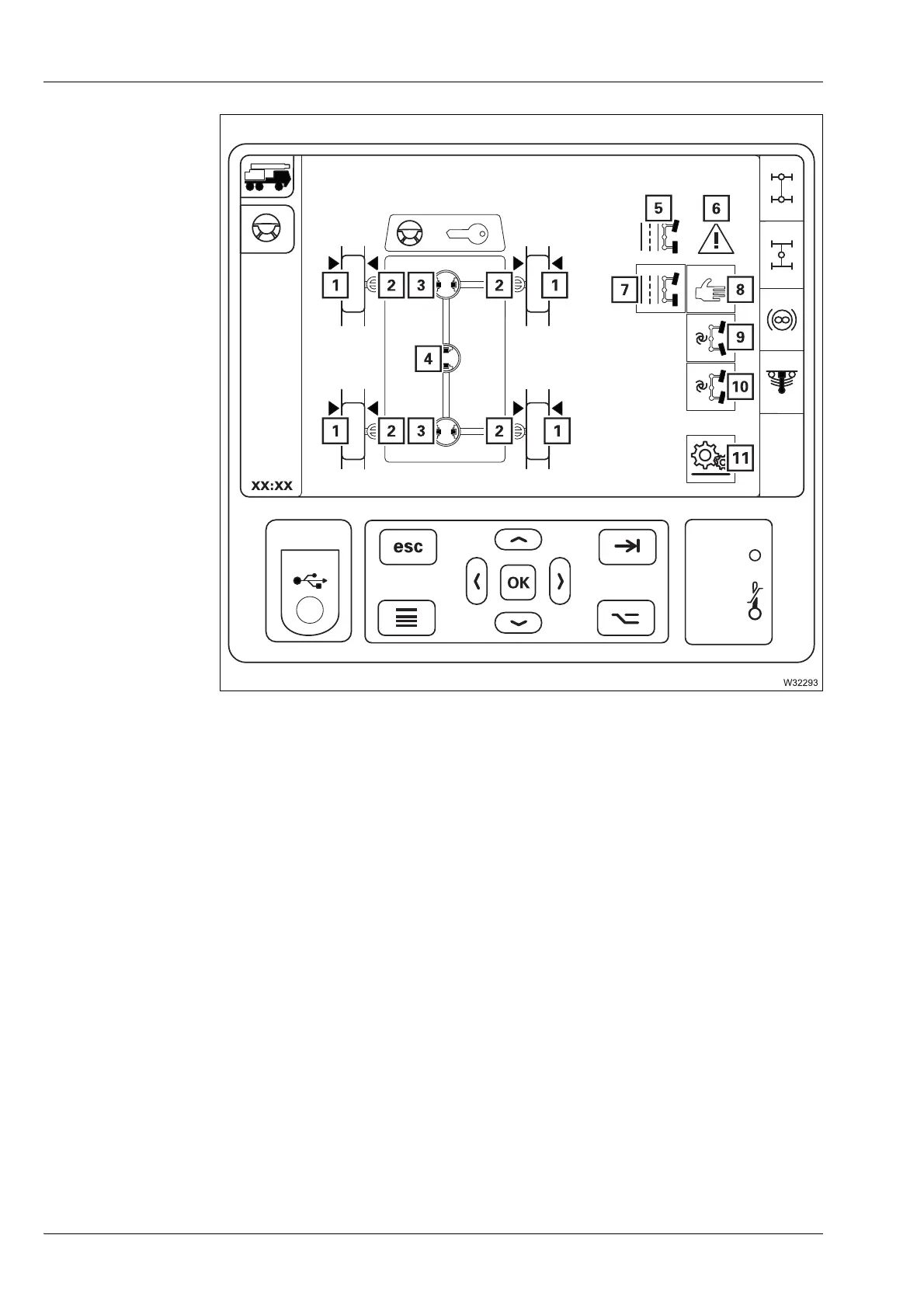

Driving menu
1 Current wheel position display
à p. 3 - 63
2 Steering locking status display
à p. 3 - 63
3 – Transverse differential locks display
– Transverse differential locks on/off
à p. 3 - 56
à p. 3 - 56
4 – Longitudinal differential lock display
– Longitudinal differential lock on/off
à p. 3 - 57
à p. 3 - 57
5 Steering mode display
à p. 3 - 62
6 Steering system malfunction/warning
à p. 3 - 61
7 Normal steering mode, on-road driving, on/off
à p. 3 - 62
8 Manual separate steering on/off
à p. 3 - 62
9 Separate steering for driving around corners on/off
à p. 3 - 62
10 Separate steering crab travel mode on/off
à p. 3 - 62
11 – Transfer case display
– Transfer case for off-road gear on/off
à p. 3 - 55
à p. 3 - 55
