Operating elements for driving
3.2 Short description of the operating elements
3 - 66 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

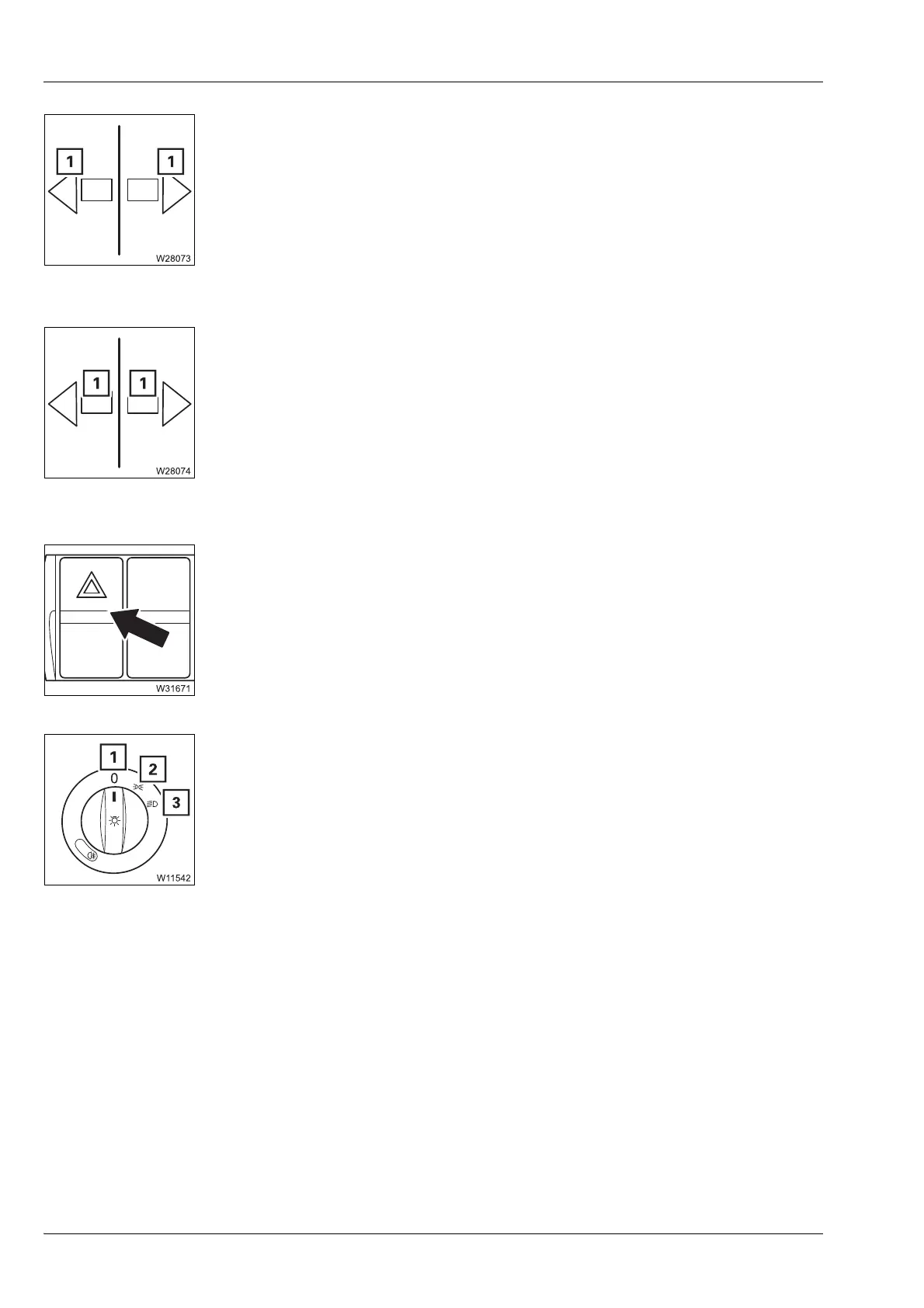

Indicator lamp for turn signal indicator
Indicator lamp for trailer turn signal indicator
Hazard warning system on/off
Lighting on/off
1 – Flashing: Turn signal indicator on
–Out: Turn signal indicator off, or turn signal indicator on
and filament lamp faulty
1 – Flashing: Turn signal indicator on and trailer electrically
connected
–Flashes
once:
Turn signal indicator on and trailer not electrically
connected
–Out: Turn signal indicator off
– To switch on: Press downwards – light in the switch flashes
– To switch off: Press in above – gone out
1 Light off
2 Parking light on Instrument lighting on
3 Headlight on Full beam can be switched on using the multipur-
pose switch, daytime driving light off
