Operating elements for driving
3.2 Short description of the operating elements
Operating manual 3 302 690 en 3 - 67
GMK4100L-1
23.11.2017

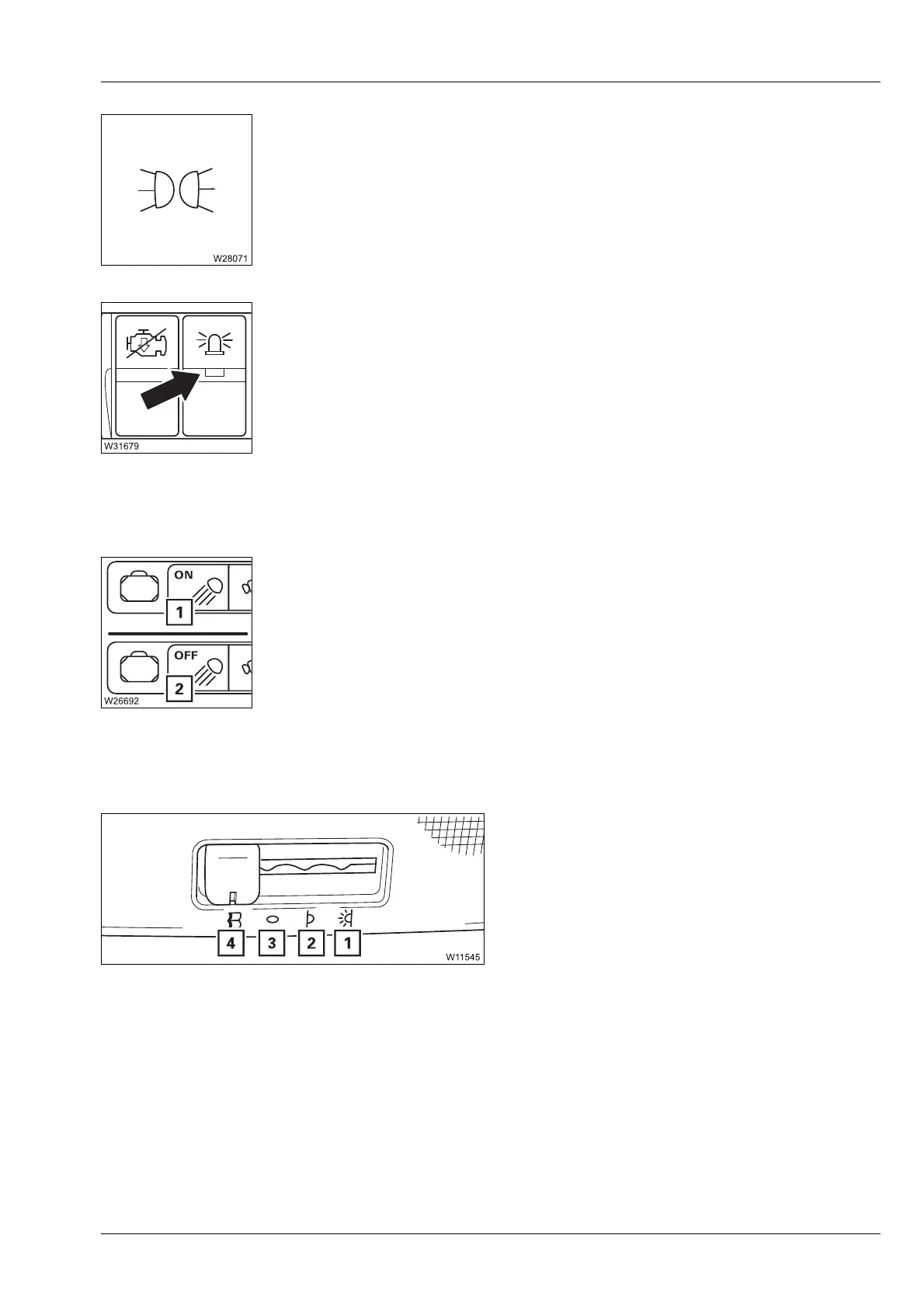

Checking headlight
Rotating beacon on/off
CCS display
Outrigger lighting on/off
Roof The lamps on the driver's and passenger's side are identical.
Cab lighting
–Lit: Headlight on
–Out: Headlight off
– To switch on: Push up
– To switch off: Push down
– To switch on: Select and confirm symbol (2)
– To switch off: Select and confirm symbol (1)
1On
2 On/off via door contact
3Off
4 Reading lamp on
