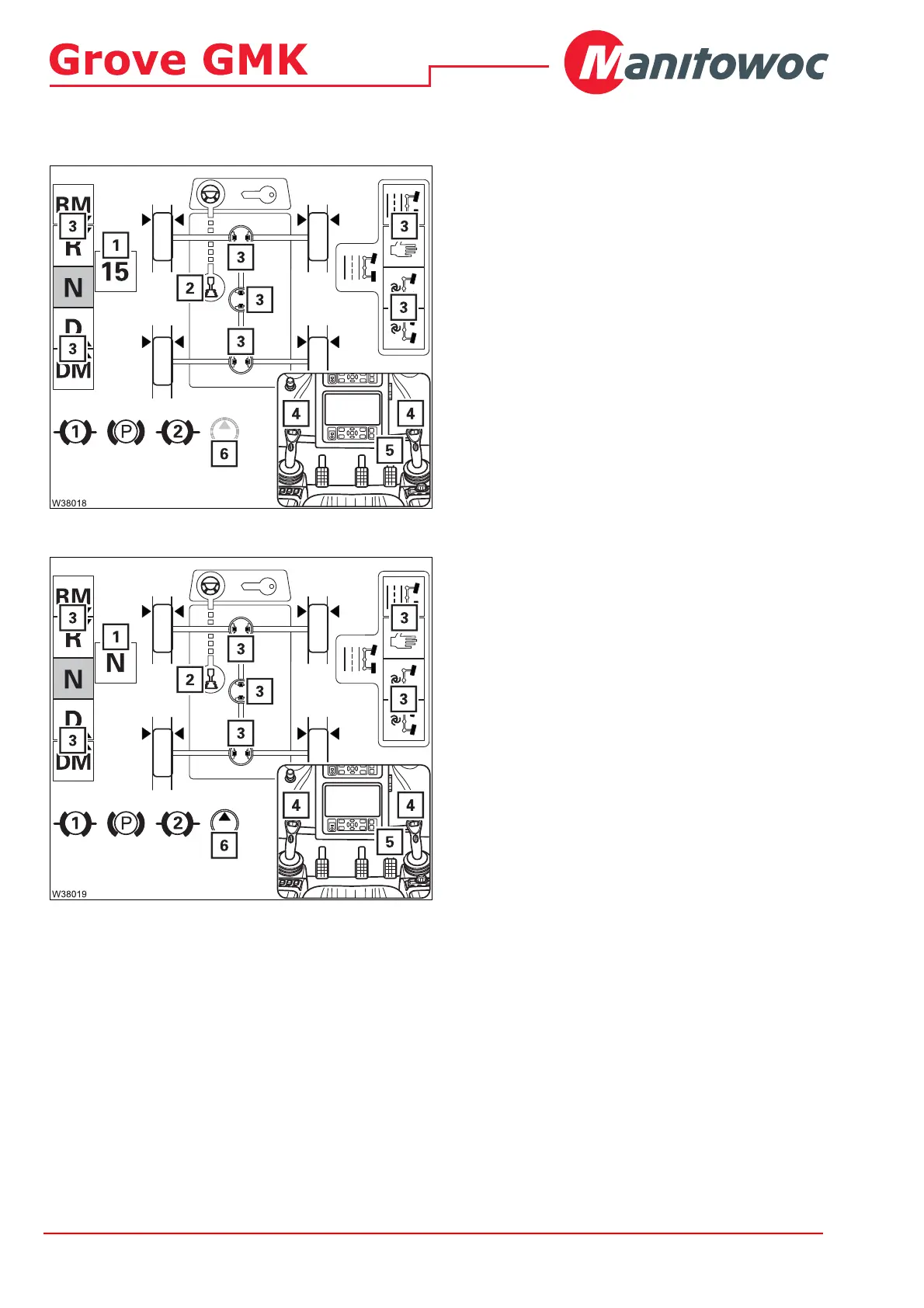

In crane operation
The symbol (2) is white.
The gear indicator (1) indicates gear 15 (shift
position for supplying the crane's hydraulic
system).
The operating elements (3) are disabled.
The buttons (4) are assigned the
High-speed
function.
The crane's hydraulic system
Driving mode is
switched off – symbol (6) grey.
The engine speed for crane operation is
regulated using the pedal (5).
In driving operation
The symbol (2) is green.
The transmission is in neutral position –
display (1).
The operating elements (3) are released.
The buttons (4) are assigned the
Steering
function.
The crane's hydraulic system
Driving mode is
switched on – symbol (6) orange.
The engine speed for driving is regulated
using the pedal (5).
