Manitowoc Grove GMK4100L-1

Operating elements for crane operation
9.1 Overview of the operating elements
9 - 46 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

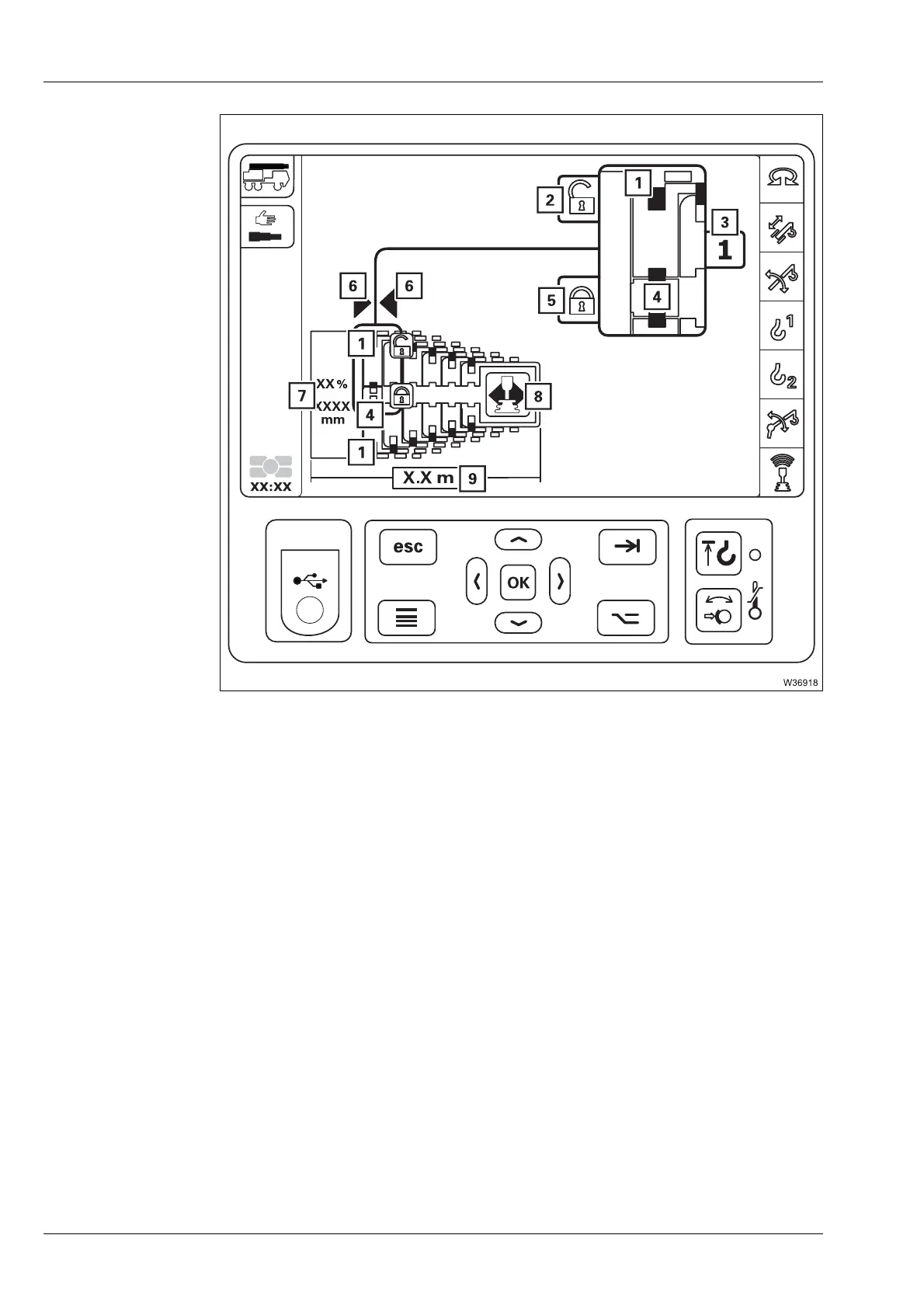

Manual tele-
scoping menu
1 Locking status telescopic section display à p. 9 - 126
2 Symbol lock/release telescopic section
à p. 9 - 126
3 Telescoping cylinder in the telescopic section display
à p. 9 - 127
4 Locking status telescoping cylinder display
à p. 9 - 125
5 Locking/releasing the telescoping cylinder
à p. 9 - 126
6 Locking point display
à p. 9 - 125
7 Telescoping cylinder length display
à p. 9 - 126
8 Telescoping direction display
à p. 9 - 127
9 Main boom length display
à p. 9 - 126
