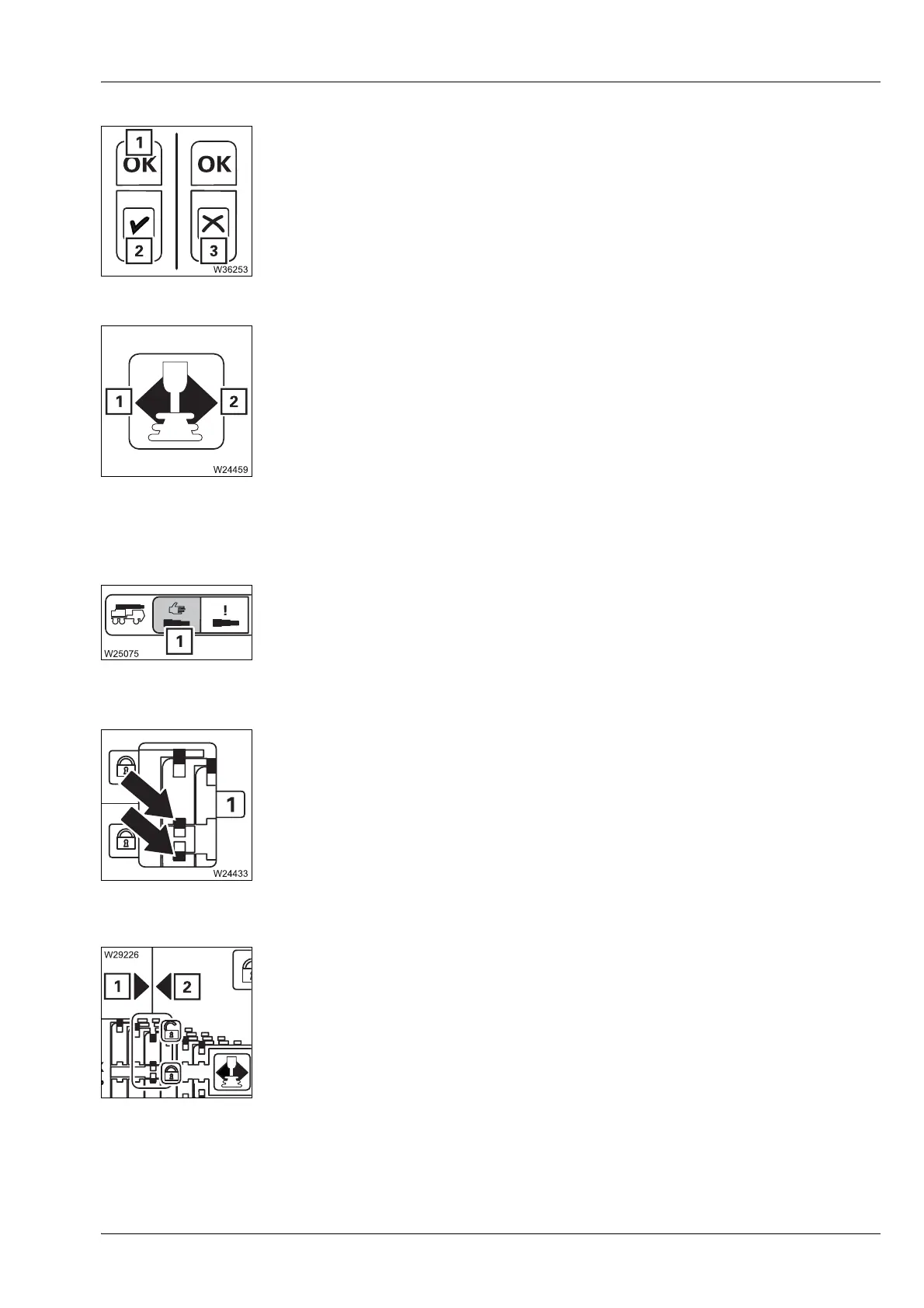

Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual 3 302 690 en 9 - 125
GMK4100L-1
23.11.2017
Confirm pre-selection
Teleautomation direction display
Manual tele-
scoping menu
Telescoping cylinder locked/released
Locking point display
s
1 Confirm pre-selected telescoping
2 Telescoping permitted display
3 Telescoping not permitted display
à p. 11 - 110
1 Start telescoping full automation with
Retract
2 Start telescoping full automation with Extend
à p. 11 - 110
To open: Select symbol (1) and confirm – menu is opened
– Display Yellow: Locking pins intermediate position
Green: Telescoping cylinder locked
Red: Telescoping cylinder unlocked
1 Extend telescoping cylinder
2 Retract telescoping cylinder
