Manitowoc Grove GMK4100L-1

Operating elements for crane operation
9.2 Short description of the operating elements
9 - 124 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

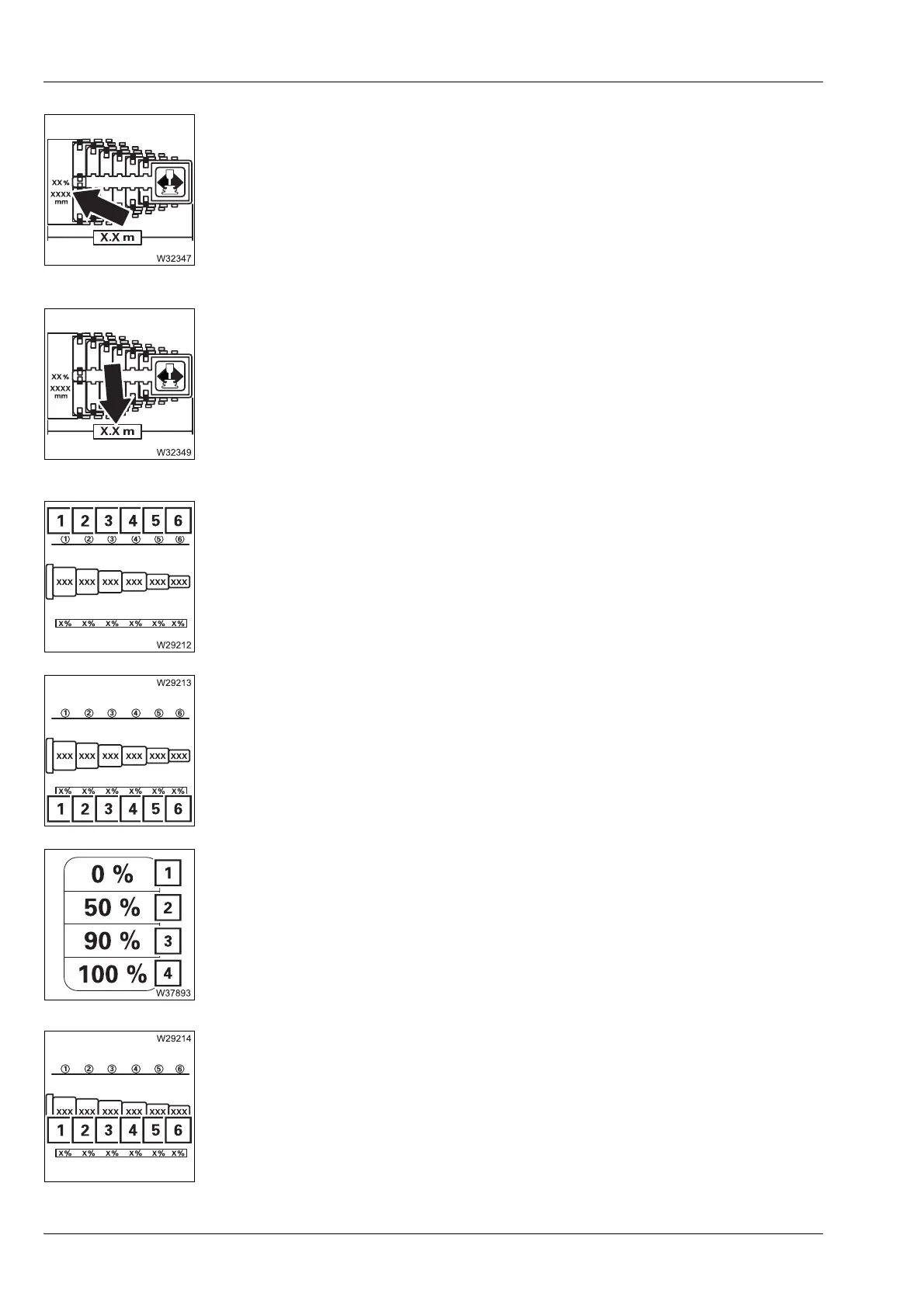

Telescoping cylinder length display
Main boom length display
Telescopic sections display
Current telescope status display
Extended length of the telescopic sections in percentage
Pre-selection for all telescopic sections
Pre-selection individual telescopic sections
–Display: Current extended length of the telescoping cylinder
– Unit of measure-
ment:
Displayed in % (per cent) and, depending on setting,
mm (millimetres) or ft (feet)
à p. 11 - 110
–Display: Current extended length of the main boom
– Unit of measure-
ment:
Displayed depending on setting, mm (millimetres) or
ft (feet)
à p. 11 - 110
1 - 6 Display of telescopic sections 1 to 6
1 - 6 Display of telescopic sections 1 to 6
1 Pre-selection telescoping 0%
2 Pre-selection telescoping 50%
3 Pre-selection telescope status 90% – to fixed length 92%
4 Pre-selection telescoping 100%
1 - 6 Display of telescopic sections 1 to 6
