Manitowoc Grove GMK4100L-1

Overview

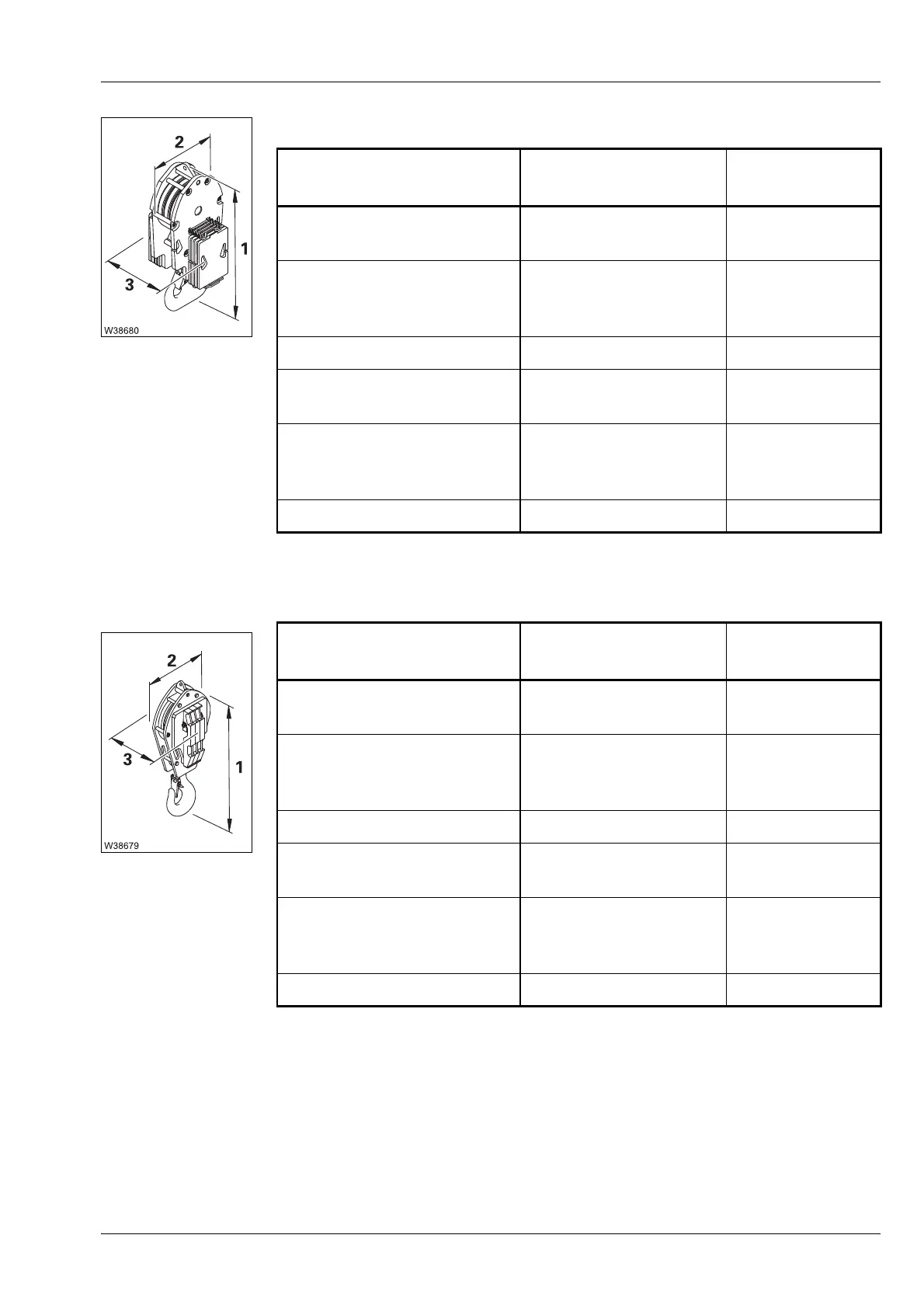

1.5 Technical data
Operating manual 3 302 690 en 1 - 13
GMK4100L-1
23.11.2017
Versions with ballast plate – Version A
Versions with ballast plate – Version B
s
Description
No.: 03296564
(1) x (2) x (3)
in m
Weight
In kg
Hook block
1 sheave with ballast plates
1.33 x 0.56 x 0.47
(4.36 x 1.84 x 1.54)
500
Hook block
1 sheave without ballast
plates
1,33 x 0.56 x 0.20
(4.36 x 1.84 x 0.65)
325
1 ballast plate 23
Hook block
3 sheave with ballast plates
0.82 x 0.50 x 0.59
(2.70 x 1.64 x 1.94)
450
Hook block
3 sheave without ballast
plates
1.36 x 0.53 x 0.19
(4.46 x 1.74 x 0.62)
275
1 ballast plate 23
Description
No.: 03296564
(1) x (2) x (3)
in m
Weight
In kg
Hook block
1 sheave with ballast plates
1.41 x 0.56 x 0.44
(4.63 x 1.84 x 1.44)
450
Hook block
1 sheave without ballast
plates
1.41 x 0.56 x 0.35
(4.63 x 1.84 x 1.15)
325
1 ballast plate 19
Hook block
3 sheave with ballast plates
1.47 x 0.56 x 0.51
(4.82 x 1.84 x 1.67)
950
Hook block
3 sheave without ballast
plates
1.36 x 0.53 x 0.30
(4.46 x 1.74 x 0,98
440
1 ballast plate 25
