Rigging work
12.8 Outrigger operation
Operating manual 3 302 690 en 12 - 45
GMK4100L-1
23.11.2017

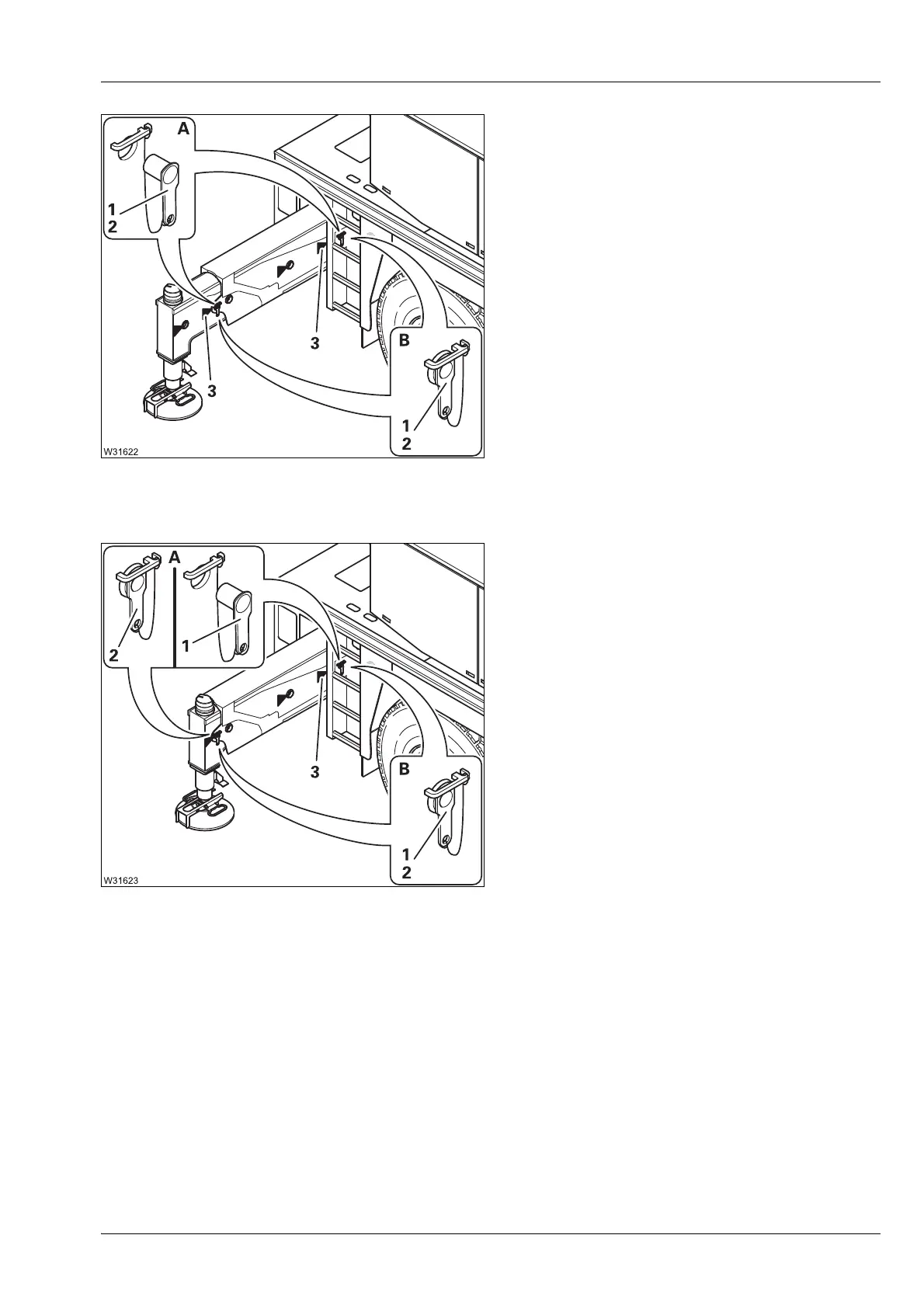

Outrigger span (80%)
Overall width 8.660 x 6.250 m (28.4 x 20.5 ft)
Individual width 8.660 x 3.125 m (28.4 x 10.3 ft)
(A) – Prerequisites
Pins (1) and (2) must be pulled out
(B) – Setting and securing
• Extend the outrigger beam up to the mark-
ing (3).
• Secure the outrigger beam with the pins (1)
and (2).
For the overall width
• Set the same outrigger span in the same
way at the opposite outrigger beam.
Outrigger span (60%)
Overall width 8.660 x 5.300 m (28.4 x 17.4 ft)
Individual width 8.660 x 2.650 m (28.4 x 8.7 ft)
(A) – Prerequisites
– Pin (1) must be removed
– Pin (2) must be inserted
(B) – Setting and securing
• Extend the outrigger beam up to the
marking (3).
• Secure the outrigger beam with the pin (1).
• The pin (2) remains inserted.
For the overall width
• Set the same outrigger span in the same
way at the opposite outrigger beam.
