Rigging work
12.8 Outrigger operation
12 - 46 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

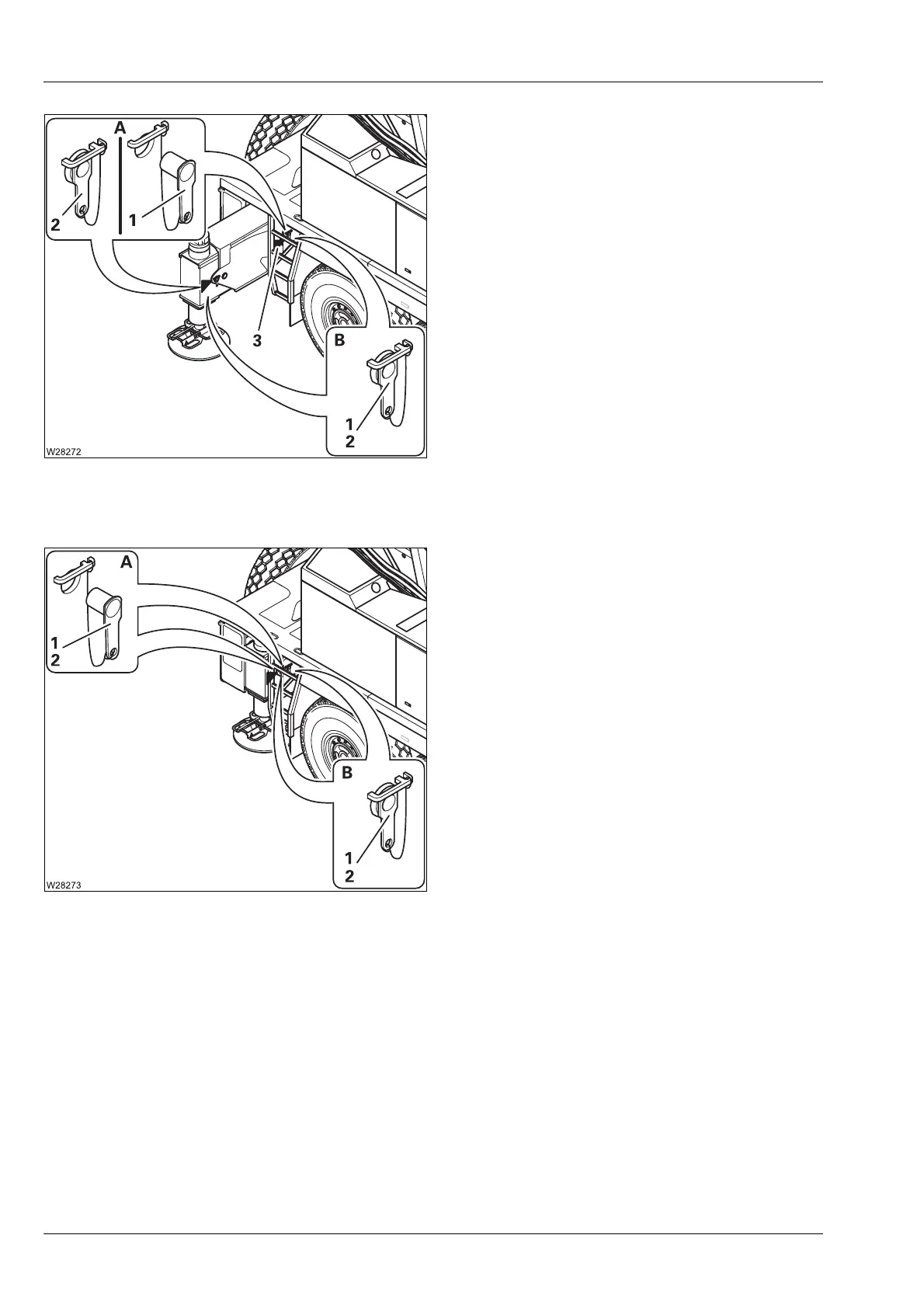

Outrigger span (40%)
Overall width 8.660 x 3.800 m (28.4 x 12.4 ft)
Individual width 8.660 x 1.90 m (28.4 x 6.2 ft)
(A) – Prerequisites
– Pin (1) must be removed
– Pin (2) must be inserted
(B) – Setting and securing
• Extend the outrigger beam up to the
marking (3).
• Secure the outrigger beam with the pin (1).
• The pin (2) remains inserted.
For the overall width
• Set the same outrigger span in the same
way at the opposite outrigger beam.
Outrigger span (0%)
Overall width 8.660 x 2.340 m (28.4 x 7.6 ft)
Individual width 8.660 x 1.170 m (28.4 x 3.8 ft)
(A) – Prerequisites
Pins (1) and (2) must be pulled out
(B) – Setting and securing
• Completely retract the outrigger beam.
• Secure the outrigger beam with the pins (1)
and (2).
For the overall width
• Set the same outrigger span in the same
way at the opposite outrigger beam.
