Manitowoc Grove GMK4100L-1

Rigging work
12.8 Outrigger operation
12 - 50 3 302 690 en Operating manual
GMK4100L-1
23.11.2017

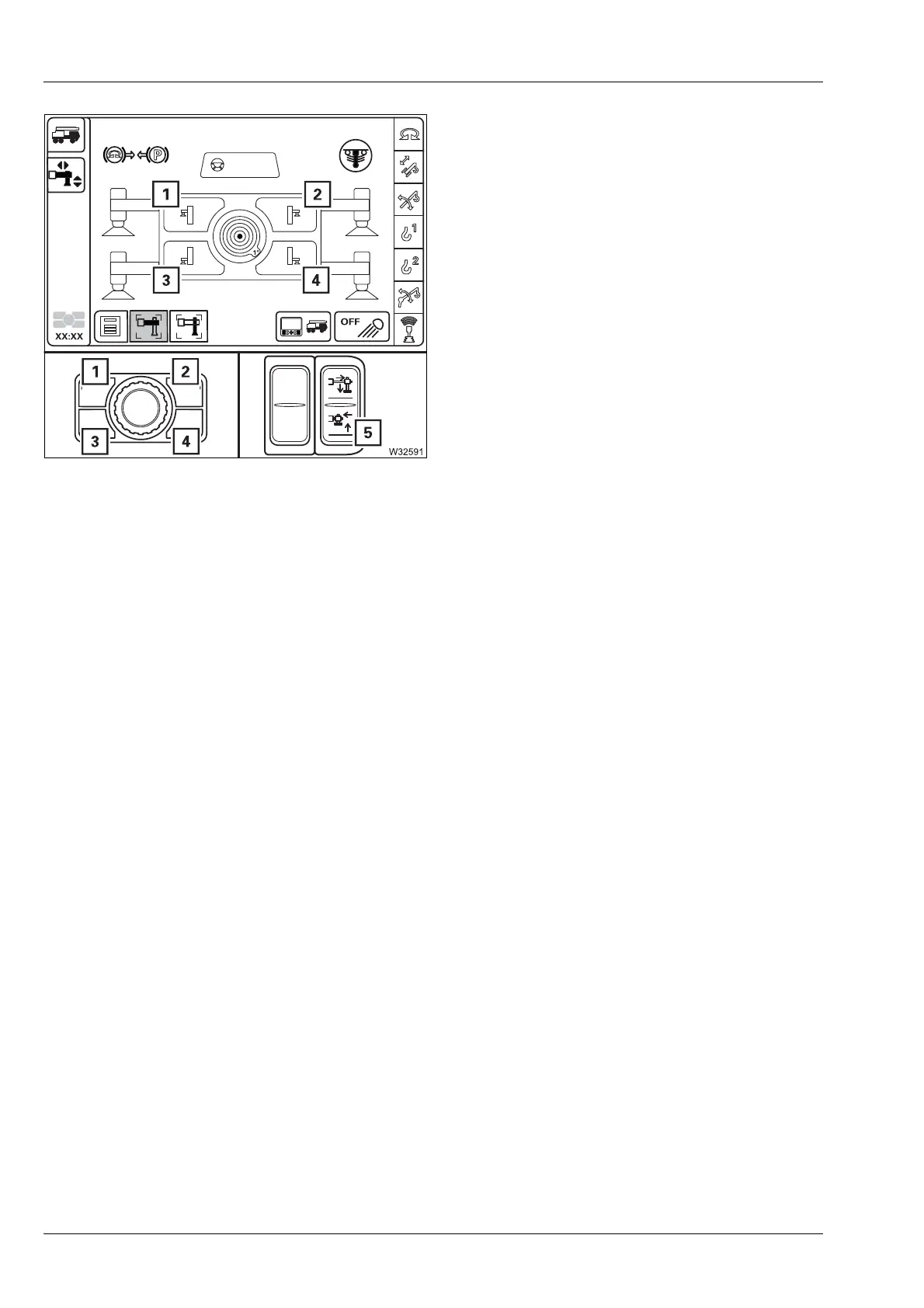

Retracting
• Press the button for the desired outrigger
beam.
• Press the button (5) in at the bottom – the
selected outrigger beam retracts.
1 Front left
2 Front right
3 Rear left
4 Rear right
