60 SyncServer 600 Series User’s Guide 098-00720-000 Revision D1 – February, 2018
Chapter 2 Installing
Signal Connections
LPN Module Connections
This module provides low phase noise 10 MHz signals on all eight ports (J1-J8).
See Figure 2-15.

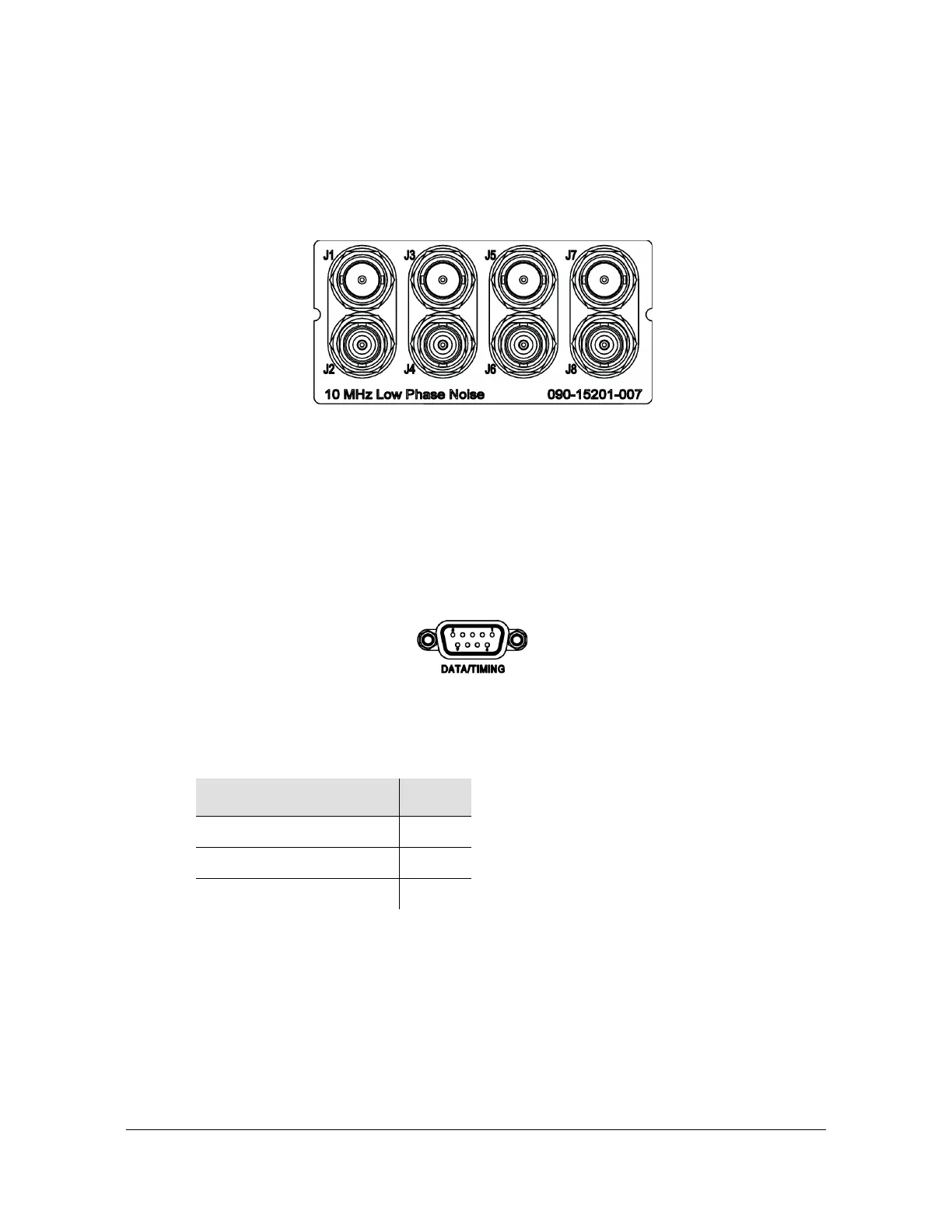

Figure 2-15. LPN BNC Connections
Serial Timing Connection
The SyncServer S6x0 features a DB-9 female connector on the rear panel of the
unit. This port supports a baud rate of 4800 to 115.2k (115200-8-1-N-1). When
connecting to this port, use a shielded serial direct connect cable. See Figure 2-16.
See Table 2-4 for pin-outs for this RJ-45 connector.
Figure 2-16. Data/Timing Connection
.
See Table B-16
in Appendix B for TOD format details.
Table 2-4. Serial Data/Timing Port Pin-Outs - DB9 Connector
Signal Pin
TXD 2
RXD 3
Ground 5
