Microsemi SyncServer S650 - Timing Status & Information; Status;Information Windows; Timing Window

76 SyncServer 600 Series User’s Guide 098-00720-000 Revision D1 – February, 2018
Chapter 4
Status / Information Windows

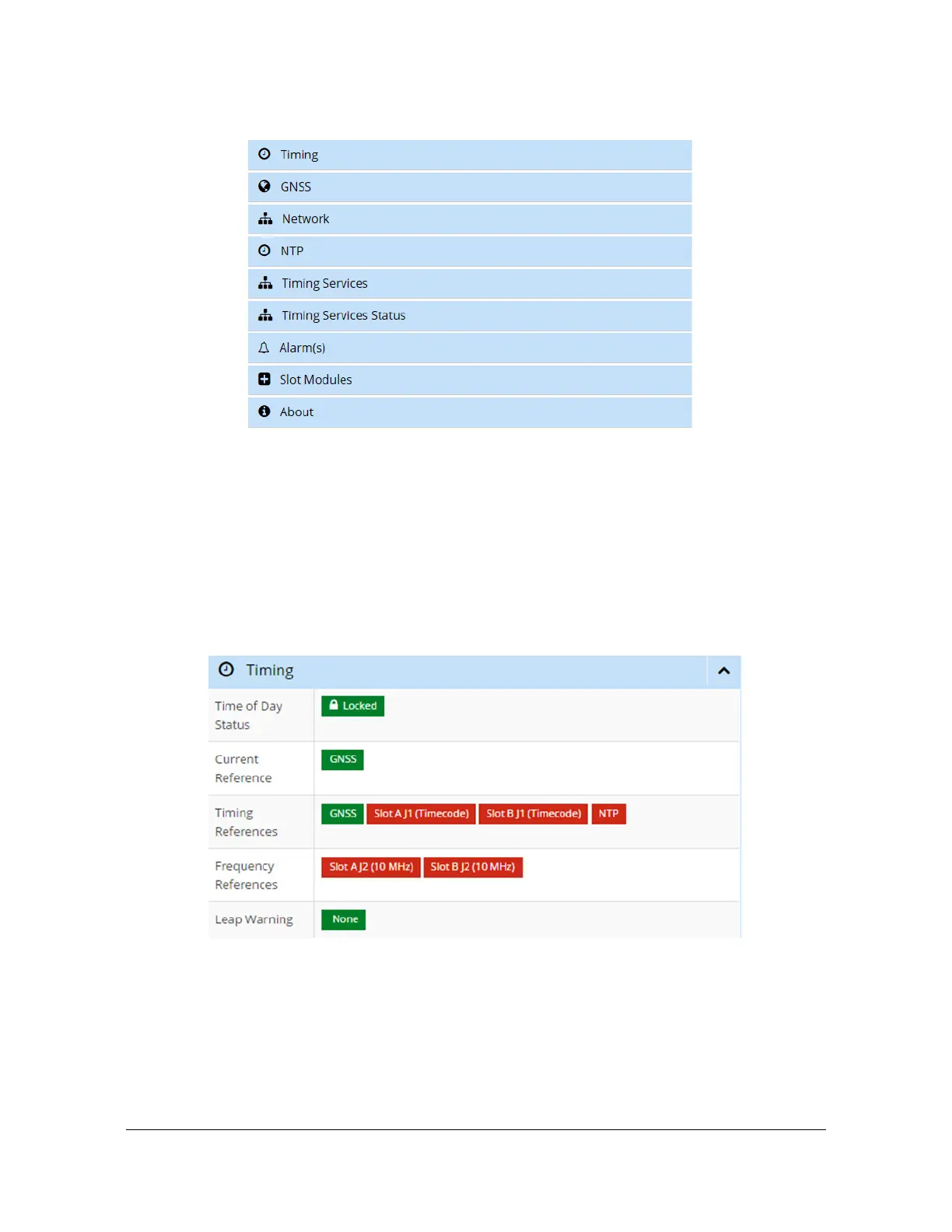

Figure 4-4. Status/Information Windows
Timing Status & Information
The Timing window in the dashboard, as shown in Figure 4-5, displays status
details and information about system timing, including current reference, lock
status, and status of input references. See Table 4-1.
Figure 4-5. Timing Window
