Rack-mounting Lynx II and 1st Generation Units
Lynx II DSA User's Manual – 7096089 187

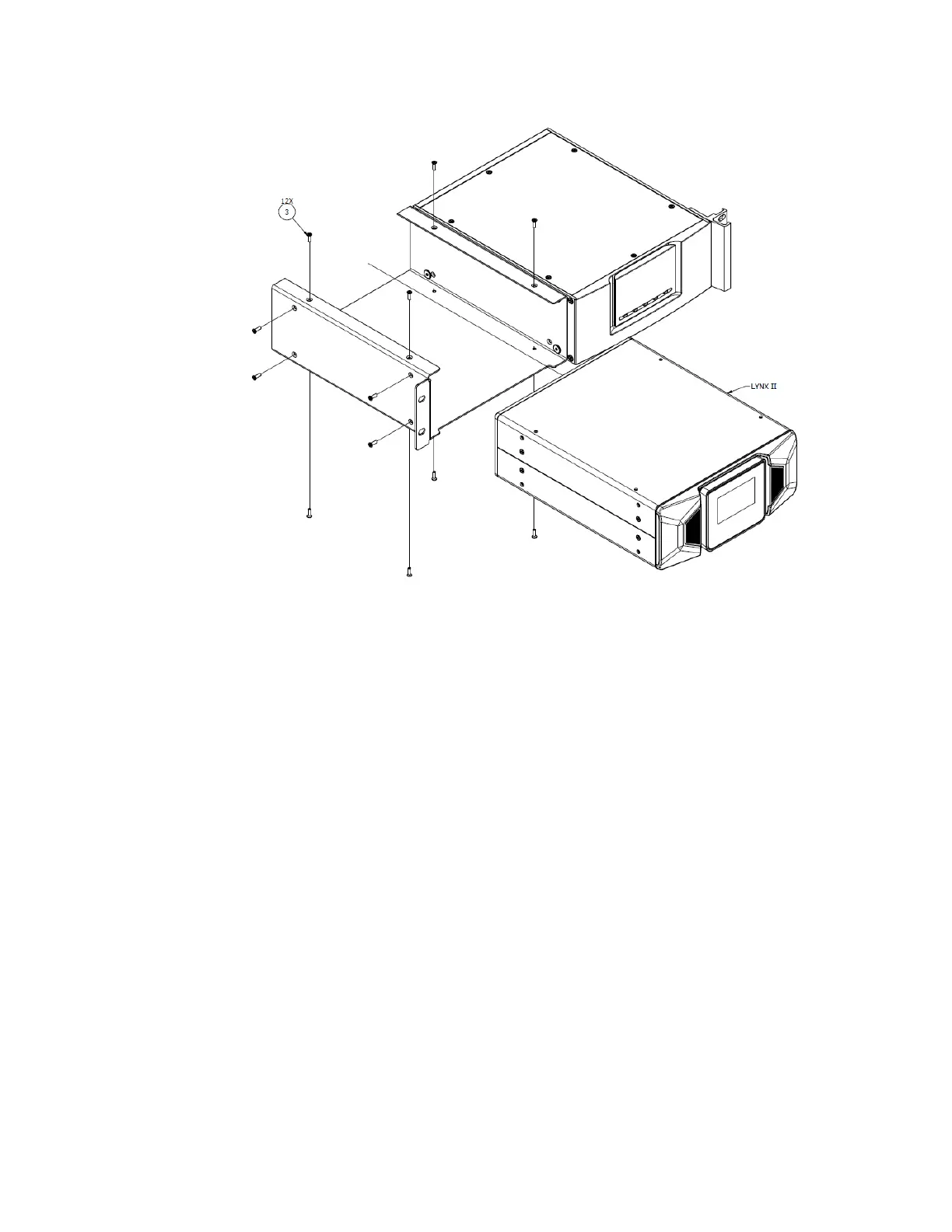

Figure 90: Illustration for Step 2
After the components are assembled, the rack should be sturdy and without flexing or
movement.
• Install the joined components in any 2U (3.5 inch) opening into the front of your
equipment rack, using your rack's mounting screws.
Finally, connect the power, network, and Acquisition device cables as usual.
