Chapter 4 System Setup
44 Lynx II DSA User's Manual - 7096089
Step 7 - Summary
The Summary screen displays a summary of the current MCA's configuration for review
and lets you enter the name of the MID file that which the configuration is to be saved.

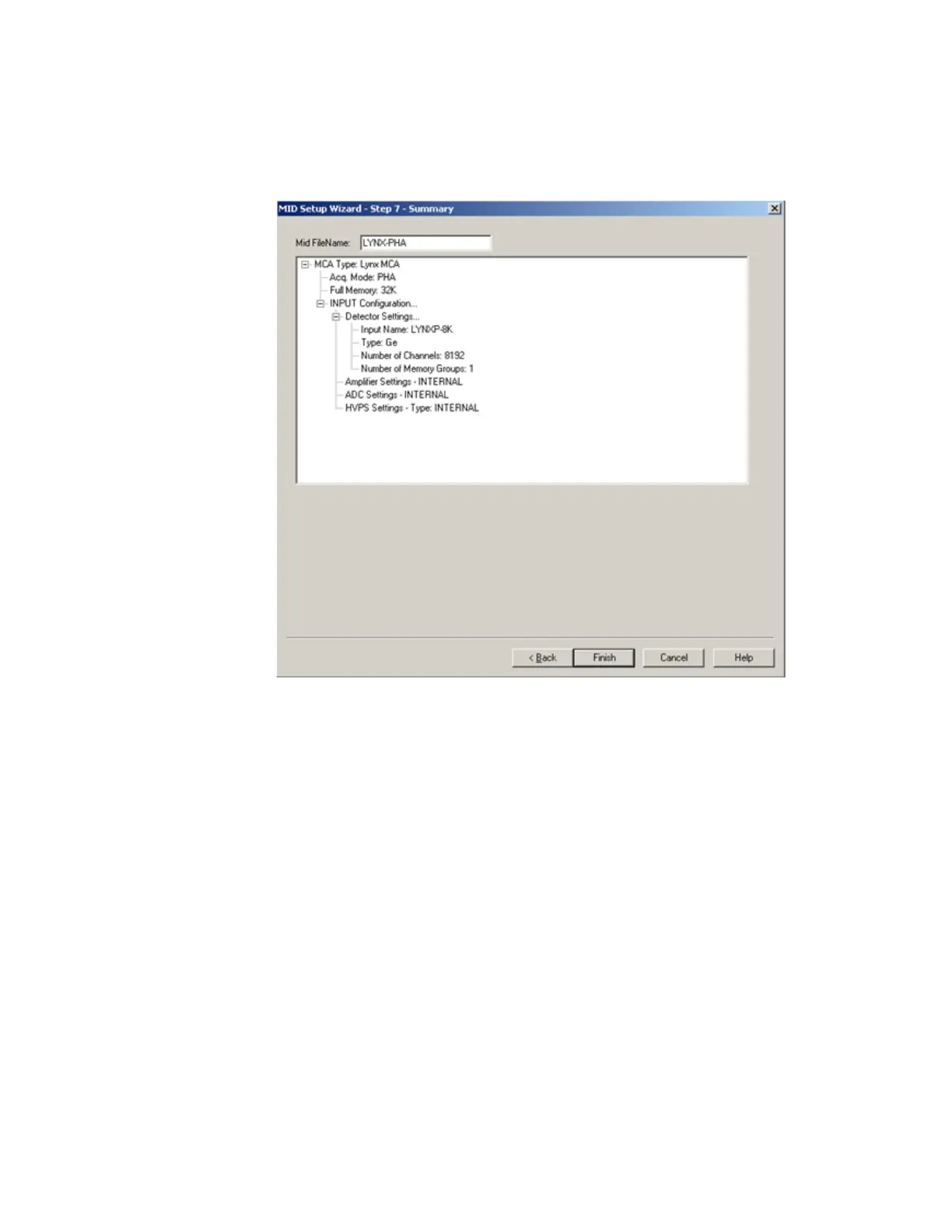

Figure 21 Summary of the Configuration
Ending the Definition
To complete your Input Definition, select Finish. The input that you just defined will be
stored as a MID file named inputname.MID and is automatically loaded into the MCA
Runtime Configuration Database. When you select Finish, you will be asked if you
would like to define another input. Answering “Yes” will start the Wizard again and “No”
will close the Wizard.
Note that if you didn’t enter an Input Name, you won’t be allowed to exit the Step 3
screen. If the name you entered is the same as the name of an existing MID file, the
system informs you and goes back to Step 3 to let you enter another name.
The Step 7 Mid File Name defaults to UNTITLED, which you’ll probably want to change
to something more meaningful. If the name you enter is the same as that of an existing
MID file, the system will ask if you want to overwrite the existing file.
