Appendix 1 External Dimensions

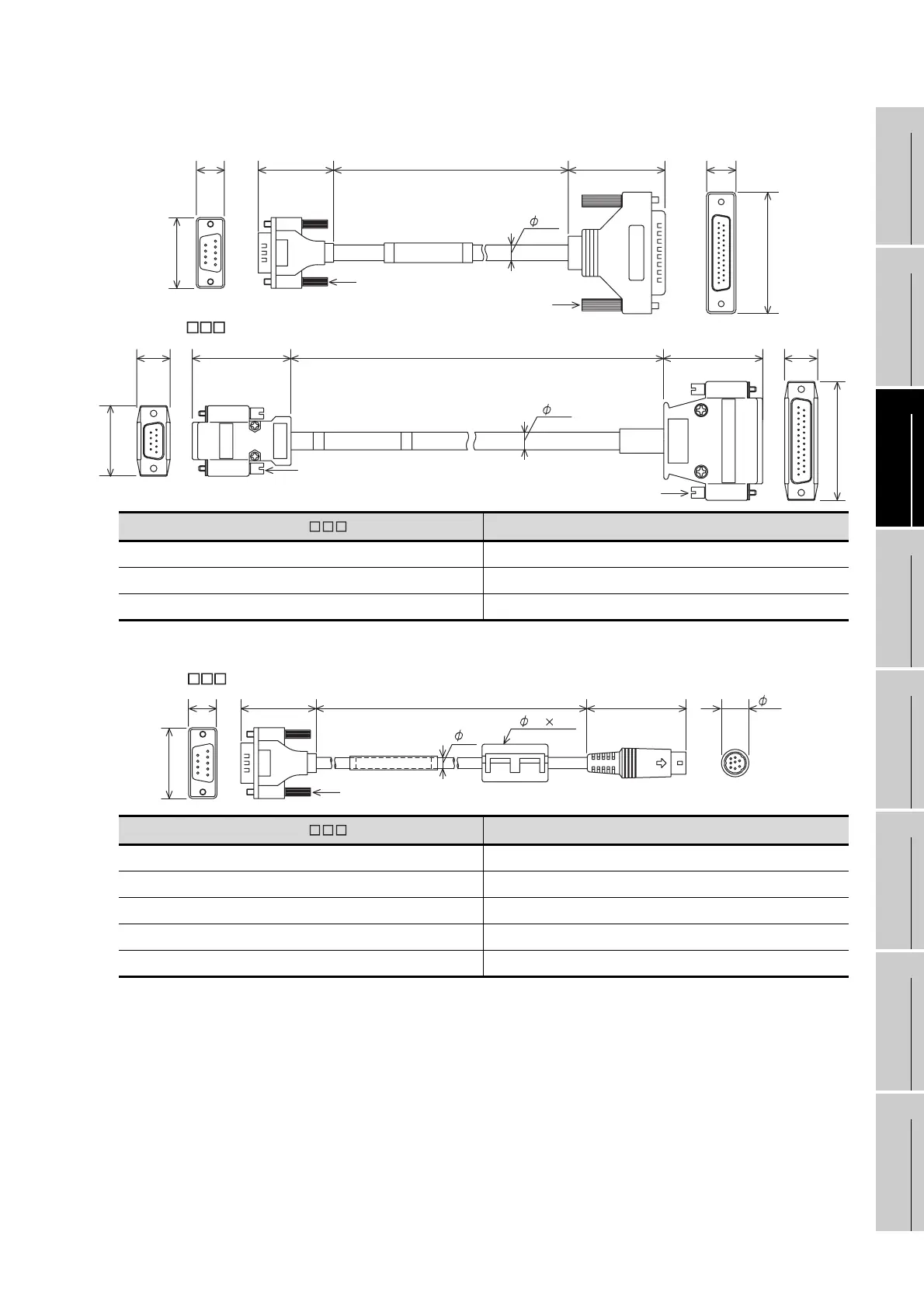

External dimensions of communication cable
Value of
Length L mm (inch)
100 10000 (393.7")
200 20000 (787.4")
300 30000 (1181.1")
Value of
Length L mm (inch)
10 1000 (39.37")
30 3000 (118.11")
100 10000 (393.7")
200 20000 (787.4")
300 30000 (1181.1")
30000(1181.1")
7
(0.28")
50(1.97") 53(2.09")
55(2.17")
16
(0.63")
16
(0.63")
35(1.38")
M2.6
M2.6
16
(0.63")
16
(0.63")
50(1.97") 53(2.09")
55(2.17")
35(1.38")
7
(0.28")
L
M2.6
M2.6
GT01-C30R4-25P
GT01-C R4-25P
Unit: mm (inch)
50(1.97")
16
(0.63")
35(1.38")
13
(0.52")
6
(0.24")
L 40(1.58")
25 33
(0.99") (1.3")
M2.6
GT01-C R4-8P

Mitsubishi GOT1000 GT11 Specifications

General

Power Supply	24V DC
Operating Temperature	0 to 50°C
Storage Temperature	-20 to 60°C
Screen Size	5.7 inches
Resolution	320 x 240 pixels
Communication Interface	RS-422/485, USB
Memory	Internal flash memory
CPU	RISC
Touch Panel	Analog Resistive
