Opening and closing the gate on a combination
of both time and position

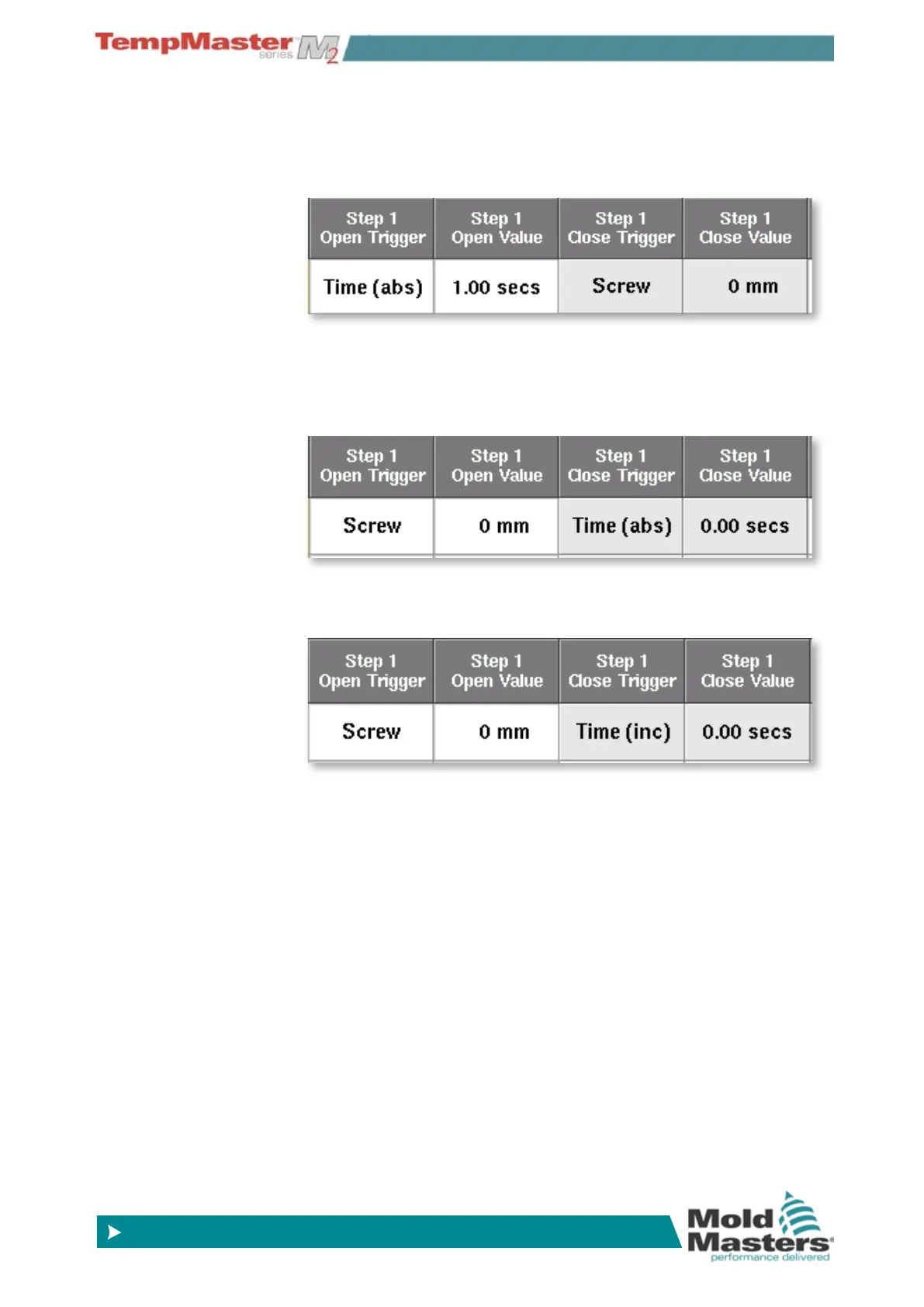

Open the valve on an absolute time (relative to the start of cycle)
and close it on screw position.
Open the valve on position of the screw and close it on an abso-
lute time (relative to the start of cycle)
Open the valve on screw position and close it on an incremental
time (relative to the when the valve was opened)
Note:
“Time (abs)” = time absolute (Time is relative to the start of cycle
start input)
“Time (inc)” = time incremental (Time is relative to the when the
valve was opened)
