External Wiring Connections
Outputs
There is one HAN24E Female connectors for every twelve zones.

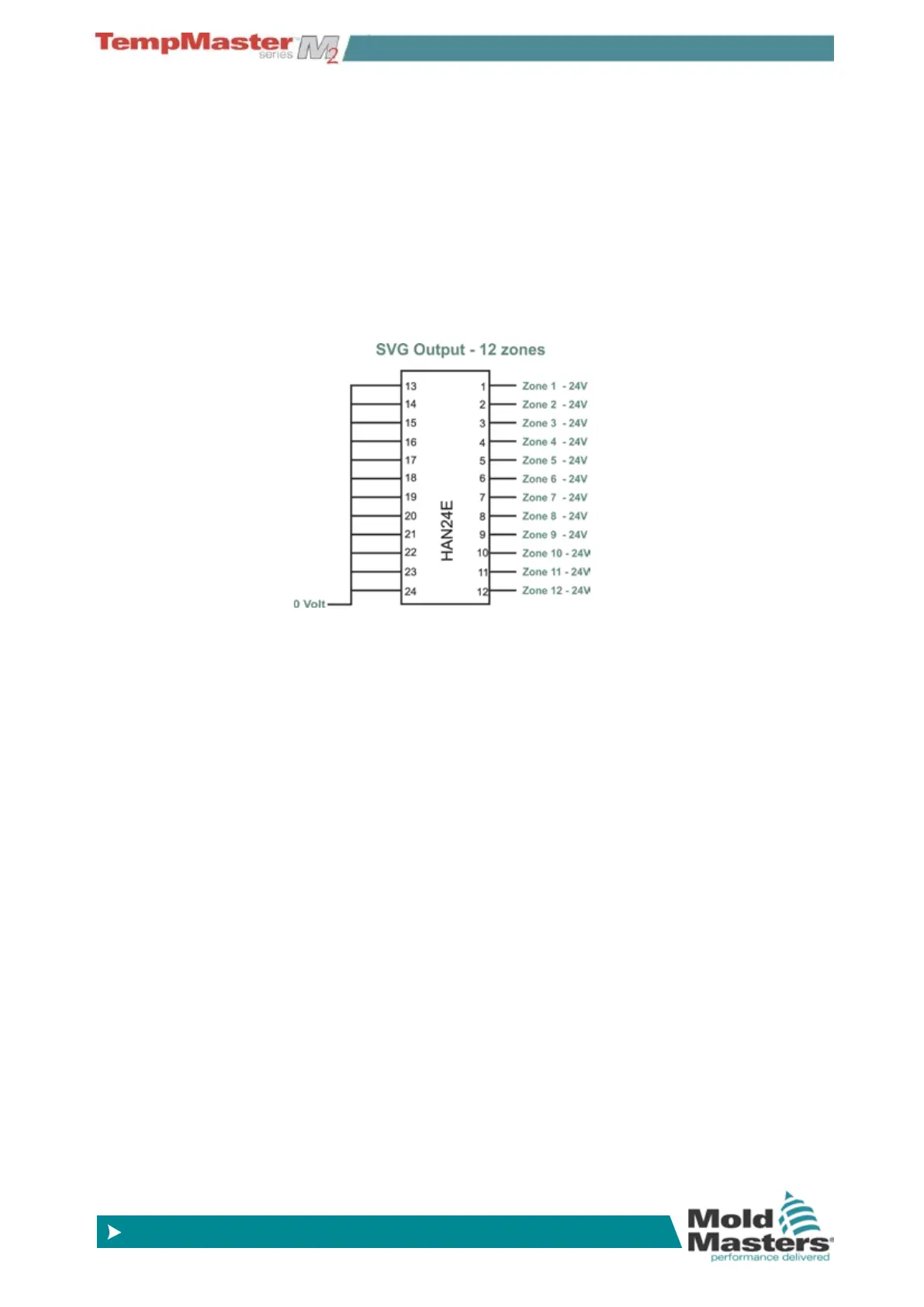

The appendix shows a typical connection diagram for an SVG 24. For
each pair the higher numbered pin is at ground the lowered numbered
side will energise at 24V dc when the Controller calls for that valve to
open.
Output Rating
Each output is rated at 5A 24V DC
